- 13 -
6. Run workpiece through the machine using the handles. If workpiece is
large, make sure it receives proper support as it exits the machine.
7. Make further passes of workpiece, raising the idle roll incrementally
before each pass, until desired radius is achieved. No exact formula can be
followed when making roll adjustments because material “spring-back”
varies with the kind of material being formed. Only by test forming several
pieces can correct adjustments be obtained. Also, keep in mind that it is
much easier to re-pass material to make a smaller radius than to attempt to
increase a radius that was made too small.
The idle roll must be adjusted exactly parallel or the material will spiral
during the rolling process. Measure each end of the opening with calipers if
greater precision is required.
Deliberately setting the rolls non-parallel can be used to make cone
shapes.
To remove cylindrical shaped workpieces:
1. Loosen bolt (R, Figure 12)

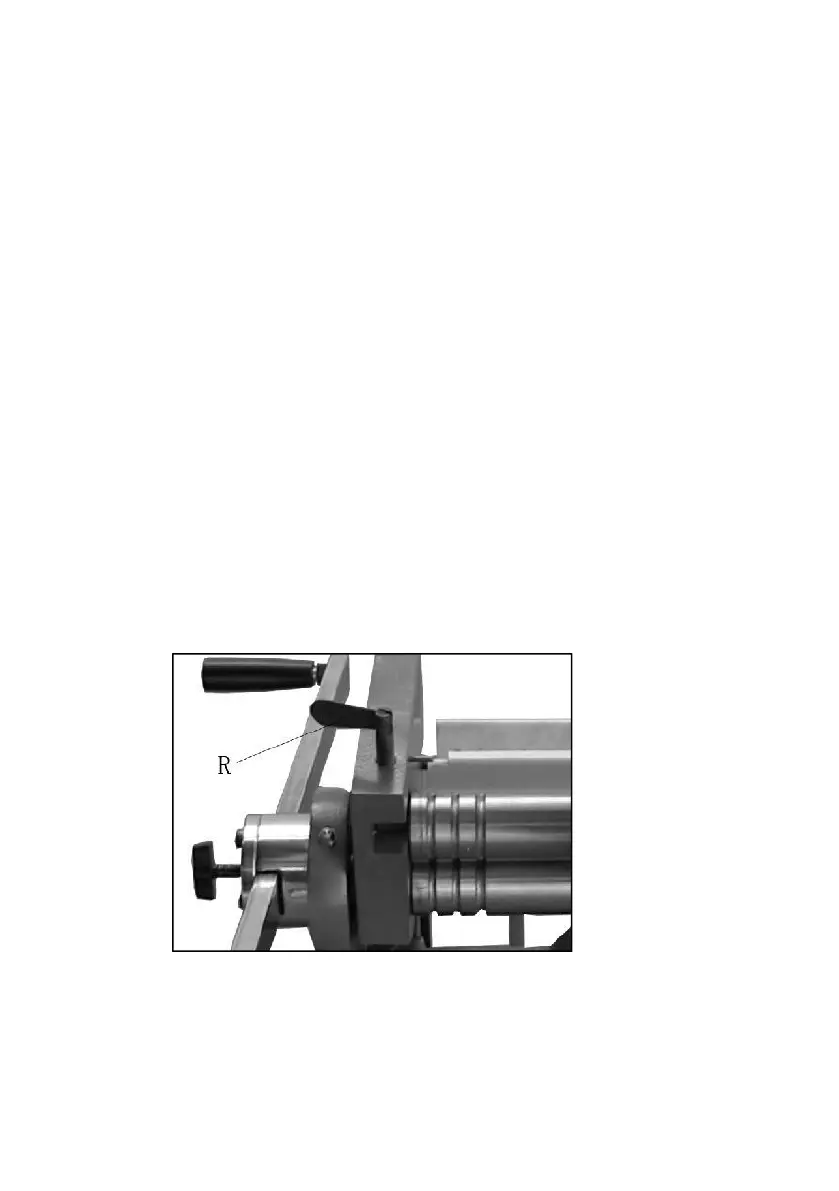

Figure 12
2. Carefully grasp upper roll and swing out the end. Grasp upper roll firmly,
to prevent it falling out of machine.
3. Slip workpiece off end of roll.
4. Re install upper roll, and tighten bolt (R, Figure 12).
