- 11 -
2. Raise upper blade to highest position.
3. Remove 4 screws (P, Figure 10) and carefully remove blade.
4. Rotate or replace blade and re-install screws (P).
5. Re install hold-down. When blade is in highest position, the gap
between the hold-down and the table should be within1/4. Adjust to this
position by turning the wo screws (O, Figure 10) as needed. When the
blade starts its downward travel,the hold-down should immediately hold
workpiece in place.

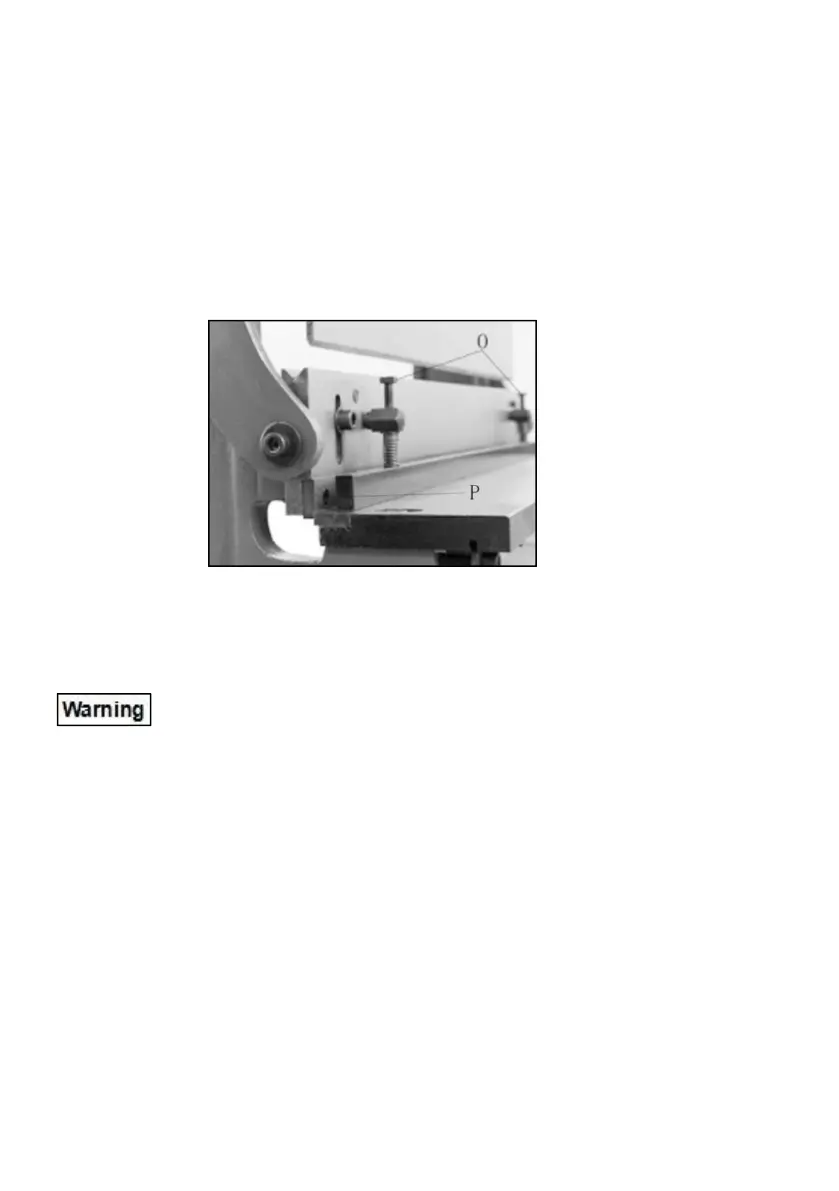

Figure 10
Slip Roll set-up
Do not roll material larger than 12” 20-gauge mild steel. The
slip roll guard must cover the rolls except when material is being fed
into the rolls. Failure to comply may cause serious injury and/or
damage to the machine.
Material Size Conside rations
To determine approximate length of material needed for a desired size tube,
use the following formula :
C =πD
Where C is the circumference, π equals3.1417 and D is the diameter. For
example: To find the length of material needed (C) to form a tube 4" in
diameter, multiply 3.1417 by 4". Result:12.5667" is the circumference of
