- 9 -
The end of workpiece should be against guide plate.
3. Operate handle to begin shearing cut. Shearing action progresses from
right to left.
NOTE: 1. To prevent distortion when notching, “snap” the handle to
facilitate piercing.
2. Do not reach behind the machine to catch the cut-off piece. A large
cut-offpiece should be allowed to drop onto a special table designed to
catch pieces that are bigger than the workbench.
3. Large pieces being cut may require a front table to support the piece.
4. All metal cut on this machine will have a sharp edge. File or sand the
sharp edge before handling to avoid injury.

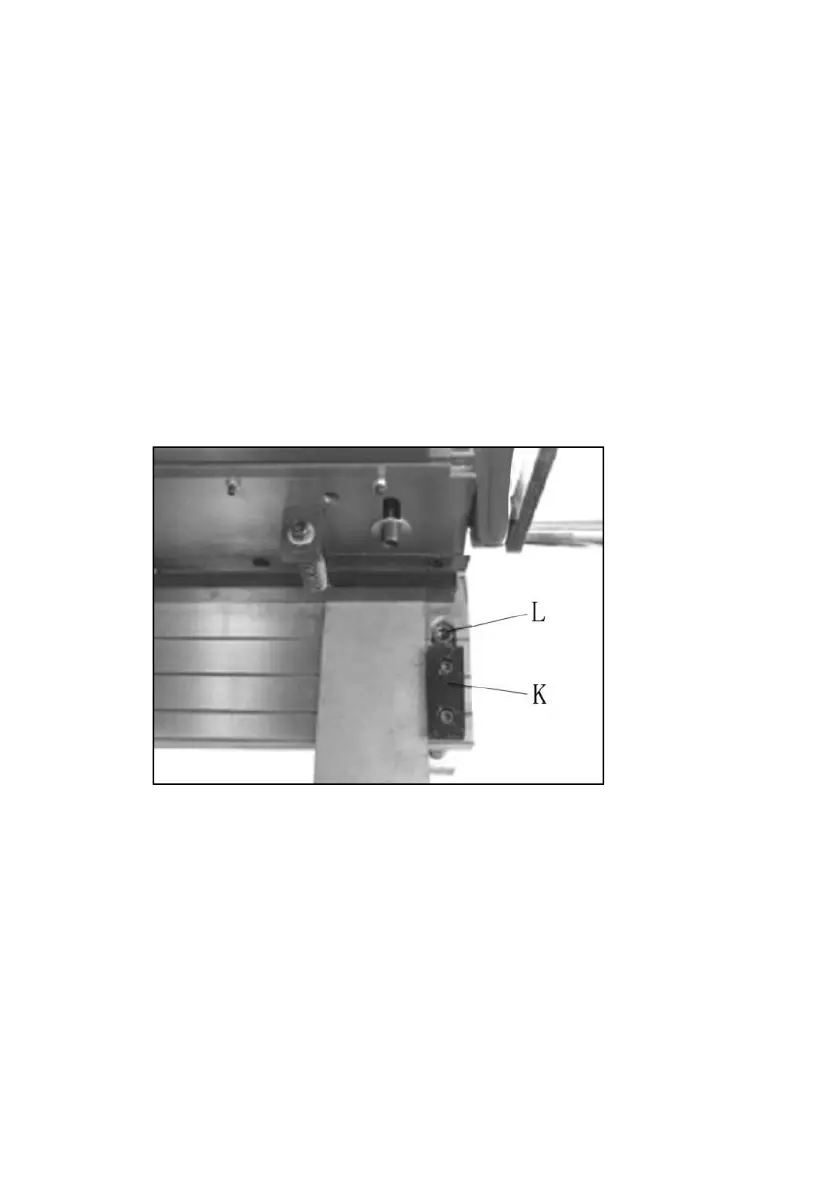

Figure 7
Lower Blade Adjustment
Upper and lower shear blades have been factory aligned and should not
require immediate adjustment. Should re-alignment be needed in the
future, proceed as follows:
1. Place a heavy sheet of paper in the cutting position, along entire length
of bed, and make a cut.
2. If the shear does not cut the paper,loosen screw (L, Figure 7) at each
end of table, with 6mm hex key.
