- 8 -
through trial and error, or by consulting a machinist’s handbook.)
9. Rest workpiece on v-block (lower die)so that the scribed line is aligned
with the tips of upper die(s).
10. Hold workpiece steady and use operating handle to make bend.
To adjust brake beam (G, Figure 6) for90° bends at bottom of stroke:
1. Slightly loosen locking screws (H)using 6mm hex key.
2. Turn brake beam adjusting screws (G)with 16mm wrench, until test
bend sreflect 90° bend at both ends of brake.
3. Re-tighten screws (H).

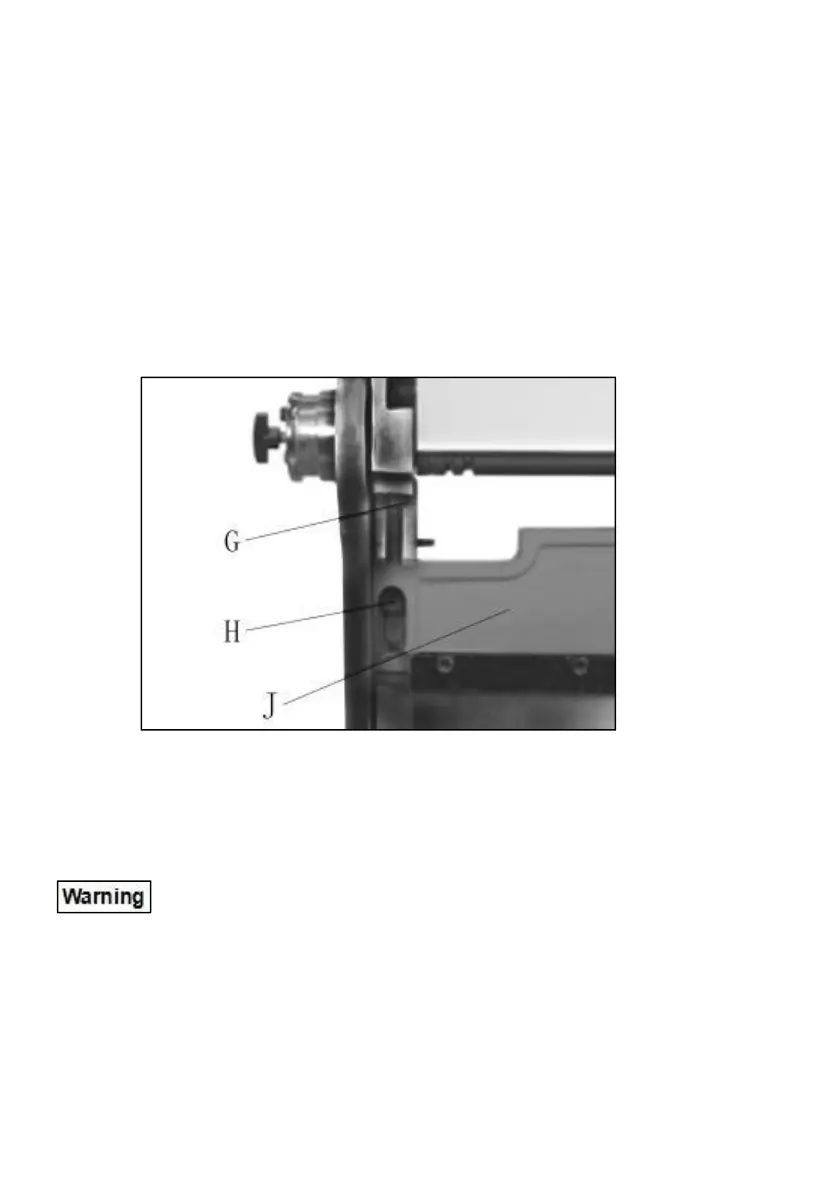

Figure 6
For special repetitive bends, the brake beam may be adjusted to over-bend
the desired angle since the metal will have some degree of “spring back”.
Shear set-up
Do not shear material larger than 12” 20 gauge mild steel.
Failure to comply may cause serious injury and/or damage to the
machine.
1. Install guide rods and plate in shear position (Figure 4) and adjust to
desired length of workpiece cut.
2. Place workpiece against guide block atright edge of table (K, Figure 7).
