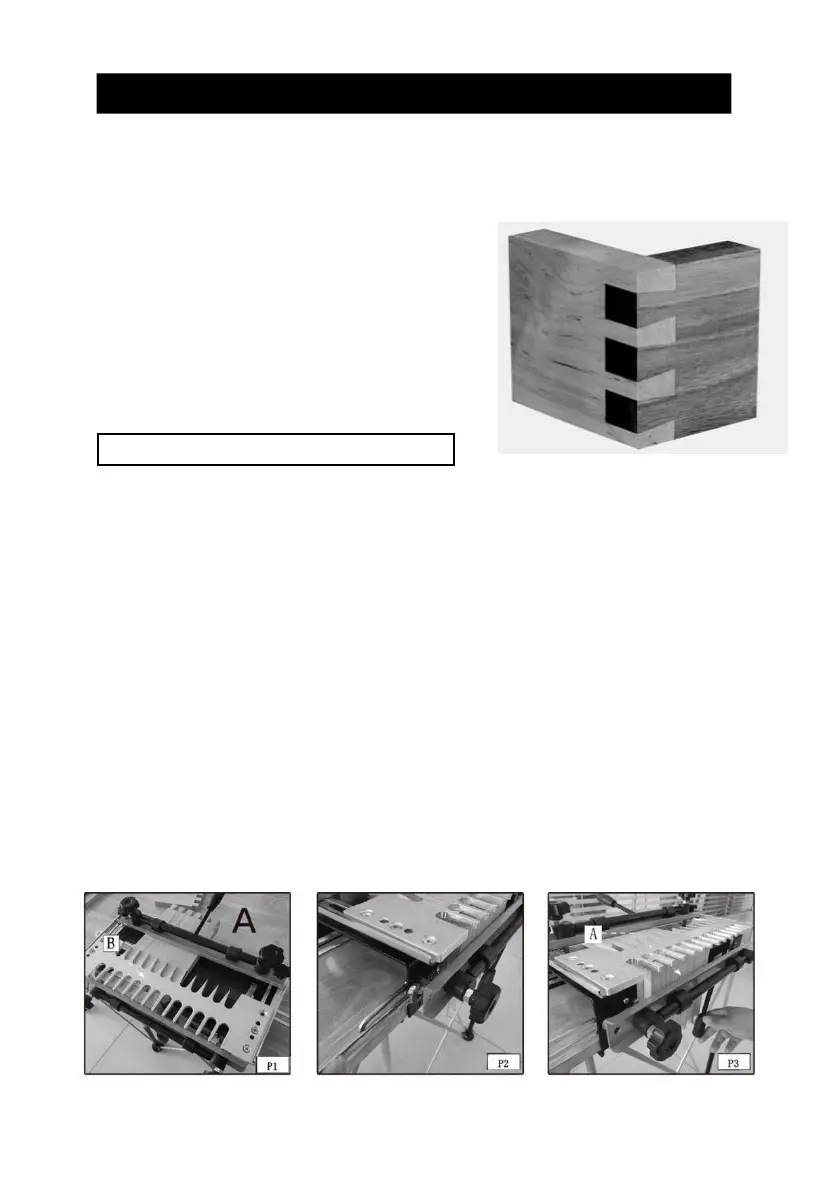

BASIC JOINTS
THROUGH DOVETAILS
The through dovetail has a look that is visually appealing, especially in
boxes and chests.
NOTE: For through dovetails, use
the 28104-3 accessory kit.
Cut both the pins and tails in the vertical
position. Cut the tails first.
Use two routers (if possible) - one for the
pins and the other for the tails - to make
the process quicker and easier.
● Through Dovetail and Box Joint Template
● 1/2"*1 3 . 5 * 7° Dovetail Bit
● 1/2"*1 0 . 3 * 1” Straight Bit,
● 3/4" O.D. Template Guide, (with dovetail bit)
● 5/8" O.D. Template Guide, (with straight bit)
● Template Guide Lock Nut,
CUTTING THE TAILS
Step 1 -
Clamp a spacer board (A) Fig. P1 (equal to the thickness of
your pinboard) in the upper clamp. Mount the through
dovetail template (B) on the base with the “tails” side facing
you.
Step 2 - Move the offset guide (A) Fig. P2 to the far left.
Step 3- Clamp the tailboard (A) Fig. P3 in the lower clamp with the
outside surface of the board facing the jig.
(See the section “POSITIONING THE WOOD” in this
manual.)
ITEMS NEEDED
