Rev. 3/26/2014 SCTAB, manual.doc
Copyright 2014 Vestil Manufacturing Co.
Page 4 of 14
Item no. Part no. Description Quantity
1 01-514-021 Frame weldment assembly 1
2 01-510-016 Leg weldment assembly, inner 1
3 01-527-002 Roller assembly, 2
1
/
4
in. -
1
/
2
in. 4
4 01-113001 Spacer/shim (machinery bushing) 24
5 68015
3
/
4
in. external retaining ring 14
6 01-112-009 Pin, hinge pivot 4
7 01-510-017 Leg weldment assembly, outer 1
8 01-513-007 Deck weldment assembly, 20in. x 33in. 1
9 01-112-013 Pin, axle 2
10 64134 Spring pin 2
11 33426 Machinery bushing
3
/
4
in. x 10ga. 8
12 01-021-010 Cylinder, hydraulic displacement, 1
1
/
2
in. diameter, 7in. stroke 1
13 01-112-017 Pin, hinge pivot 1
14 01-118-002 Bolt, cylinder retaining 1
15 36209
1
/
2
in. – 13 hex jam nut plain 1
16 99-140-001 2-speed autoshifter hydraulic foot pump 1
17 01-511-002 Weldment assembly, cylinder swivel bracket 2
18 34308 Split shaft collar 2

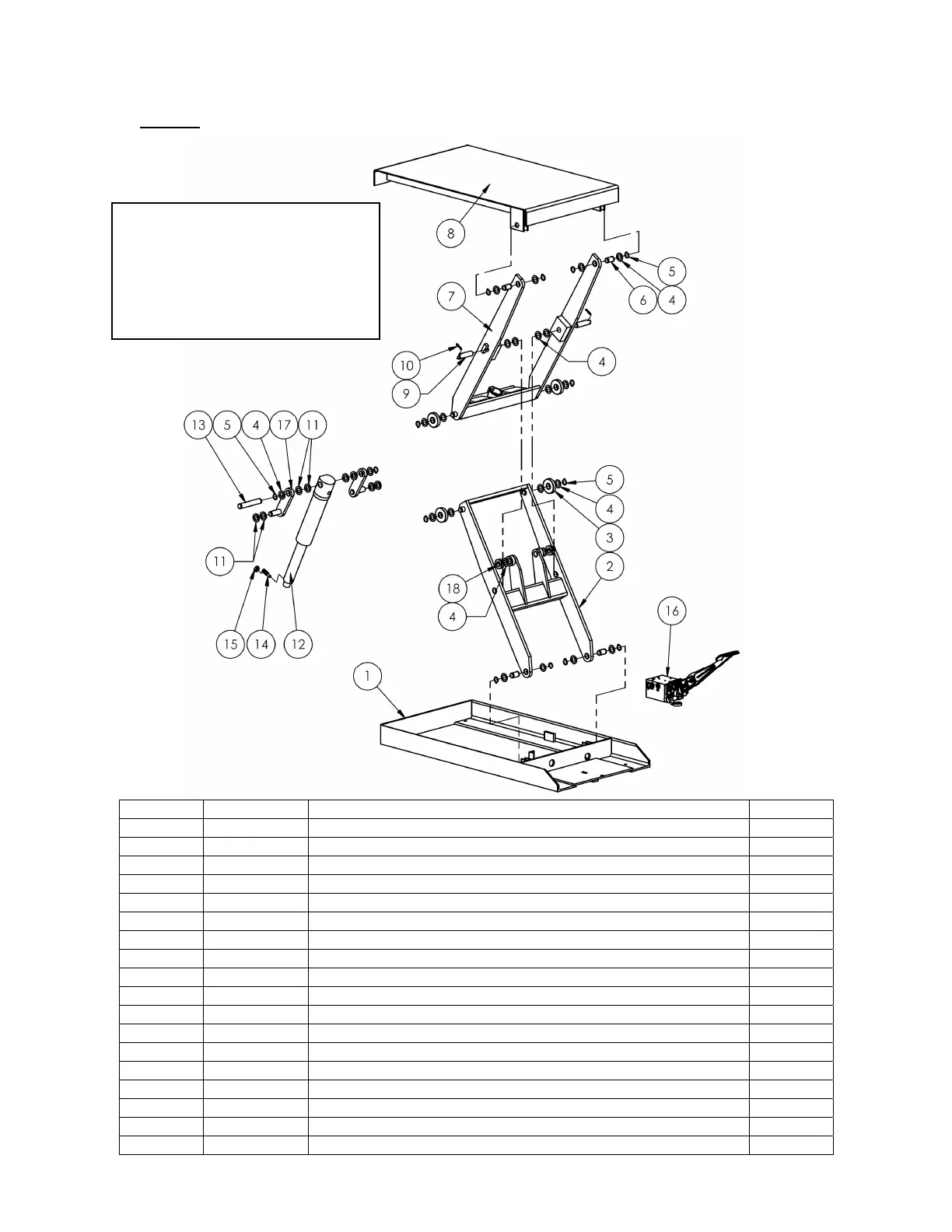

FIG. 1: SCTAB-500 Exploded Parts Diagram & Bill of Materials
To order the following parts kits
listed below, refer to the eight digit
part number:
1) 99-136-006: Cylinder seal kit
(complete set of replacement
seals for hydraulic cylinder)
2) 99-136-013: Foot pump seal kit
