Rev. 7/8/2016 PS-4045, MANUAL.doc
Copyright 2016 Vestil Manufacturing Co. Page 4 of 8
Height Adjustment:
PS-4045 series pallet stands can be adjusted
between 4 configurations: 1) fully lowered (for
storage only); 2) Low height setting; 3)
Intermediate height setting; and 4) Maximum
height setting. To adjust the height of the
tabletop, grab the red handle grip and pivot the
handle until it is perpendicular to the frame. While
continuing to hold the handle, lift the tabletop.
Use the handle to adjust the position of the
scissor legs as necessary; then lower the
tabletop. There are triangular notches in the tops
of the free legs. The selected adjustment cross
bars must seat into the notches in the free legs.
When the adjustment is finished, rotate the
handle until it lies against the frame (as shown in
photo).
To put the stand into the fully lowered/storage
configuration, hold the handle and lift the tabletop. Use
the handle to lower the legs to the base frame.
Loading & Unloading Instructions:
Before applying a palletized load to the stand, make sure that the load is
centered on the pallet. Gently apply the pallet to the top of the stand. Center
the pallet on the top of the stand. Neither the pallet nor the load should
overhang the top of the stand.
Be cautious whenever removing a loaded pallet from the stand. Insert the forks
of your lift truck through the pallet and slowly raise them. Continue to raise the
forks until the top of the stand is several inches below the bottom of the pallet
before backing away from the table.

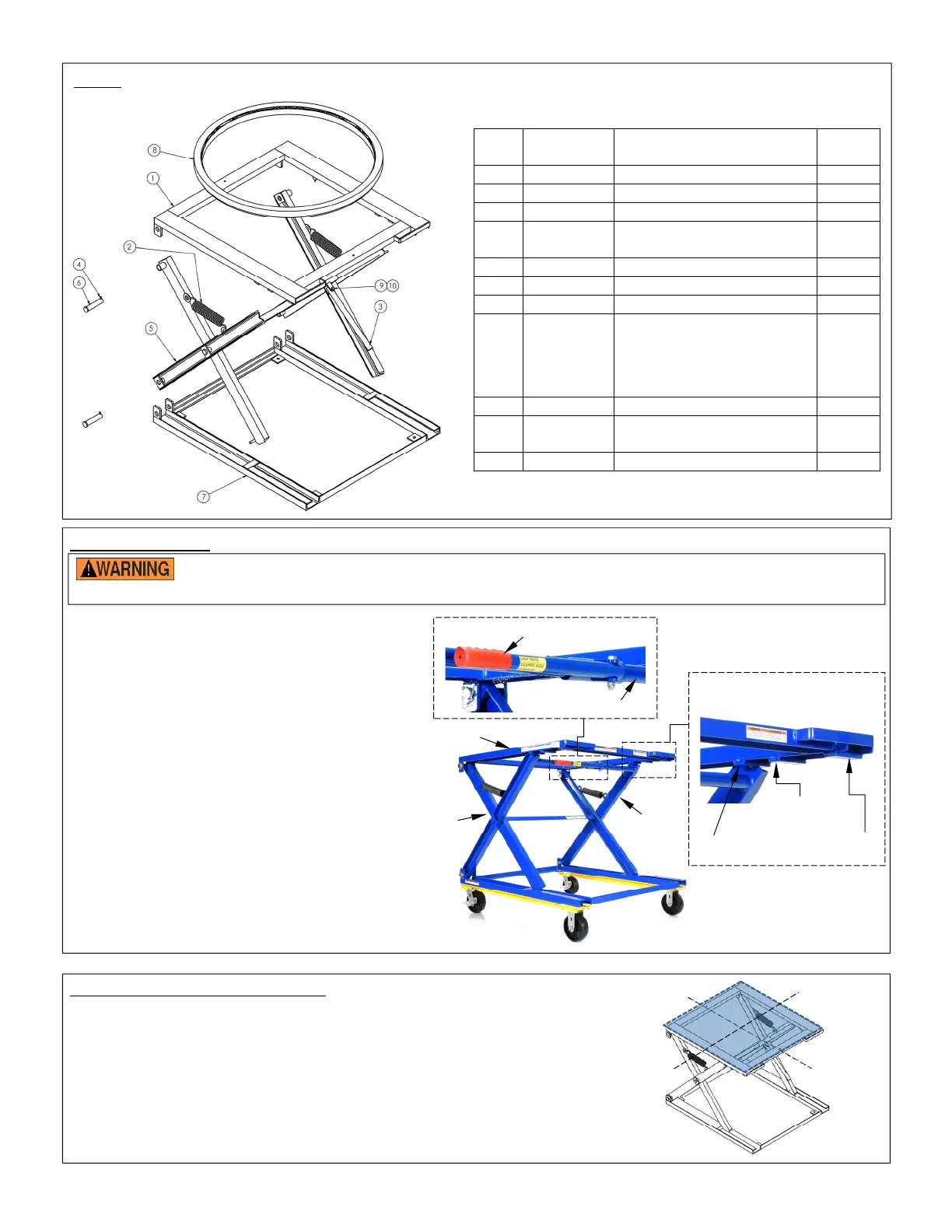

FIG. 2: PS-4045-CA exploded parts diagram and bill of materials
Item
no. Part no. Description Quantity
1 15-514-011
Frame, tabletop assembly 1
2 15-146-001
Spring 2
3 15-025-002
Handle, height adjustment 1
4 65078 Extended prong cotter pin,
zinc finish,
1
/
8
” x 1
1
/
2
”
4
5 15-510-009
Scissor legs, subassembly 1
6 33-112-023
Pin, axle 4
7 15-514-012
Frame, base assembly 1
8 20-001-015
20-514-015
20-013-022
20-110-006
68083
Carousel, assembly:
a. Weldment, inner ring
b. Deck, outer retaining ring
c. Roller bearing
d. E-clip, steel, for
5
/
8
” shaft
1
1
1
1
1
9 11112
3
/
8
” – 16 x 2
1
/
4
” HHCS bolt 1
10 37024
3
/
8
” – 16 grade 2 zinc finish
lock nut
1
11 15-113-002
Spacer 4
Centerline of
length
Centerline of
width
Scissor
legs
Tabletop
Free
leg
Crossbars are welded to
underside of tabletop
Maximum height
setting
Intermediate
height setting
Low height
setting
Frame
Handle
DO NOT attempt to adjust the height of the tabl
etop while the stand is loaded. Always completely
unload the stand before adjusting the height.
