Rev. 7/8/2016 PS-4045, MANUAL.doc
Copyright 2016 Vestil Manufacturing Co. Page 3 of 8
Safe Use Recommendations:
We strive to identify all hazards associated with the use of our products. However, material handling is dangerous and
no manual can address every risk. The end-user ultimately is responsible for exercising sound judgment at all times.
Improper or careless operation of this table might result in serious personal injuries.
Failure to read and understand the entire manual before assembling, using or servicing the product
constitutes misuse. Read the manual whenever necessary to refresh your understanding of proper use and
maintenance procedures.
DO NOT install the stand outdoors or in corrosive environments. ONLY install this product on compacted,
improved surfaces (e.g. concrete) that are level and even. The surface must be capable of easily supporting the
combined weight of the stand and a full capacity load.
DO NOT use the stand unless it is in normal operating condition. Inspect the unit as described in the inspection
instructions on p. 6. DO NOT use the stand unless it passes every part of the appropriate inspection or until it is
restored to normal operating condition.
DO NOT use the pallet stand to lift people.
DO NOT stand on or climb onto the stand.
Always watch the stand carefully while applying a load to it.
Avoid pinch points. Pinch points are created as the table rises and lowers do to the pivoting motion of the scissor
legs. NEVER reach into or put any part of your body between the scissor legs.
Always properly load the stand (see p. 4). Center and evenly distribute all loads applied to it. The top of the stand
should not move as weight is applied to it. Watch for movement and listen for unusual noises. Remove the unit from
service if you observe anything abnormal.
DO NOT apply loads to this table on broken or damaged pallets. Examine each pallet before applying it to the
stand to confirm that no nails protrude from the surfaces and that all boards are intact. A damaged/broken pallet might
break while it is elevated on the stand. A damaged pallet could interfere with carousel rotation (stand model PS-4045-
CA). A sudden stop while rotating the tabletop could cause the load to shift or fall.
To remove a load from the stand, lift it enough that it clearly is no longer in contact with the top of the stand before
backing away from the table.
(Pallet stands equipped with caster kit option) If the stand must be moved, completely unload it first. Always lock
both caster locks (see FIG. 3 on p. 5) whenever the stand is loaded or in storage.
DO NOT leave loads applied to the stand for long periods of time.
DO NOT use this stand UNLESS all labels are in place & readable (see “Labeling diagram” on p. 7.)
DO NOT modify this product in any way without first receiving express, written authorization from Vestil. Modifying
the unit without authorization automatically voids the limited warranty (see p. 8) and might make it unsafe to use.
If repairs are necessary, ONLY install manufacturer-approved replacement parts.
Proper use and maintenance are essential for this product to function properly.
Always use this product in accordance with the instructions in this manual.
Periodically lubricate moving parts and pivot points.
Keep the product clean & dry at all times.
Only use approved replacement parts. To order replacement/spare parts for this device, contact the factory.

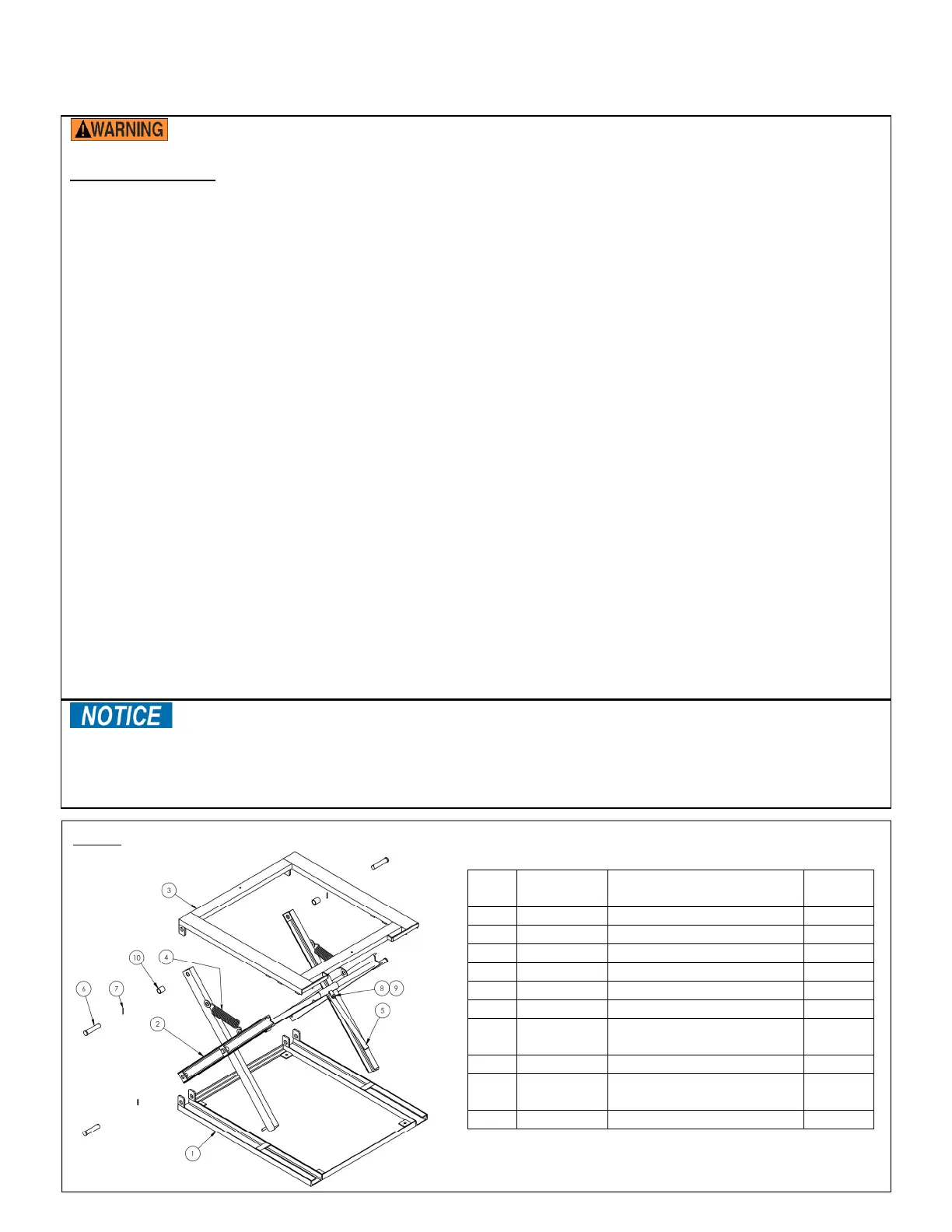

FIG. 1: PS-4045 exploded parts diagram and bill of materials
Item
no. Part no. Description Quantity
1 15-514-012
Frame, base assembly 1
2 15-510-009
Scissor legs, subassembly 1
3 15-514-011
Frame, tabletop assembly 1
4 15-146-001
Spring 2
5 15-025-002
Handle, height adjustment 1
6 33-112-023
Pin, axle 4
7 65078 Extended prong cotter pin,
zinc finish,
1
/
8
” x 1
1
/
2
”
4
8 11112
3
/
8
” – 16 x 2
1
/
4
” HHCS bolt 1
9 37024
3
/
8
” – 16 grade 2 zinc finish
lock nut
1
10 15-113-002
Spacer 4
