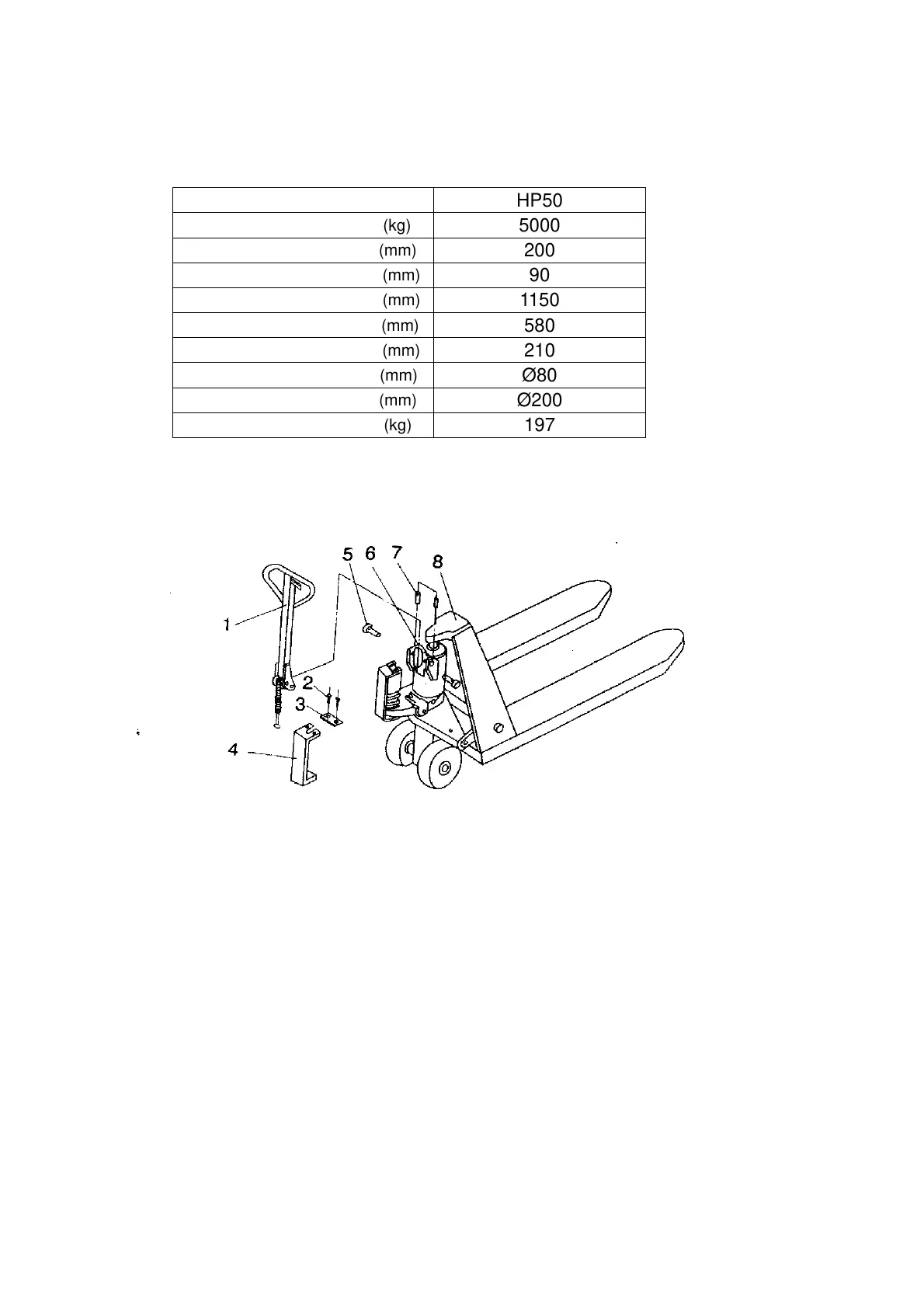

1. GENERAL SPECIFICATIONS
Model
HP50
Capacity (kg)
5000
Max. Fork Height (mm)
200
Min. Fork Height (mm)
90
Fork Length (mm)
1150
Width Overall Forks (mm)
580
Individual Fork Width (mm)
210
Load Wheel Diameter (mm)
Ø80
Steering Wheel Diameter (mm)
Ø200
Net Weight (kg)
197
2. TO ATTACH HANDLE TO PUMP UNIT
1. Handle assembly 2. Screw 3.Iron sheet 4.C-type clip
5. Pin 6. Bracket 7. Spring pin 8. Pump unit and Frame
2.1 Take out two pins (5) and two spring pins (7) from the plastic bag wrapping on
the handle assembly (1).
2.2 Undo two screws (2) and iron sheets (3) on C-type clip (4).
2.3 Insert down end of handle assembly (1) into the bracket (6), please note: Feed the rod
and chain (H802) through the center of bracket (6).
2.4 Install the two pins (5) to connect the handle assembly (1) and bracket (6).
2.5 Install the two spring pins (7).
2.6 Press down the handle assembly (1) and take out C-type clip.
2.7 Loosen the setting screw (140H) on the crank link (5010).
2.8 Raise the crank link (5010) and put the pin on rod and chain (H802) into the groove of
crank link (5010).
Page 4 of 14
PM10, Manual.doc
PM10, Manual.doc
PM10-2245
10,000 lbs
7.875"
3.5"
45.25"
22.83"
8.25"
Ø3.15"x2.7"
Ø7.9x2"
435 lbs
