Table of Contents Rev. 8/15/2023 LLPH MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 18 of 29
USING THE LIFTER
This product is a manually-propelled high lift truck of the sort describes in American national standard
ANSI/ITSDF B56.10 (“B56.10” or the “Standard”). Vestil recommends that the owner of this product acquire a
copy of the latest revision of B56.10, which is available at no cost through the ITSDF website (www.itsdf.org).
The copy, along with this manual, should be available to all persons who use this product. Instructions in this
manual are meant to complement the information provided in Part II – For the User of the Standard.
ONLY use this device after completing the operator training program in B56.10, sections 4.17 and 4.18.1-.4.
Develop safe working habits and an awareness of hazardous conditions occurring or present during
operation of the lifter.
Inspect the area where the lifter will be used before each use to identify unusual operating conditions.
Implement additional safety precautions as conditions require. Conditions might include:
1. Irregularities in the floor/surface;
2. Debris or other obstructions on the floor/surface;
3. Unsound surfaces or surfaces that cannot support your weight plus the weight of the lifter and load.
Perform the following function test before each use:
1. Raise and lower the deck and confirm normal operating condition of the lift mechanisms.
2. Test the casters/wheels: wheels should roll smoothly, should not be severely worn, and should be
rigidly fastened to the frame of the lifter.
Inspect the lifter as recommended in the INSPECTIONS & MAINTENANCE section of this manual (p. 20).
Use the lifter only if it is in SATISFACTORY CONDITION.

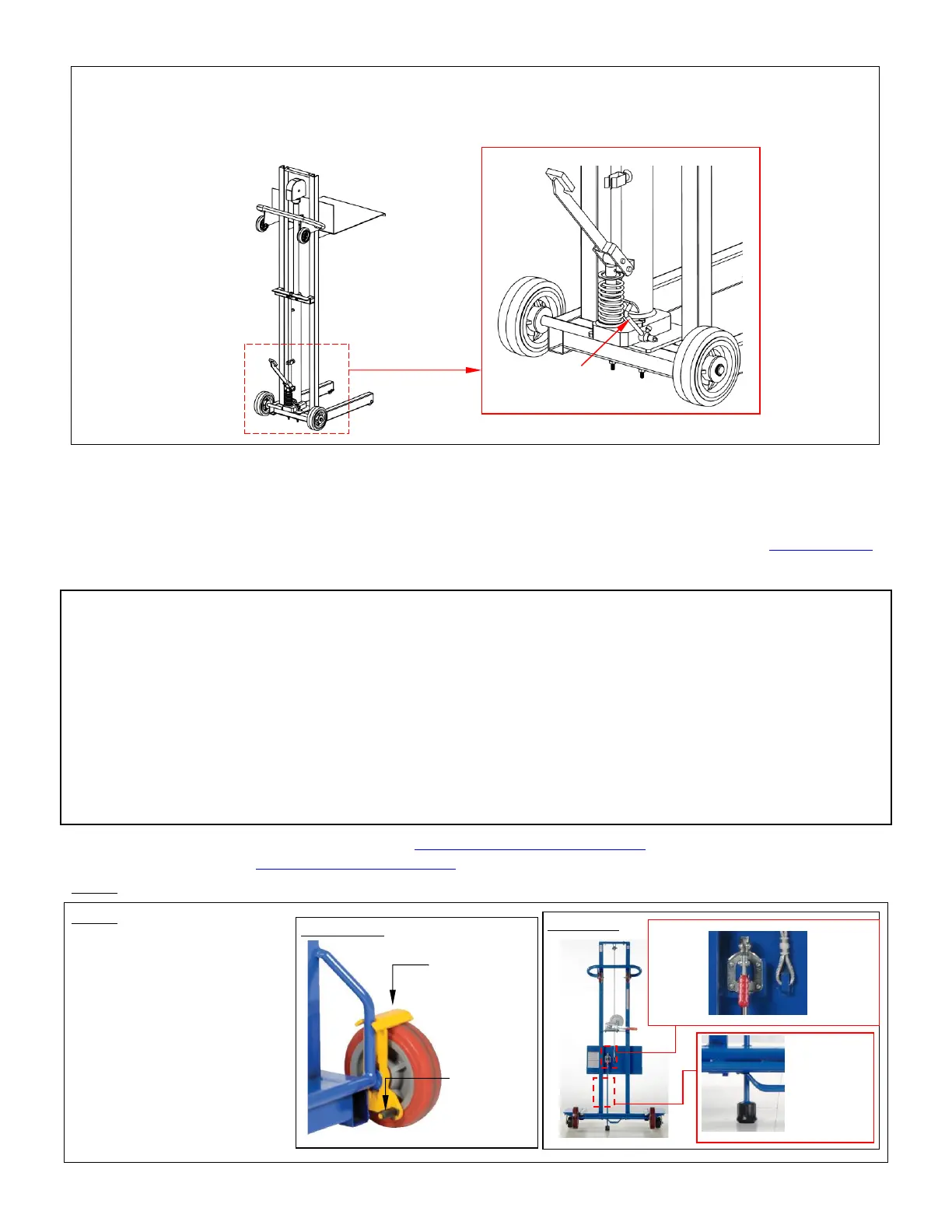

UStep 1: Grasp the handle with both hands. Walk behind the lifter. Keep feet away from the wheels.
UStep 2U : Move the lifter to
load. If the lifter is
equipped with either a
floor lock or a wheel
lock, engage the locking
device.
Wheel lock
Floor lock
Press brake
plate down
onto wheel to
engage brake
To disengage
brake, lift up
on release
tab
Press red
handle
down to
engage
floor lock
Lift red
handle to
vertical
position to
disengage
floor lock
When
locked, the
rubber boot
presses
firmly
against the
ground.
RAISING AND LOWERING THE DECK
To elevate the platform, press and release the foot pedal. The platform rises ~1 inch per pedal stroke.
To lower the deck, press the release pedal. To fully lower the deck, hold the release pedal down until the
platform reaches its lower travel limit and stops.
Foot
pedal
Release
pedal
