Table of Contents Rev. 8/15/2023 LLPH MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 17 of 29
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
42-514-019
WELDMENT, FRAME
1
14
11021
HHCS #2 Z PLATED, Ø1/4 - 20 UNC x 4 1/2
LG
2
2
21-513-038
WELDMENT, DECK
1
15
36102
HEX NUT, GRADE A, ZINC PLATED, 1/4-20
2
3
21-001-132
FLOOR LOCK, HAND, ASSEMBLY
1
16
42034
U-BOLT, ZINC PLATED, Ø5/16"-18 X 2" PIPE
SIZE
1
4
33018
USS FLAT WASHER, Z PLATED, Ø
3/4"
4
17
33620
LOCK WASHER, MEDIUM SPLIT, Ø5/16"
2
5
68015
EXTERNAL RETAINING
RING,PHOSPHATE, 3/4"
2
18
36104
HEX NUT, GRADE A, ZINC PLATED, 5/16-18
2
6
21-027-003
ROLLER, GUIDE ROLLER
8
19
01-640-031
PUMP, MANUAL, STK 24" FHJ
1
7
21-112-002
PIN. ROLLER
4
20
13-025-004-
002
HANDLE, WITH HOLES
1
8
16-132-009
PP-4/1.25-W
2
21
31802
SCREW, SELF-TAPPING SCREW
2
9
11113
HEX BOLT, GRADE A, PLAIN
FINISH, 3/8"-16 X 2-1/2"
2
22
36110
HEX NUT Z-PLATED, Ø 1/2 - 13
2
10
37024
NYLON INSERT LOCK NUT,
GRADE 2, ZINC FINISH, 3/8"-16
2
23
99-612-001
PIN, BULLDOG BOLT AND NUT ASSEMBLY
4
11
16-132-011
CASTER SWIVEL, 4X2
4
*24
33-542-003
CHAIN, CHAIN ASSEMBLY
1
12
16-132-200
CASTER, PP-8/2-W, RED
2
25
27560
#10-32 x 3/4 LG SLOTTED MACHINE
SCREW
4
13
33-542-001
ASSEMBLY, PULLEY
1
26
37015
10-32 NYLOCK NUT Z-PLATED
4
ALLPH-500-4SFL

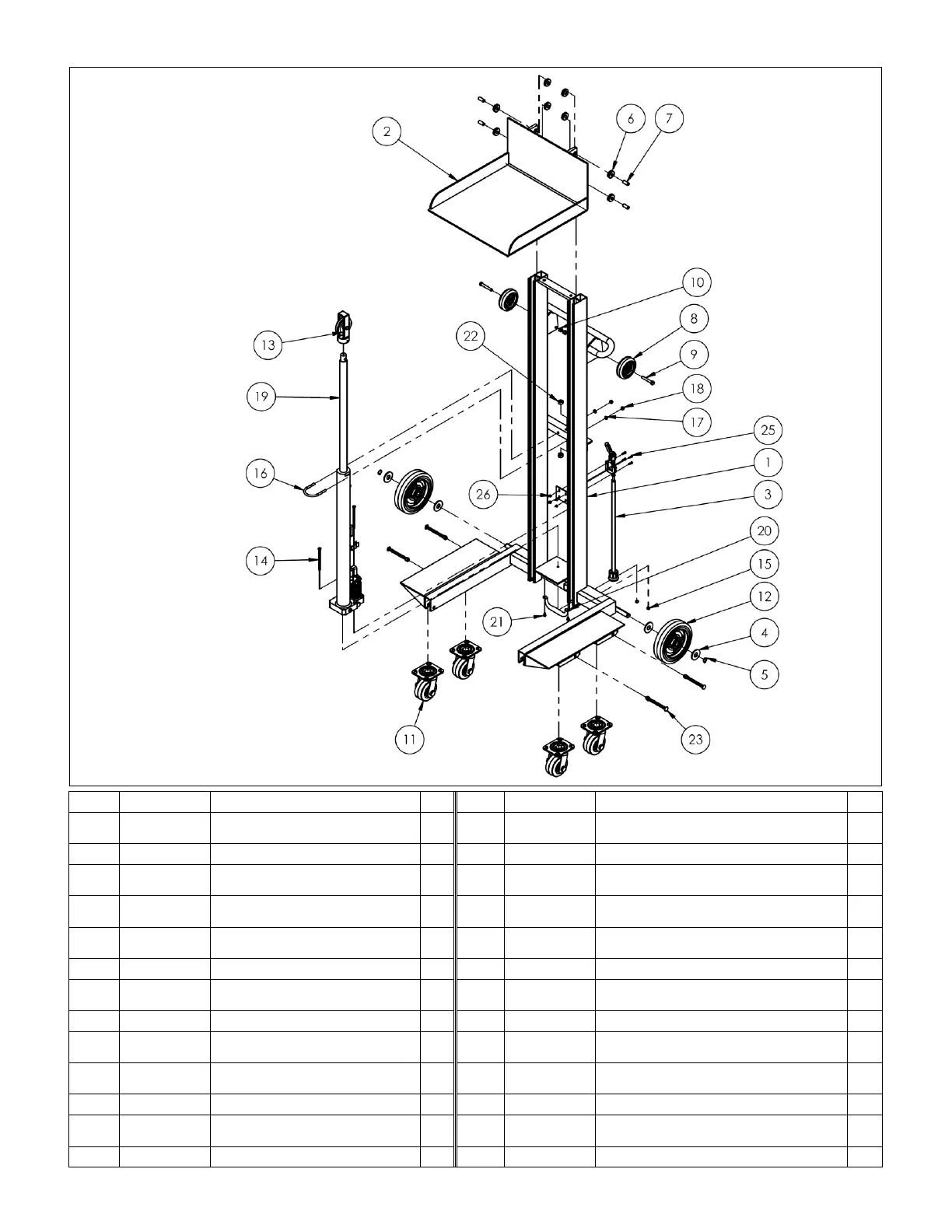

EXPLODED VIEW & BILL OF MATERIALS
42-006-017
* Item 24 not shown
