Operation.
At the beginning of every shift, check the condition of the guards, controls, scissor mechanisms,
hydraulic lines, and limit switches. If any item is in need of repair or otherwise contributes to an unsafe
condition, remove the lift table from service until it has been restored to a safe operating condition.

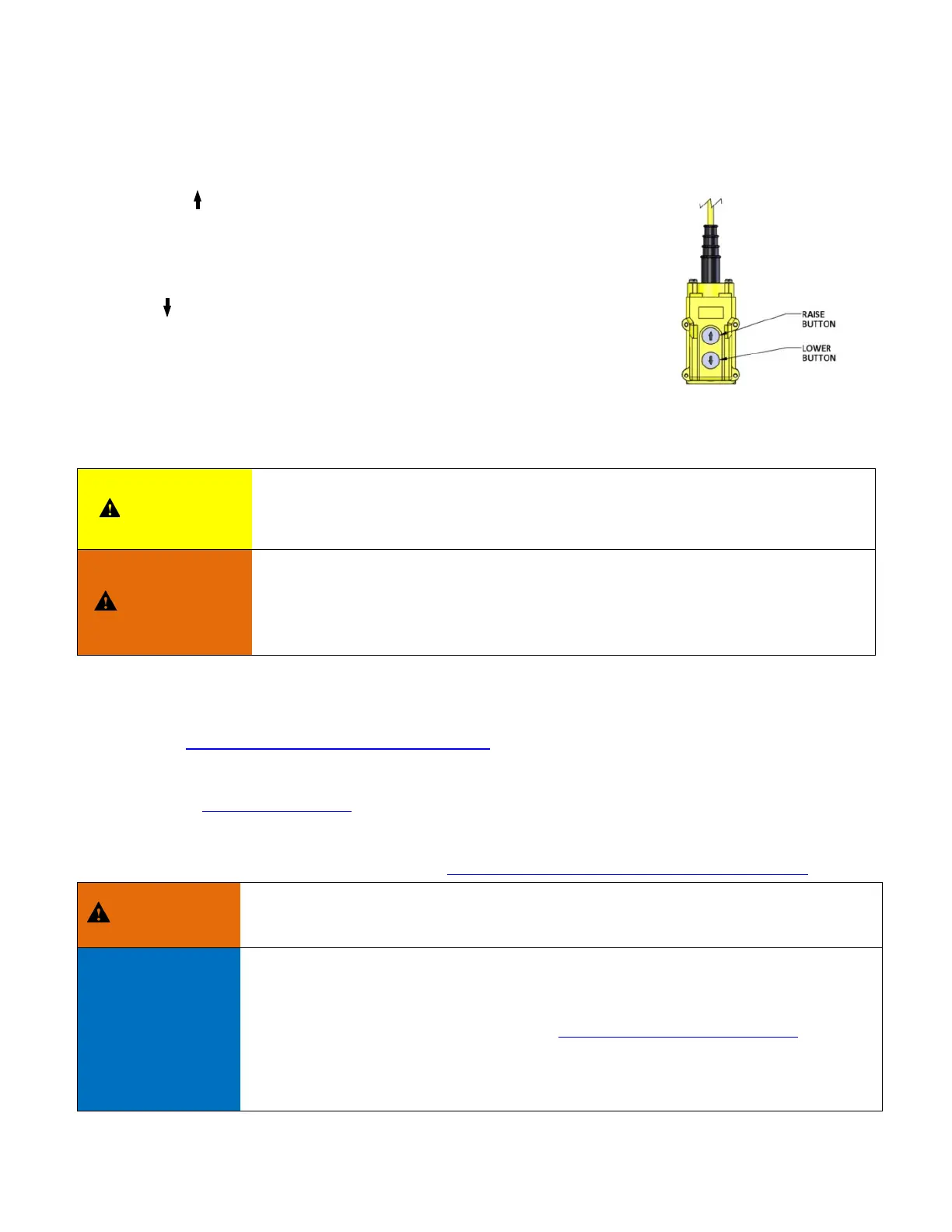

The standard EHLT-E scissor lift table is provided with a handheld pushbutton control that connects to an
electric-hydraulic power unit.
• Pressing the (RAISE) pushbutton energizes the power unit and raises
the platform. The platform rises only while the button is pressed.
Releasing the button causes the platform to stop & hold position. A limit
switch shuts off the motor when the platform reaches its maximum
height.
• Press the (LOWER) pushbutton to open the hydraulic valve and lower
the platform. The platform descends by gravity, and the pump motor
will not run. Release the pushbutton to stop the table’s descent.
• Lowering speed is preset at the factory and cannot exceed 30 fpm. In the
event of a hydraulic line failure, a velocity fuse in the cylinder prevents the
platform from lowering.
• Each table is provided with hydraulic overload protection to prevent hydraulic system damage that
could result from attempting to raise a load that exceeds the table’s capacity.
CAUTION
Watch the area around the table & load on the platform while operating the table.
Never use the table if any damage or unusual noise is observed, if it is in need of
repair, or if any malfunction is observed. Notify your supervisor or maintenance
personnel.
WARNING
Keep all personnel clear of the machine when it is in operation. Before operating
the lift table, make certain no part of any person or object is under the platform.
Guards shall be in place before operating the lift table.
Guards cannot protect against every possible condition and cannot a substitute for
good judgment & care in use, loading, handling, storage, etc. of the table.
INSPECTING AND MAINTAINING THE TABLE
Regular maintenance is necessary to maximize the service life of this product. Compare all inspection
results to the RECORD OF SATISFACTORY CONDITION
discussed on p. 11. Only use the table if it is in
satisfactory condition. If an inspection reveals any changes from satisfactory condition, complete all
repairs before returning the table to service. Only use manufacturer-approved replacement parts. DON’T
GUESS! Contact
TECHNICAL SERVICE if you have questions that are not addressed in these instructions or if
you are uncertain how to address an issue discovered during an inspection. Contact Technical Service by
calling (260) 665-7586 and asking for the Service and Parts Department, or by submitting your questions
through Vestil’s online parts and service portal at
https://www.vestil.com/page-parts-request.php.
WARNING
Identify hazards & apply relevant safety procedures before beginning work.
Remove any load and install the maintenance stops before beginning any inspection
or service on the lift table. See below.
NOTICE
Proper use and regular maintenance are essential for this product to function properly.
• Periodically lubricate pivot points with bearing grease.
• Keep the product clean & dry. Only install and use this table indoors.
• Only use manufacturer-approved replacement parts. Order replacement/spare
parts for this equipment by contacting the TECHNICAL SERVICE DEPARTMENT.
• DO NOT use brake fluid or jack oils in the hydraulic system. If oil is needed, only use
an anti-
wear hydraulic oil with a viscosity grade of 150 SUS at 100°F, (ISO 32 cSt @
40°C), or Dexron transmission fluid.
• Contact the manufacturer for SDS (Safety Data Sheet) documentation
Only qualified individuals trained to understand mechanical devices, electrical and hydraulic circuits, and
the hazards associated with them, should attempt troubleshooting and repair of this equipment.
