Table of Contents Rev. 4/25/2025 CR, MANUAL
Table of Contents Copyright 2025 Vestil Manufacturing Page 6 of 10
ATTACHING THE CARPET POLE TO A LIFT TRUCK CARRIAGE
Step 1: Remove the tines from the lift truck carriage.
Step 2: Referring to the diagram below, rotate the latch lever to the open position. Set the left
side of the upper carriage bracket on the upper carriage crossbar of your lift truck.
Step 3: Slide the upper carriage bracket along the carriage crossbar. Adjust position to allow
the lower carriage bracket to fit into the notch in the lower carriage crossbar (of the forklift).
The notch is probably located at the center of the crossbar. Next, slide the back plate to the
left or right as necessary to center the carpet pole on the carriage.
Step 4: Secure the carpet pole to the lift truck carriage by closing the latch.
[NOTE: The latch lever will only rotate back to the closed position if the latch aligns with a
notch in the upper crossbar. If necessary, adjust the position of the pole until the latch aligns
with a notch.]

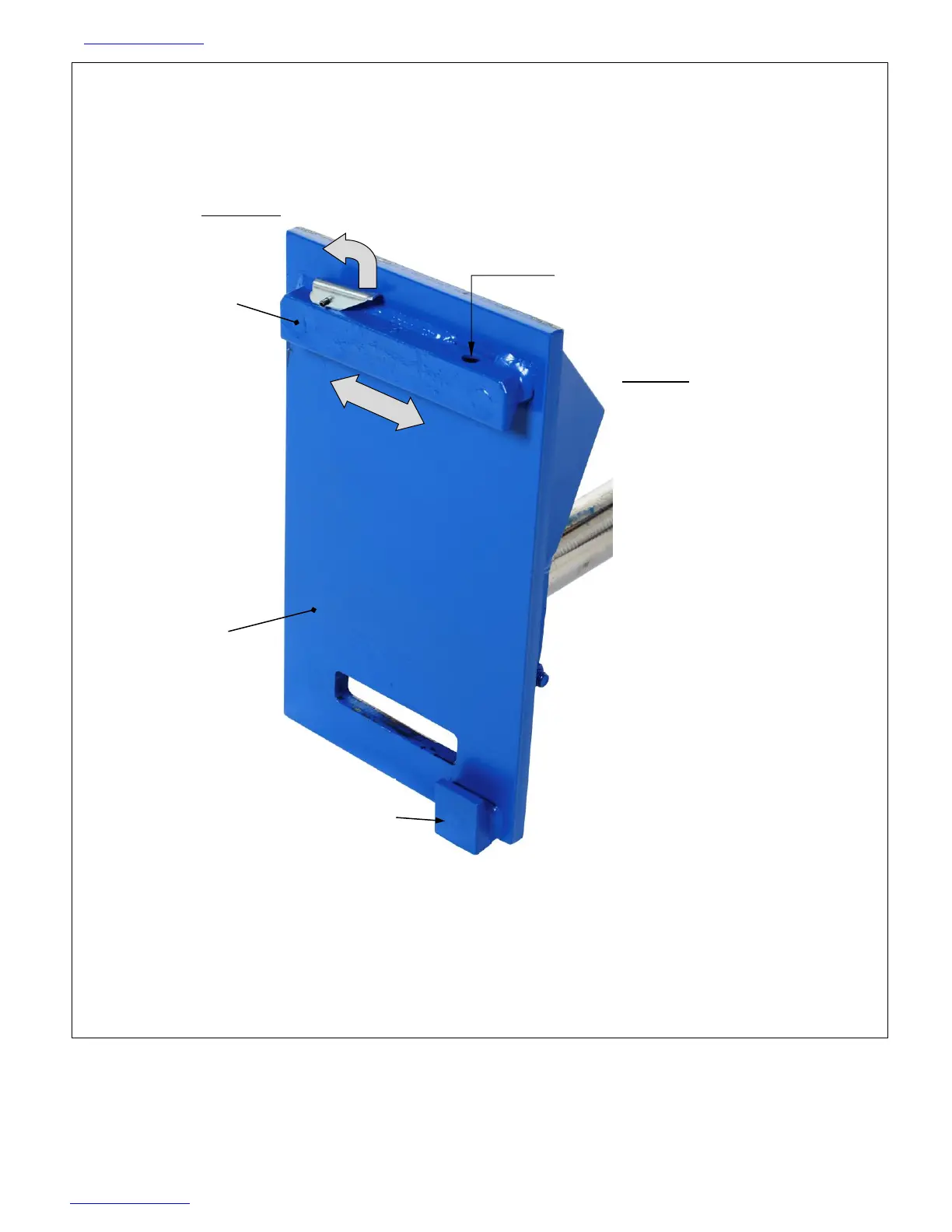

Carpet
pole back
plate
Lower
carriage
bracket
Upper
carriage
bracket
Upper
carriage
crossbar
(of forklift)
NOTE: The latch can be attached to
either the left or right side of the upper
bracket (shown installed on left side).
Turn latch lever to open
position (shown closed)
Set the upper carriage
bracket on the
carriage crossbar of
your forklift. Then, slide
the bracket along the
carriage crossbar until
the lower carriage
bracket fits into the
notch in the lower
carriage crossbar of
your forklift.
Lower
carriage
bracket
Left side
Right side
