Table of Contents 2/13/2024 ALL-T-1-GPT-ST-L MANUAL
Table of Contents Copyright 2022 Vestil Manufacturing Co. Page 10 of 15

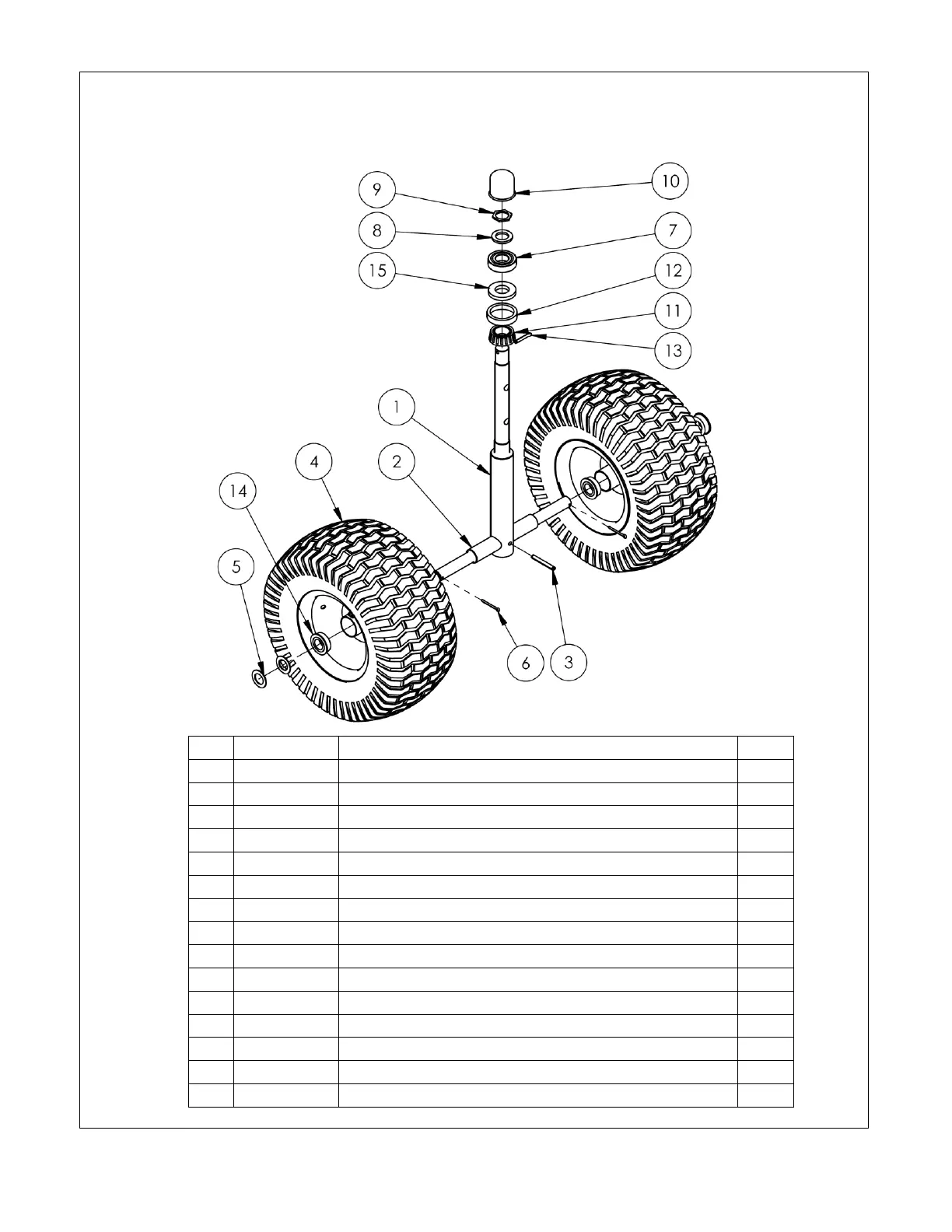

Rear Wheel Axle Assembly Exploded View and Bill of Materials
50-612-008
Item
Part no.
Description
Qty.
1
50-112-013
Pin, rear, king pin
1
2
50-112-014
Axle, rear
1
3
64255
1
/
4
”x2” spring pin
1
4
16-132-235
Tire, rear, foam filled
2
5
33424
Machine bushing, low carbon, plain,
3
/
4
”x18ga.
4
6
65078
Extended prong cotter pin, z-finish,
1
/
8
”x1
1
/
2
”
2
7
22-110-001
Bearing, upper steering
1
8
50-113-017
Shim, bearing spacer
1
9
50-113-014
Spacer, rear steering
1
10
50-145-010
Specialty hardware, cap, hex nut
1
11
50-110-002
Bearing, tapered
1
12
50-110-004
Bearing, cup
1
13
65124
Cotter pin, z-plated,
3
/
16
”x1
1
/
4
”
1
14
50-110-003
Bearing, ball, low speed, rear wheel
4
15
50-110-008
Bearing, seal
1
Return to p. 9.
