Rev. 9/5/2017 A-LIFT, MANUAL
Copyright 2017 Vestil Manufacturing Corp. Page 5 of 12

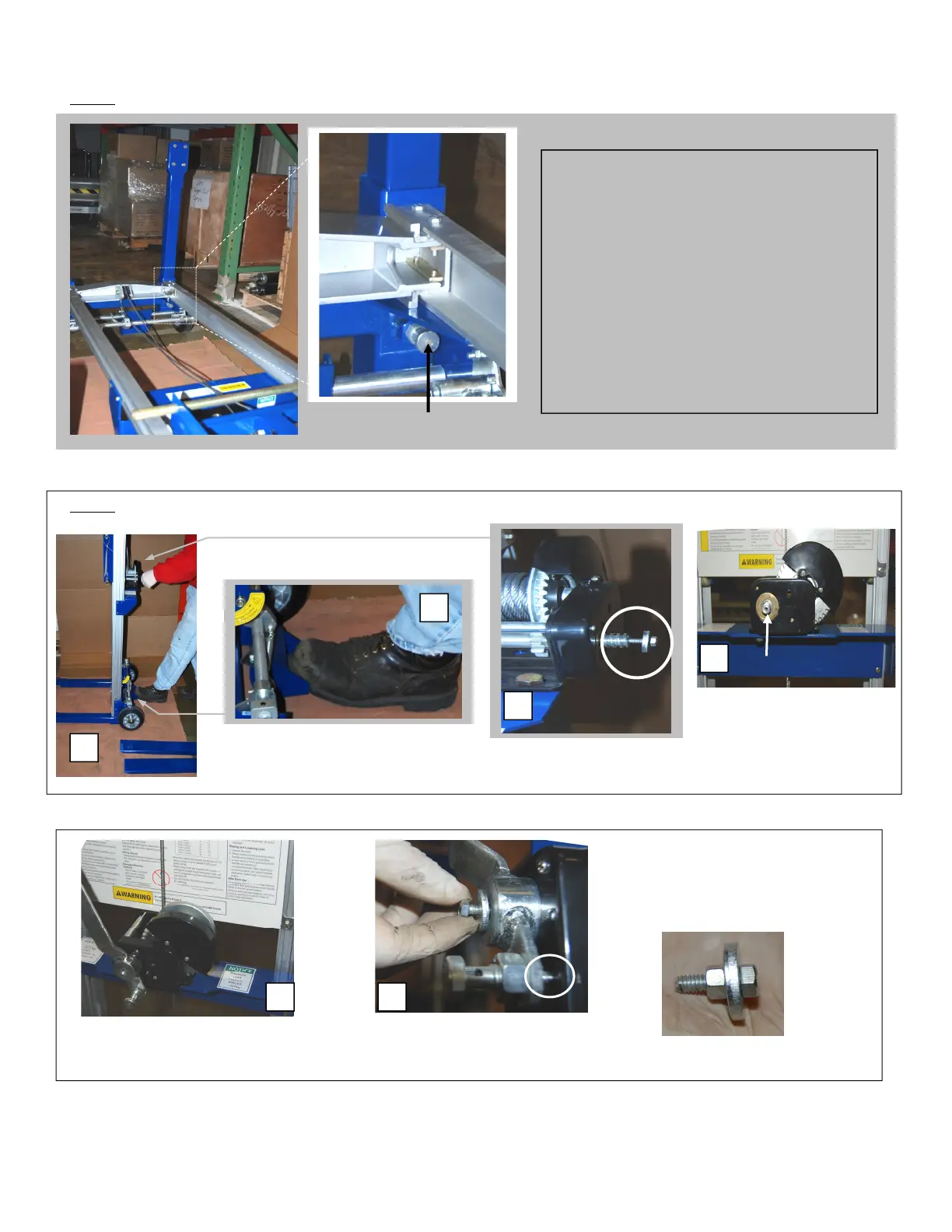

Step 1
U: Connect the support legs to the main assembly by following instructions (a) through (e).
UStep 2U: Lift the assembly to the upright position (photo a). Then, lock the brakes (photo b) and fasten the winch handle
to the winch body (photos c – f).
U
Spring-loaded retaining peg
(a) Insert a support leg into each of the
receivers in the main assembly.
(b) Pull the retaining pegs to allow the legs
to drop to the bottoms of the openings.
(c) Release the pegs. The pegs should
seat into holes in the legs. You might
have to wiggle the leg to get the peg to
drop.
(d) Pull up on each support leg to verify that
the pegs have seated properly. The legs
should not be able to slide out of the
opening If a leg comes out of its
receiver, the corresponding peg did not
engage properly. Repeat (a) though (d).
Engage the brakes by pressing
down on the brake actuator
Remove the handle
retaining bolt and washer
(circled)
a
b
c
d
e
Winch body with bolt and
washer removed
Slide the handle onto the
handle connector
Handle connector
f
Set the handle latch pin (circled) to lock the
handle, and then fasten the handle to the
handle connector with the bolt and washer
that you removed in step (c).
NOTE: Secure the washer against the
bolt head with a nut BEFORE
fastening the bolt to the connector.
This will prevent the bolt from
loosening when the handle is rotated
counterclockwise to lower the forks.
