Rev. 9/5/2017 A-LIFT, MANUAL
Copyright 2017 Vestil Manufacturing Corp. Page 4 of 12
Item Description Part No. Quantity
Item Description Part No. Quantity
1 Operator Handle A-Lift-1 1 18 Adjustable Leg (-CB
counterweight base models)
A-Lift-CB-18
2
2 Loading Wheels A-Lift-2 2 19 5 inch Swivel Caster with
brake
A-Lift-CB-19
2
3
3a
Upper casting
Inner frame pulley (large)
A-Lift-3
A-Lift-3a
1
1
20 Counterweight Base A-Lift-CB-20
1
4
4a
Large Pulley
Large cable anchor bolt &
nut
A-Lift-4
A-Lift-4a
2
3
21 Caster A-Lift-R-21 2
5
5a
Cable (Standard Units)
Cable (EHP Units)
A-Lift-5
A-Lift-EHP-5
1 22 Legs - Standard base
(R models)
A-Lift-R-22 2
6 Telescoping Inner Mast
Frame (only HP & EHP
Units)
A-Lift-6 1 23 Solid Rubber Wheel A-Lift-23 2
7 Mast Frame A-Lift-7 1 24 Brake (optional) A-Lift-24 1
8 Decal Plate A-Lift-8 1 25 Fork Lock Pin A-Lift-25 4
9 10 in. Pneumatic wheel
(optional)
A-Lift-9 2 26 Winch Mounting Bracket A-Lift-26 1
10a
10b
Carriage rollers 30x41
(EHP models) Carriage
rollers 33x55
A-Lift-R-10a
A-Lift-R-10b
4
4
27
27a
27-SPG
Winch
Winch Handle
Winch Spring
A-Lift-27
A-Lift-27a
A-Lift-27-
SPG
1
1
1
11 Fork Mounting Tube A-Lift-11 2 28 Not Available
N/A
N/A
12 Fork A-Lift-12 2 29 Deck (optional) A-Lift-Deck 1
13 Adjustable Leg (Straddle
base)
A-Lift-S-13 2 30 [-S models with 4-point
casters]
4in. caster – option A
5in. caster – option B
A-Lift-29A
A-Lift-29B
14
Lower casting A-Lift-14 1 31-32 Not Available N/A N/A
15 Leg Lock Pin A-Lift-CB-15 2 33 Pivoting carriage latch A-Lift-33 1
16 Caster A-Lift-S-16 2 34
34a
Small pulley
Small pulley bolt & nut
A-Lift-34
A-Lift-34a
1
1
17 4 inch Fixed Wheel A-Lift-CB-17 2 35 Operator handle bracket A-Lift-35 2
36 Load wheel bracket A-Lift-36 2

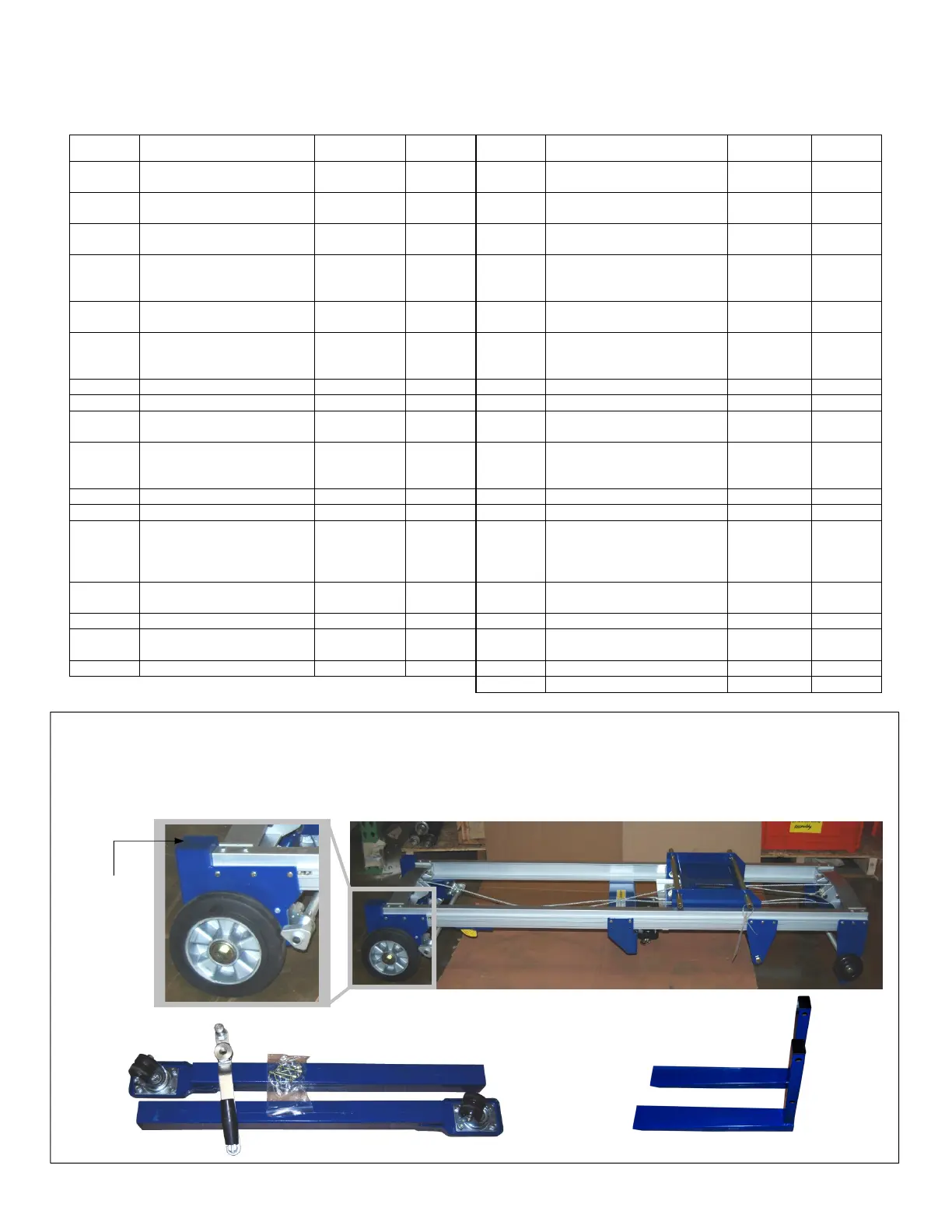

Assembly Instructions:
Vestil ships winch lifts to its customers in a mostly assembled form. The minimal assembly that is required differs by
model, so follow the directions that correspond to your lifter.
If you purchased an A-LIFT-R or A-LIFT-S, you will receive 3 pieces:
U
1). Main Assembly
2). Box 1 contains: standard support legs (2),
fork retaining pins (4), winch handle (1).
3). Box 2 contains:
forks (2).
Support leg
receivers
Parts List
“Standard Units” refers to A-Lift-R, -S, & -CB models; “HP Units” means A-Lift-R-HP, -S-HP, and -CB-HP models; “EHP
Units” indicates A-Lift-S-EHP and –CB-EHP models.
