Rev. 9/5/2017 A-LIFT, MANUAL
Copyright 2017 Vestil Manufacturing Corp. Page 6 of 12

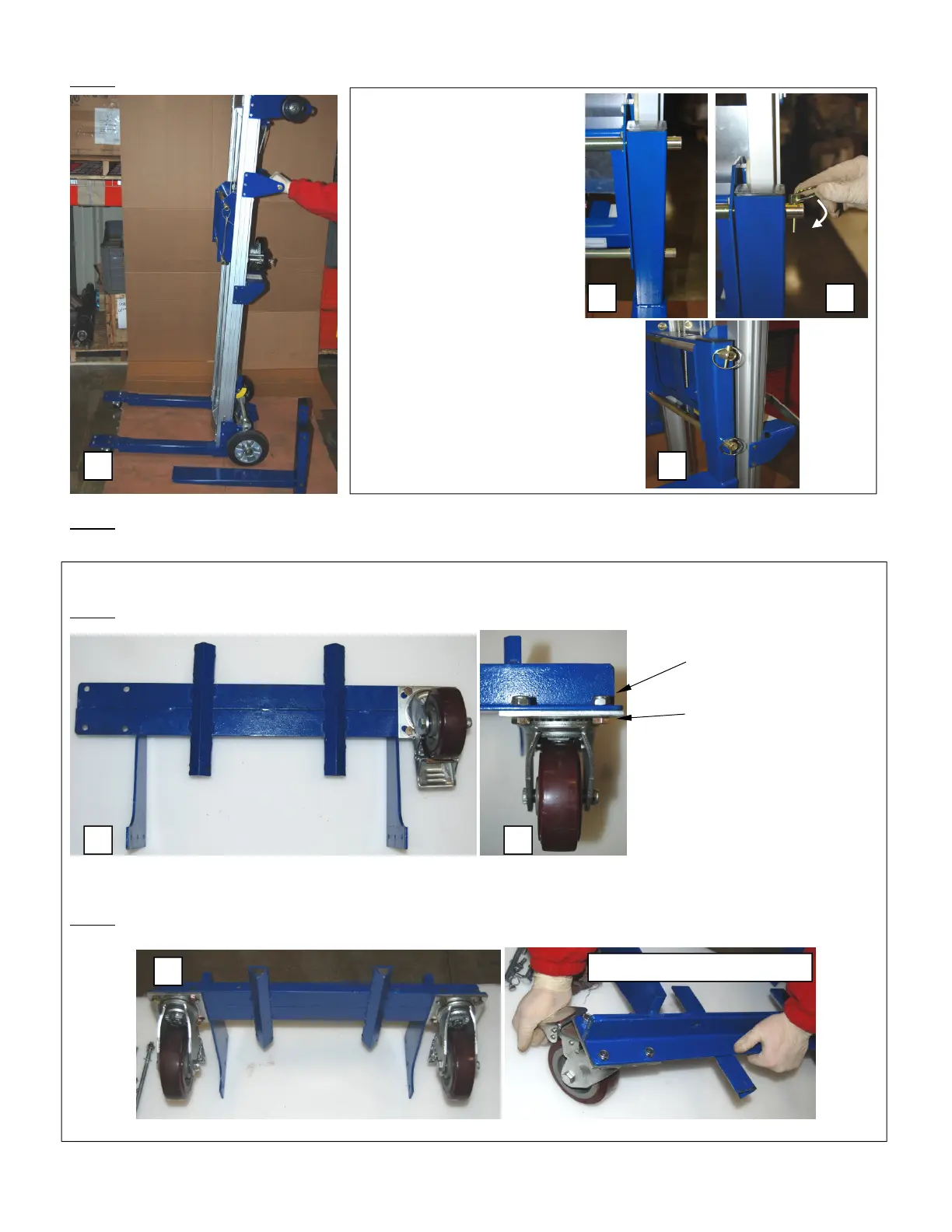

Step 3U: Attach the forks to the carriage.
UStep 4U: Turn the winch handle counterclockwise to lower the forks. Lower the forks until they are a few inches above
the support legs (22), and then push the lifter to the desired location.
Counterbalanced lifters (A-Lift-CB):
UStep 1U: Attach the 5 inch swivel casters (19) to the counterweight base weldment (20).
UStep 2U: Attach the weldment to the main assembly.
Grasp the
operator handle
(1) with one
hand; turn the
winch handle
clockwise with
the other hand.
Raise the
carriage (10) to a
comfortable work
height.
a
b
c
d
b. Align the holes in the forks
with the carriage cross- bars
(11); then push the forks until
they contact the carriage.
Note: It may be necessary to
tap the forks into place with a
rubber mallet. NOTE: Forks
shown installed right side up,
but they can also be installed
upside down (.
c. Slide fork retaining pins (25)
through the holes in each of
the carriage crossbars.
d. Lock the pins into place by
swinging the ring portion of
each pin downward
a
Turn the weldment over so that
the underside faces upwards.
Align the casters with the bolt
holes in the weldment.
Drop bolts through each of the
holes. Secure each bolt with a
lock nut. Tighten all of the
connections with a pair of
wrenches.
b
Lock nut
Bolt
a
b.
L
ock both of the caste
rs
