4.7 Mounting Power Distribution Units

Power distribution units may be mounted on the rails or attached to mounting brackets in the rack. Two PDU mounting

brackets are standard in each rack. They are mounted in the rear of the rack, one on each side.

4.7.1 Installing and Positioning a Full-height PDU/Cable-Management Bracket

The top and bottom of the 4-in. wide brackets are identical for use on either side of the rack. Figure 4.10  on the facing page ,

shows the mounting and cable-management features of the bracket.

To install a full-height bracket:

1. Position the full-height bracket for installation with the inside bottom flange of the PDU resting on the flange of

the frame member at the top and bottom. See the flange in Figure 4.9  below .

2. Hold the PDU bracket in place, then insert and tighten the screws.

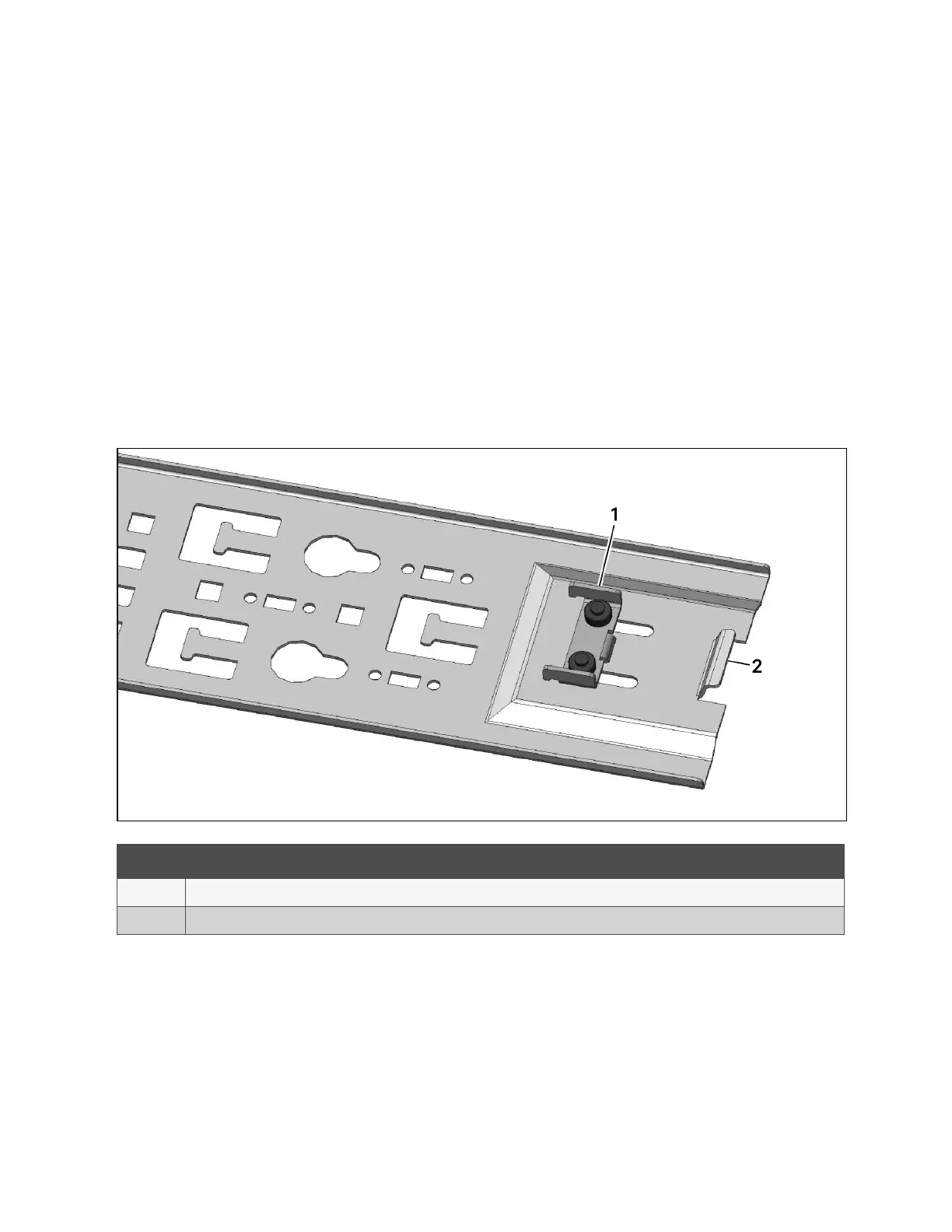

Figure 4.9 Full-height bracket end

Item Description

1 Bracket clip

2 Bracket flange

4 Installation and Assembly Procedures

18

Vertiv™ VR Installer/User Guide
