3. Slide the rail-adjustment brackets down.

4. Slide the EIA rail to the desired position, making sure to keep it square. The frame member and support have a

feature pattern spaced on 6.35-mm centers to help properly position the rails.

NOTE: The front and rear 19-in. EIA rails must be kept at a 90-degree angle to the upper and lower frame members.

The left- and right-front vertical rails must be the same distance from the front of the rack. The left- and right-rear

vertical rails must be the same distance from the rear of the rack. If these conditions are not met, equipment and

optional features will be difficult to install.

5. Hold the rail in position, then install the M6x12 screws into the rail-adjustment brackets.

6. Repeat steps 2 to 5 for each rail.

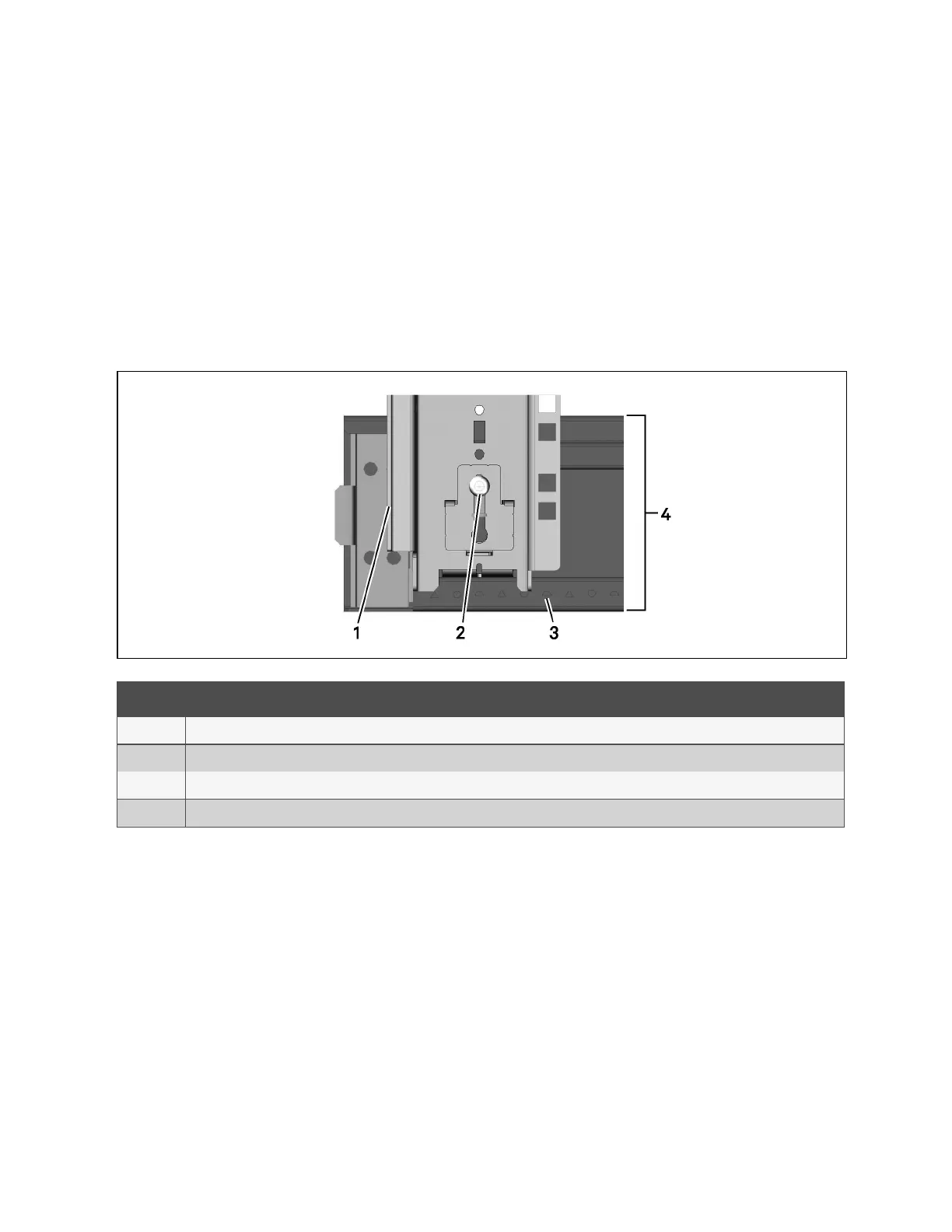

Figure 4.8 EIA rail-adjustment components in rack

Item Description

1 Face of EIA rail

2 Rail-adjustment screw

3 EIA rail-alignment features on all frame members

4 Frame member

4 Installation and Assembly Procedures

17

Vertiv™ VR Installer/User Guide
