4.6 Positioning and Attaching Front-andRear-Mount19-in.EIARails

Front- and rear-mount, 19-in., EIA rails are installed in racks at the factory at 29.13in.(740mm). They attach to the rack frame

at the top, bottom, and in the center using M6x12 Torx-head screws into a rail-adjustment bracket.

The EIA rails use universal (M6)cage nuts and are marked with rack-mount units (RU) on the front and rear, see Figure 4.6 

below . The rails also include accessory-mounting holes (AMH), cable pass-through holes, and cable tie-down slots.

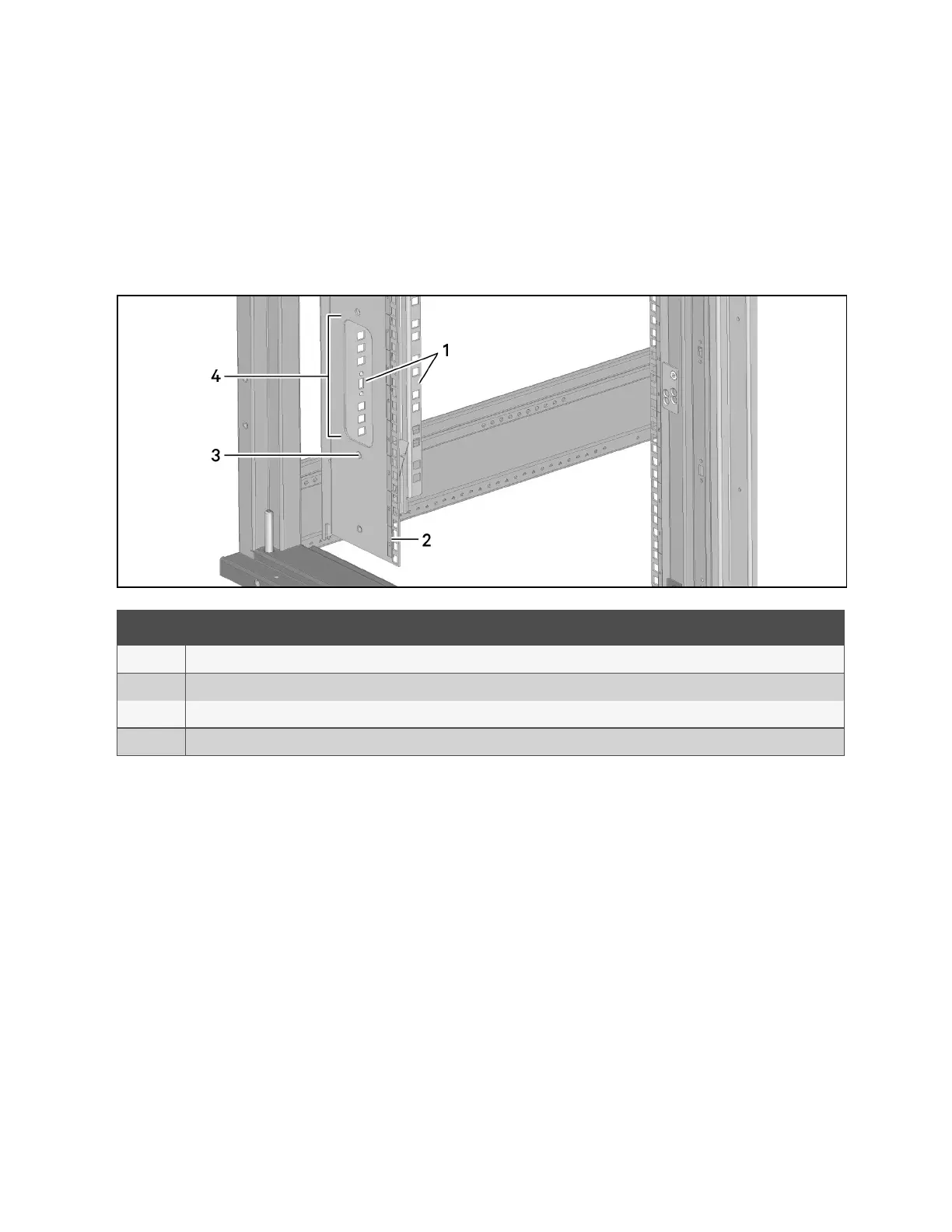

Figure 4.6 EIA-rail Features

Item Description

1 Cable-accessory mounting locations

2 U-mark label

3 Cable-trough and air-flow brush-strip attachment (on 800W models only)

4 Cable pass-through cut-out (on 800W models only)

4 Installation and Assembly Procedures

15
