2.8 Working Principle
The energy storage system consists of a 233kWh energy storage system, a temperature control
system and a fire protection system. The energy storage unit is composed of five liquid-cooled battery
packs, each consisting of 52 batteries with a cell capacity of 280Ah. Each energy storage system is
1P260S and has a nominal capacity of 233kWh. During discharge, the DC output power of the
battery cluster is connected to the inverter through a DC circuit breaker, and then converted into AC
power and output to the power grid or load through an AC circuit breaker. When charging, the power
grid outputs alternating current to the inverter, which converts the alternating current into direct current
to charge the battery, or the photovoltaic direct current is directly used to charge the battery through
the inverter.

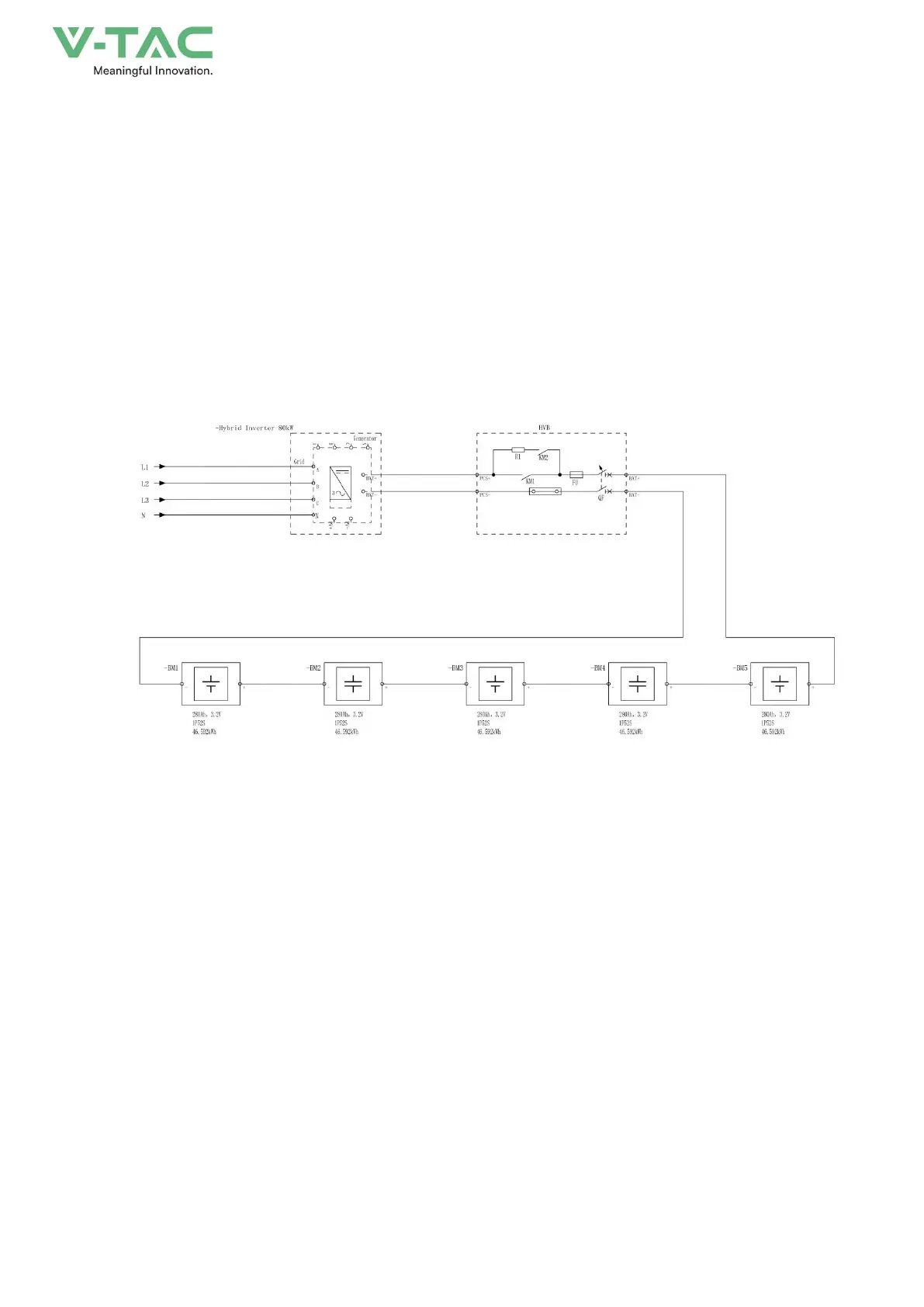

Figure2-13 Electrical schematic diagram
