Ethernet Device Discoverer iOS Version
An iOS version of Ethernet Device Discoverer is available at https://
itunes.apple.com/us/app/ethernet-discoverer/id1086192624?mt=8
. This application offers the same set of features as the Windows
version but operates on iOS devices (iPhone, iPad, etc.). Figure 18
shows the opening of the iOS version of Ethernet Device Discoverer.
Ethernet Device Discoverer Android Version
An Android version of Ethernet Device Discoverer is available
at https://play.google.com/store/apps/details?id=com.usl.
discoverer&hl=en .
Ethernet Device TCP Based
Operations
The LSS-200 uses TCP port 10001. It can accept 5 simultaneous TCP
connections. Commands are lower case and terminated with a carriage return (0x0d). Parameters, if any, are separated by tab characters (0x09)
or a pipe character (|). Responses are in ASCII and terminated with a carriage return. If multiple values are returned, they are separated with tab
characters. In some cases, there may be a tab character after the last response and before the carriage return. The command is not echoed by the
LSS-200.
LSS-200 commands can be tested using Tera Term, RealTerm (both listed below), or telnet on operating systems that include it (Windows XP, Linux,
Mac OS). Since the LSS-200 does not echo commands or append line feed characters, Tera Term and similar programs should be set for local
echo and CR+LF on receiving a carriage return. These options are in the Setup – Terminal menu on Tera Term.
The LSS-200 commands and typical responses are shown in Table 2. Note that many of these commands are commonly used in scripts (described
previously), and the lss.sys.script_run command can be used to start script execution.
The LSS-200 commands often include a minimum and maximum value. These values flag the reading as out of tolerance in the LSS-200 log, LSS-
DB, and Ethernet Device Discoverer. These values are also shown on graphs generated by the LSS-200 and LSS-DB. The minimum and maximum
may be omitted from the command if desired. The LSS-200 then sets the minimum to -9e9 and the maximum to 9e9. The parameter will then
never be shown as out of tolerance and the limit lines will not be shown on graphs.
Commands start with “lss.sys.” The command prefix for the LSS-100(P) (lss100.sys.) is also supported in this firmware for those commands that
are supported by the LSS-100(P).
— Table 2 — LSS-200 TCP/Script Commands
Command Response Description
lss.sys.audio_sync_delay 0.000000
Returns the last measured delay from screen flash to audio pop in ms. This is only
valid when a flash/pop sync composition is playing.
lss.sys.auditorium 1 Returns the auditorium number entered on the configuration page.
lss.sys.cct 6255.250284 Returns the correlated color temperature in Kelvin.
lss.sys.cdm2 405.151492 Returns the luminance in candelas per square meter
lss.sys.comments Conference Room Returns the auditorium comments entered on the configuration page.
lss.sys.ftl 118.332596 Returns the measured luminance in foot-Lamberts
lss.sys.spl 83.239520 Returns the measured sound pressure level in dBc
lss.sys.temperature 29.2\t84. Returns the internal temperature in degrees C and degrees F (separated by tab).
lss.sys.theater_name QSC San Luis Obispo Returns the theater name entered on the configuration page.
lss.sys.theater_number 1 Returns the theater number entered on the configuration page.
lss.sys.ver K\t180126\t180109
Returns the circuit board version, the firmware version, and the bootloader versions,
separated by tab.
lss.sys.xy 0.314743\t0.353419 Returns the chromaticity as x tab y.

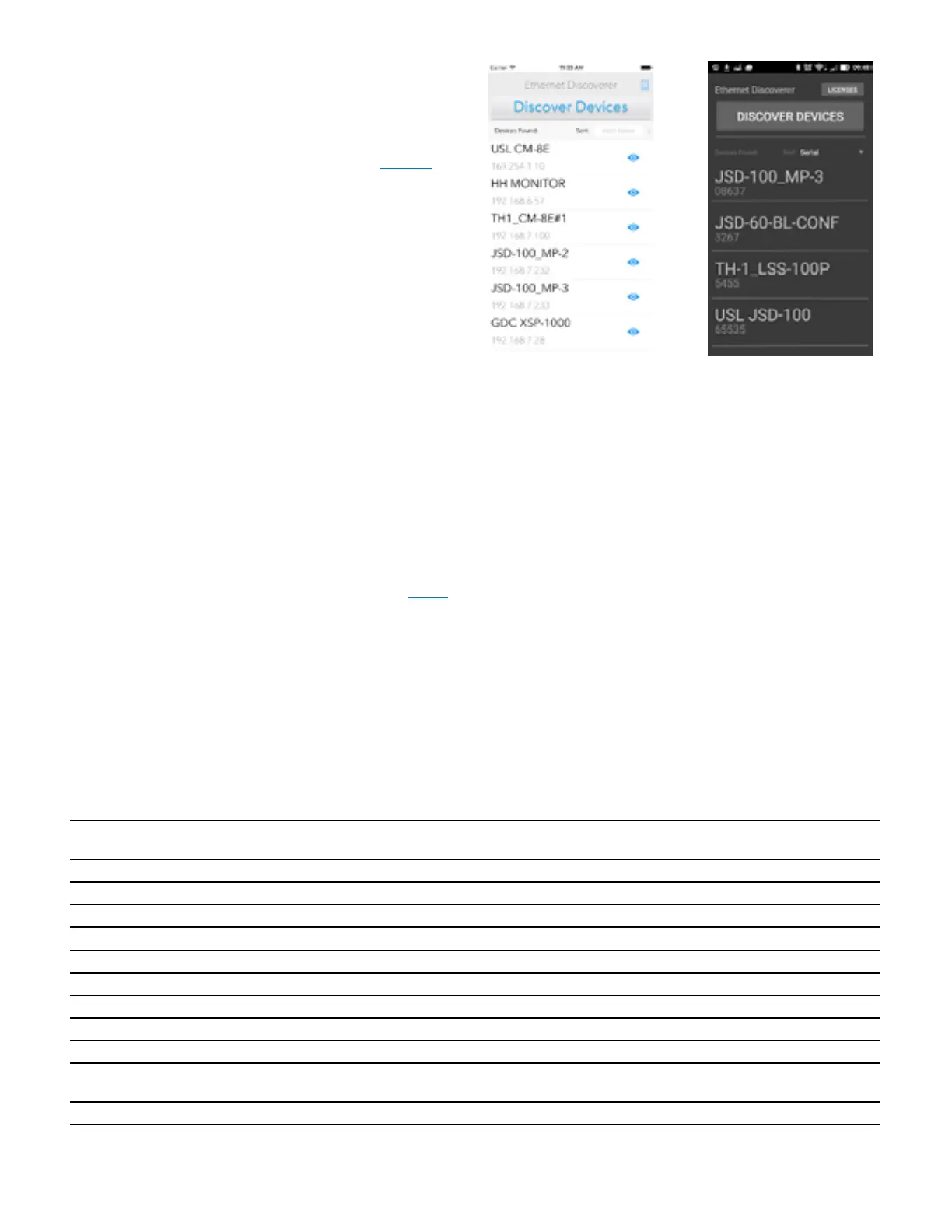

— Figure 18 —
Ethernet Device
Discoverer iOS version
— Figure 19 —
Ethernet Device
Discoverer for Android
