TD-001538-01-A1

Multiple Auditorium Summary

Another method of presenting multiple auditoriums on a single web page is to build a list of links to the auditoriums. The LSS-200 automatically

supplies a link to a log that includes the theater name and the screen number. If there is an out of limits log entry in the log record range speciﬁed,

the log link appears in red. You don’t have to look at logs from auditoriums where all is well. Sample HTML is shown below.

<html>

<head>

<title>Obispo LSS-200 Summary</title>

</head>

<body>

<h1 align=”center”>Obispo LSS-200 Summary</title>

25200&GuiTzName=Pacic%20Standard%20Time&DST=1" width="100%" height="50"></iframe><br />

25200&GuiTzName=Pacic%20Standard%20Time&DST=1" width="100%" height="50"></iframe>

Most of the iframe attributes are similar to the previous example. As noted before,

the lack of an rn in the src attribute tells the LSS-200 to evaluate the last n records

for an out of limit condition. In the examples above, a particular log link will be red if

one of the last 20 records shows an out of limits condition.

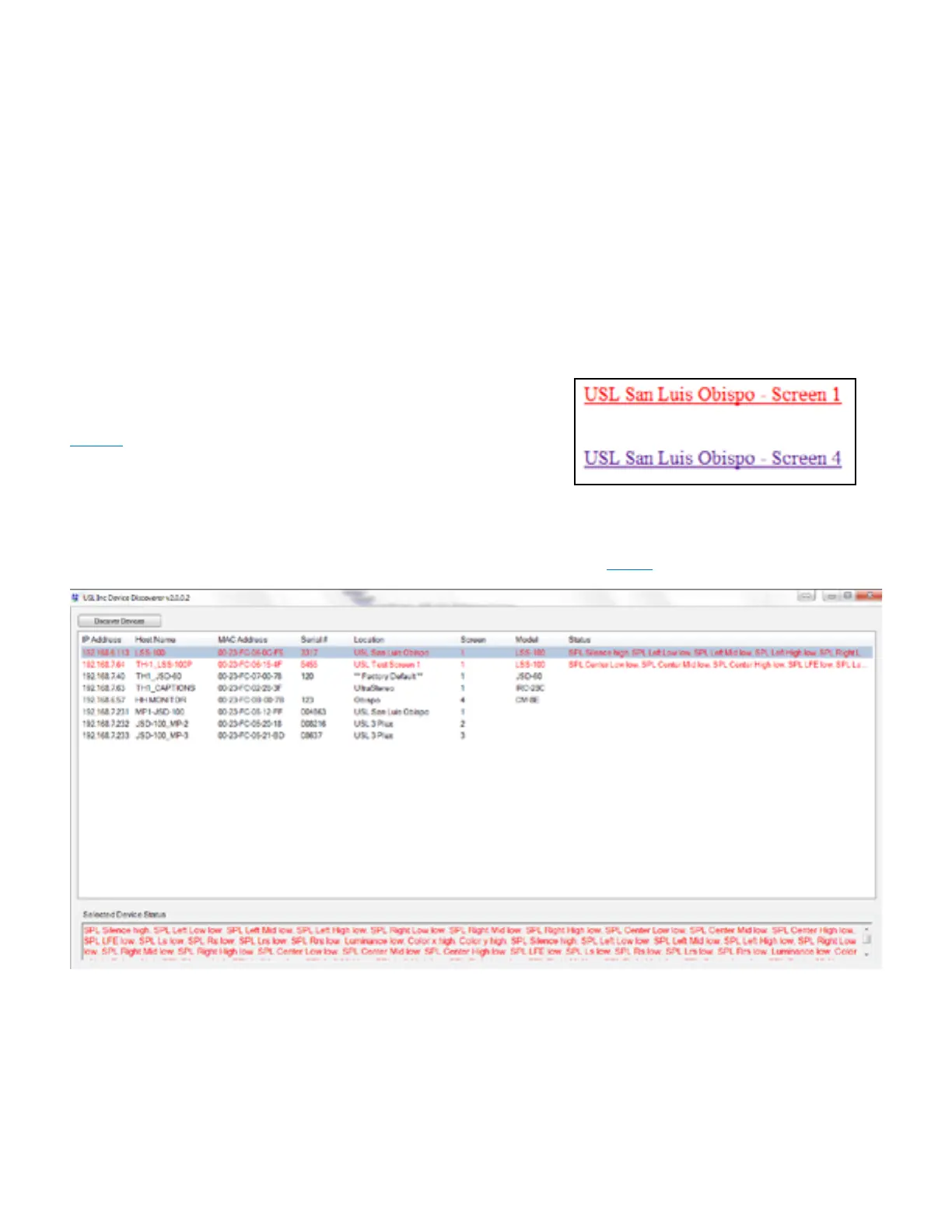

Figure 16 shows how the HTML above appears in our test system:

Ethernet Device Discoverer Windows Version

Ethernet Device Discoverer (http://ftp.uslinc.com/?dir=ftp/Products/

EthernetDeviceDiscoverer ) discovers QSC devices on a network. In addition, it

shows the shows the status of discovered LSS-200 devices. The LSS-200 status messages shows any out of tolerance measurements in the

previous number of days where the number of days is set in the Web Display Conﬁguration Page (Figure 6).

— Figure 17 — Windows version of Ethernet Device Discoverer showing LSS-200 status in red.

— Figure 16 — LSS-200 Multiple Auditorium Links
