184050 Page 18

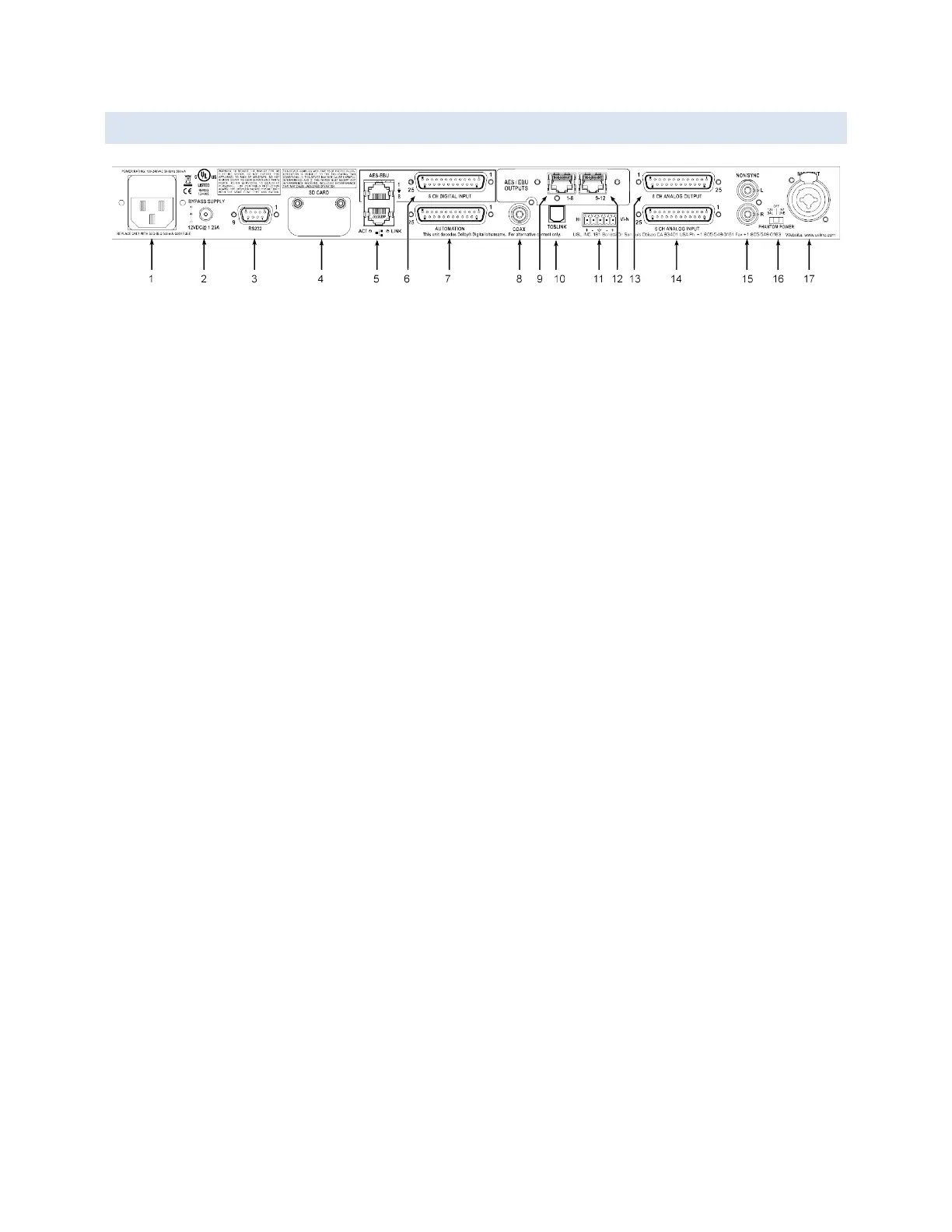

7.4 AES/EBU OUTPUT REAR PANEL CONNECTIONS (JSD-60LS OR JSD-60DS)
1. Power entry Module – Accepts IEC-type line cord from 100–240 VAC power source. Also
contains a 500 mA Slo-Blow 5×20 mm fuse.
2. Bypass Power Supply – 12 VDC at 1.25 A.
3. RS-232 on a DE9F connector for communications with GUI or automation.
4. SD Card – Stores a backup copy of unit configuration. Can also be used to transfer settings
to another unit or read by the GUI to download to a connected unit.
5. AES/EBU input connector (top RJ45) – parallel connections to the DB25F to the right.
Ethernet connector (bottom RJ45) – Network communications with GUI, web browsers,
automation, etc.
6. AES/EBU input connector (DB25F) – Eight channels, DMA8 pin out.
7. Automation DB25F Connector – Receives automation pulses from other system
components. Ten control input lines with ground and 5 V power provided to support a
standard pulse to ground system. The 5V output can power a JSDV-80 remote volume
control that pulses control lines 9 and 10.
8. COAX - RCA type connector (PCM) with optional DTS® and Dolby Digital®
decoding.
9. AES/EBU Outputs 1-8
10. TOSLINK Port – Optical Fiber input (PCM) with optional DTS® and Dolby Digital® decoding.
11. Hearing Impaired/Visually Impaired-Narrative outputs.
12. AES/EBU Outputs 9-12
13. Eight channel analog outputs. These outputs are active whether the AES/EBU output card is
present or not. If the JSD-60 is configured for bi-amp, the screen channel outputs will be the
low band.
14. Six channel analog input on DB25F – Balanced line inputs.
15. Non Sync (N/S) connectors – L and R analog inputs, RCA type connectors.
16. Public address and real time analyzer microphone phantom power supply selector, 12 V
balanced, 9 V unbalanced, and off.
17. Public address and real time analyzer microphone – XLR and ¼” stereo jack with
configurable phantom power.
