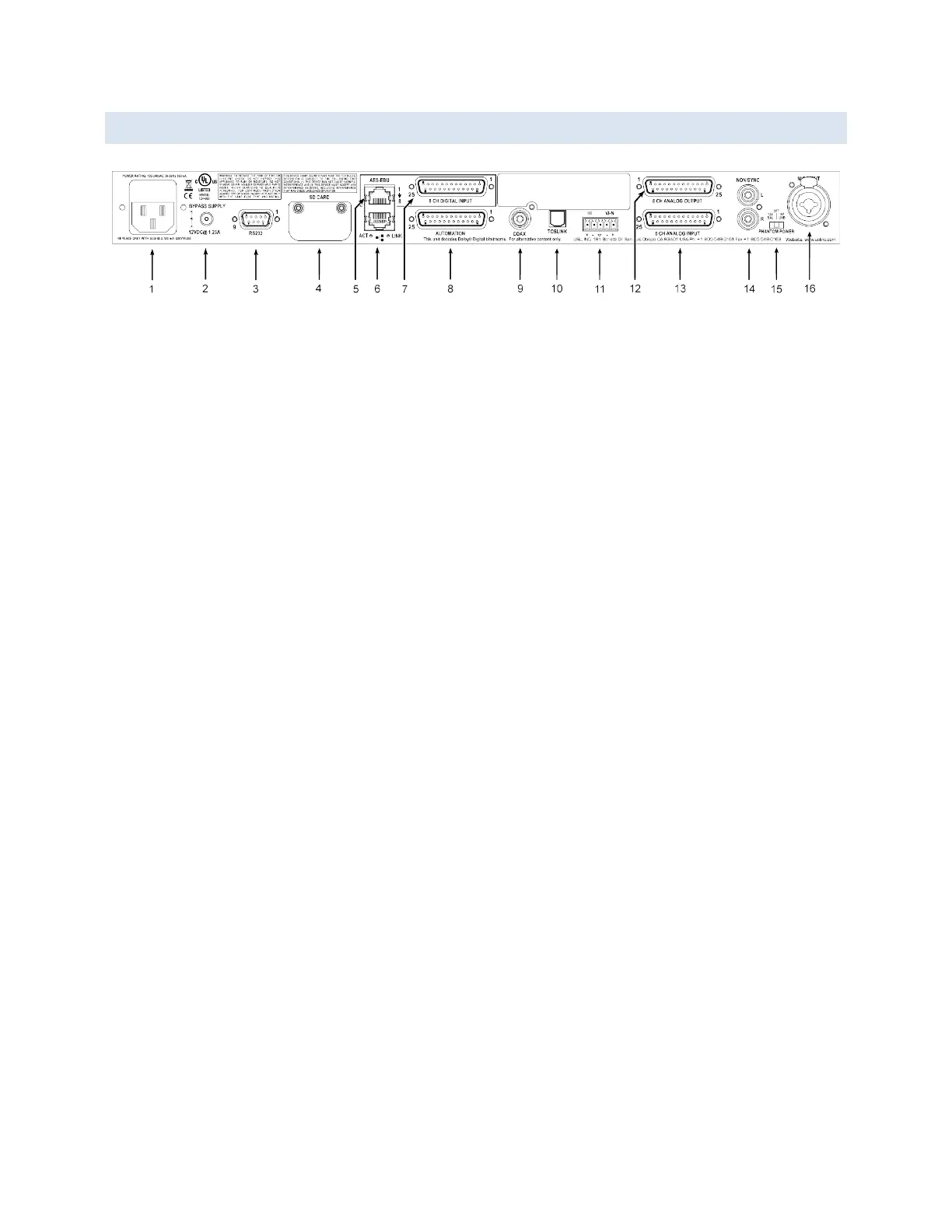

7.3 EIGHT CHANNEL ANALOG OUTPUT
1. Power entry Module – Accepts IEC-type line cord from 100–240 VAC power source. Also
contains a 500 mA Slo-Blow 5×20 mm fuse.
2. Bypass Power Supply – 12 VDC at 1.25 A.
3. RS-232 on a DE9F connector for communications with GUI or automation.
4. SD Card – Stores a backup copy of unit configuration. Can also be used to transfer settings
to another unit or read by the GUI to download to a connected unit.
5. AES/EBU input connector (RJ45) – parallel connections to the DB25F to the right.
6. Ethernet connector (RJ45) – Network communications with GUI, web browsers,
automation, etc.
7. AES/EBU input connector (DB25F) – Eight channels, DMA8 pin out.
8. Automation DB25F Connector – Receives automation pulses from other system
components. Ten Control input lines with ground and 5 V power provided to support a
standard pulse to ground system. The 5 V output can power a JSDV-80 remote volume
control that pulses control lines 9 and 10.
9. COAX - RCA connector for S/PDIF PCM or optional DTS® and Dolby Digital® decoding.
10. TOSLINK Port – Optical Fiber input (PCM) with optional DTS® and Dolby Digital® decoding.
11. Hearing Impaired/Visually Impaired-Narrative outputs.
12. Eight Channel Analog output provides six fixed outputs (L, C, R, LFE, Ls, Rs) and two that can
be set up as either Lc/Rc or Lrs/Rrs. Other output configurations, such as drive in, are
supported.
13. Six Channel Analog Input on DB25F – Balanced line inputs.
14. Non Sync (N/S) connectors – L and R analog inputs, RCA type connectors.
15. Public Address and Real Time Analyzer microphone phantom power supply selector, 12 V
balanced, 9 V unbalanced, and off.
16. Public Address and Real Time Analyzer microphone – XLR and ¼ stereo jack with
configurable phantom power.
