184050 Page 19

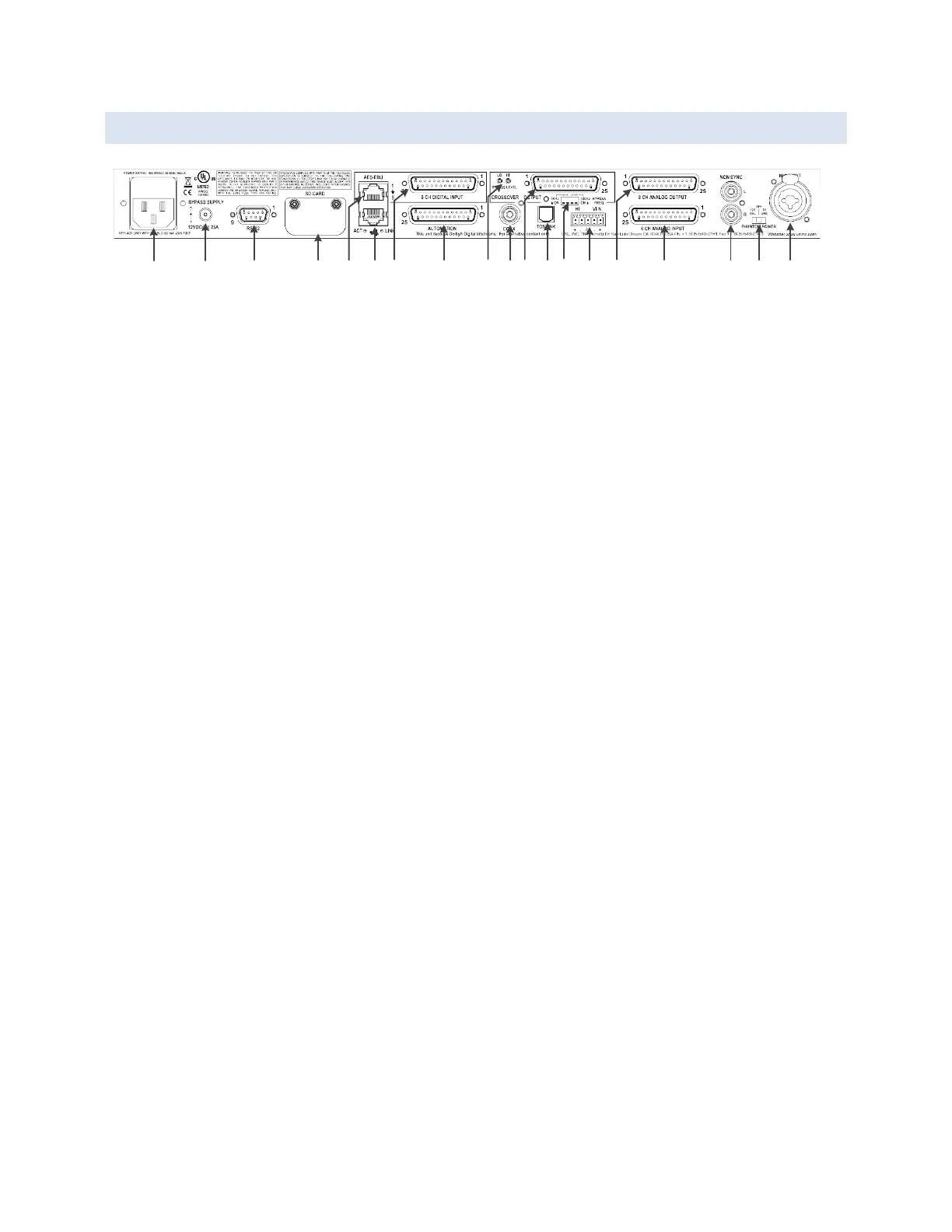

7.5 EIGHT CHANNEL ANALOG CROSSOVER OUTPUT (JSD-60LX OR JSD-60DX)
1
2
3
4
6
5
7
8
10
12
14
15
16 17
18
19
9
11
13
1. Power entry Module – Accepts IEC-type line cord from 100–240 VAC power source. Also
contains a 500 mA Slo-Blow 5×20 mm fuse.
2. Bypass Power Supply – 12 VDC at 1.25 A.
3. RS-232 on a DE9F connector for communications with GUI or automation.
4. SD Card – Stores a backup copy of unit configuration. Can also be used to transfer settings
to another unit or read by the GUI to download to a connected unit.
5. AES/EBU input connector (RJ45) – parallel connections to the DB25F to the right.
6. Ethernet connector (RJ45) – Network communications with GUI, web browsers,
automation, etc.
7. AES/EBU input connector (DB25F) – Eight channels, DMA8 pin out.
8. Automation DB25F Connector – Receives automation pulses from other system
components. Ten Control input lines with ground and 5 V power provided to support a
standard pulse to ground system. The 5 V output can power a JSDV-80 remote volume
control that pulses control lines 9 and 10.
9. Crossover bypass output levels for high and low bands.
10. COAX - RCA type connector (PCM) with optional DTS® and Dolby Digital®
decoding.
11. Crossover balanced stage high band (L, C, R) and LFE 2 outputs.
12. TOSLINK Port – Optical Fiber input (PCM) with optional DTS® and Dolby Digital® decoding.
13. Crossover bypass frequency and mode selection switches.
14. Hearing Impaired/Visually Impaired-Narrative outputs.
15. Eight channel analog outputs. Low band on screen channels, full range on surround
channels.
16. Six channel analog input on DB25F – Balanced line inputs.
17. Non Sync (N/S) connectors – L and R analog inputs, RCA type connectors.
18. Public Address and Real Time Analyzer microphone phantom power supply selector, 12 V
balanced, 9 V unbalanced, and off.
19. Public Address and Real Time Analyzer microphone – XLR and ¼” stereo jack with
configurable phantom power.
