Move the Handle to it’s farthest forward point on

the Main Frame, then cut the plastic end tie and

follow the drawing above for Bungee removal.

Next, remove the Upper Frame Plug to allow the

Bungee Shock Cord to be threaded through the

top of the frame. Note: You will need to rotate

the Belt/Bungee Pulley to align the holes properly.

Should the Belt drop o of during the Bungee

change, please refer to the previous pages for

“Attaching/Reattaching the Belt”.

Bungee Shock Cord

Bungee Attachment Point

Once Bungee Cord and Upper Frame Hole

are aligned, push the Bungee Cord up and

through the frame as shown

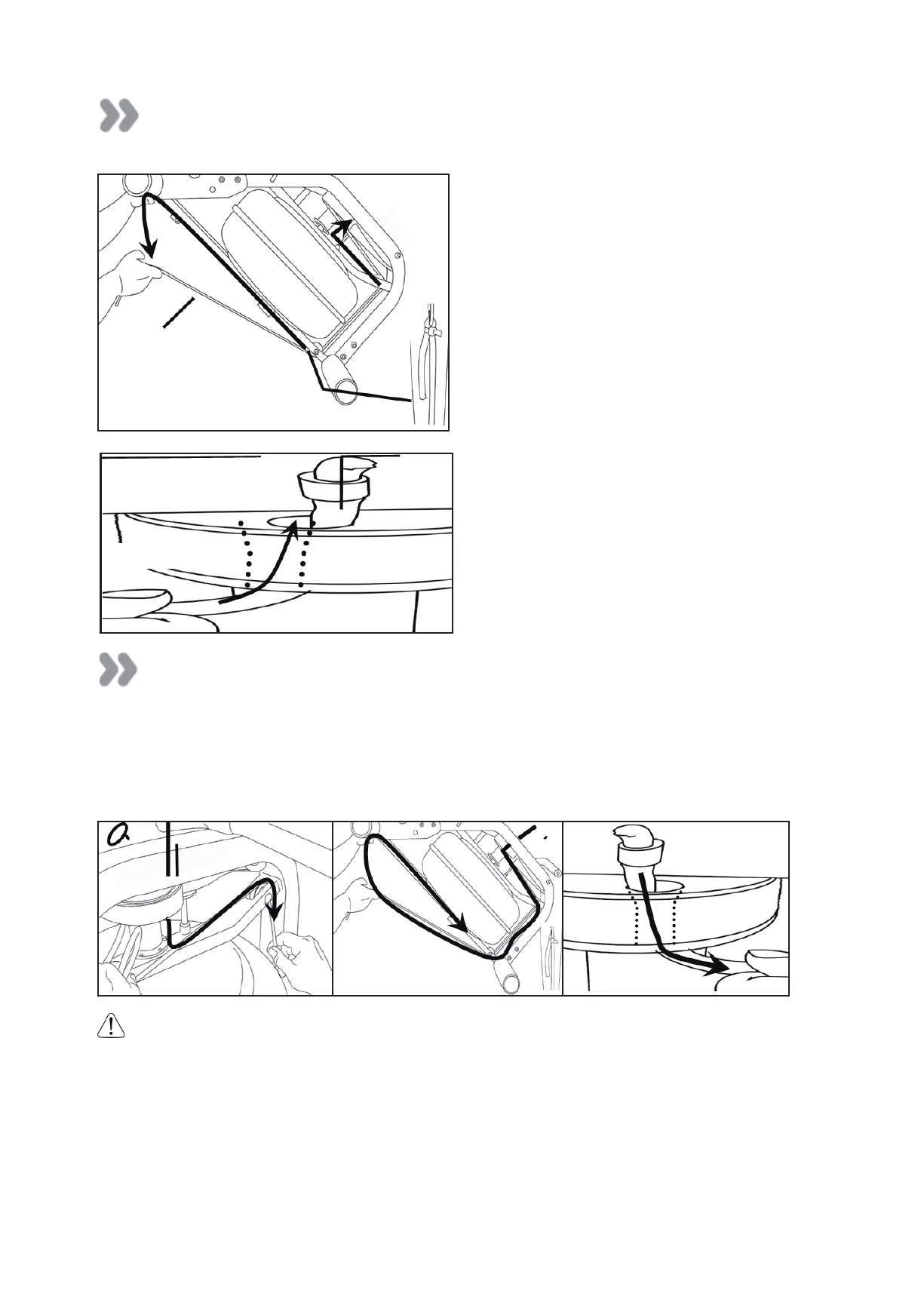

Replacing the Bungee Shock Cord

..........................................................................................................................................................

Removing the Bungee Shock Cord

Reinstall the Shock Cord through the Upper Frame, along the opposite side of Idle Wheel, through

the Mid Frame and Lower Bungee Pulleys and then tie o with plastic tie wrap to correct tension.

Replace Frame Plug.

Bungee Shock

Cord

Bungee Attachment Point

Pull Bungee

through until

seated securely

Tip: Correct Bungee tension is achieved when enough recoil is present for the Handle to easily

reach the front of the Pulley Belt Bracket at the far front of the frame. If the Handle will not

reach rearward to the end of the Seat Rail, the Bungee Cord is over-tightened and will require

adjustment.

Upper Frame Hole

Belt/ Bungee Pulley

Upper Frame Plug
