TR-24/30/36 INSTALL MANUAL
INSTALLATION

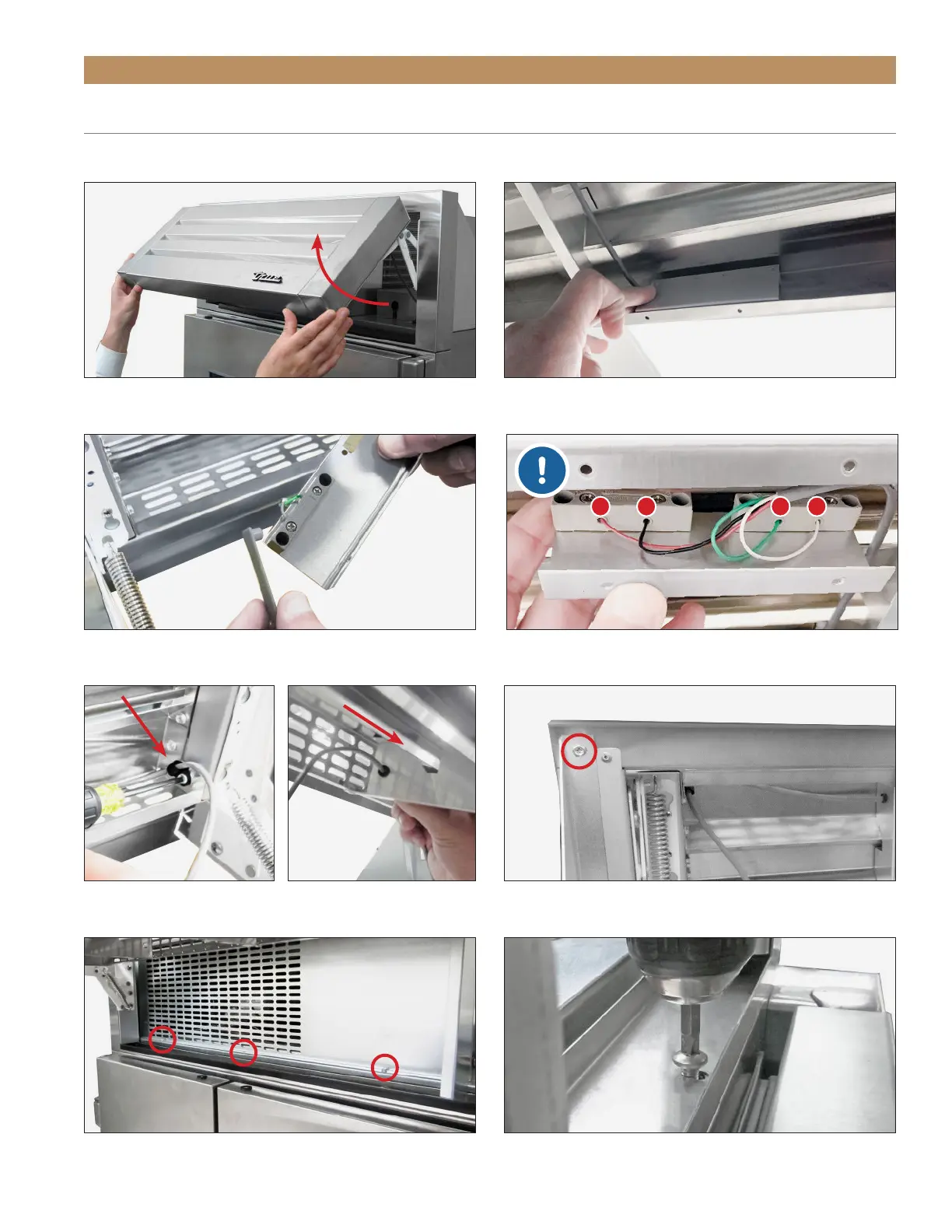

FIG. 6.
Remove the p-clip holding
the wire to the rainshield.
FIG. 3.
Locate the reed switch in the bottom of the rainshield.
FIG. 4.
Remove the plastic cover.
FIG. 2.
Pull the rainshield open.
FIG. 8.
Bracket screw location. Other bracket not shown.
FIG. 10.
Remove the screws from the metal channel.
FIG. 9.
Rainshield screw locations.
JOINING KIT INSTALLATION (CONT.)
FIG . 7.
Pull the reed switch wire
through the rainshield bushing.
FIG. 5.
Label the original wire locations
BEFORE
disconnecting
the reed switch.
1 2 3 4
