TEC_TM_009 REV. L_EN
01/02/2025
Page 36 of 76
TRUE RESIDENTIAL
®
#212530
INSTALLATION
JOINING KIT INSTALLATION

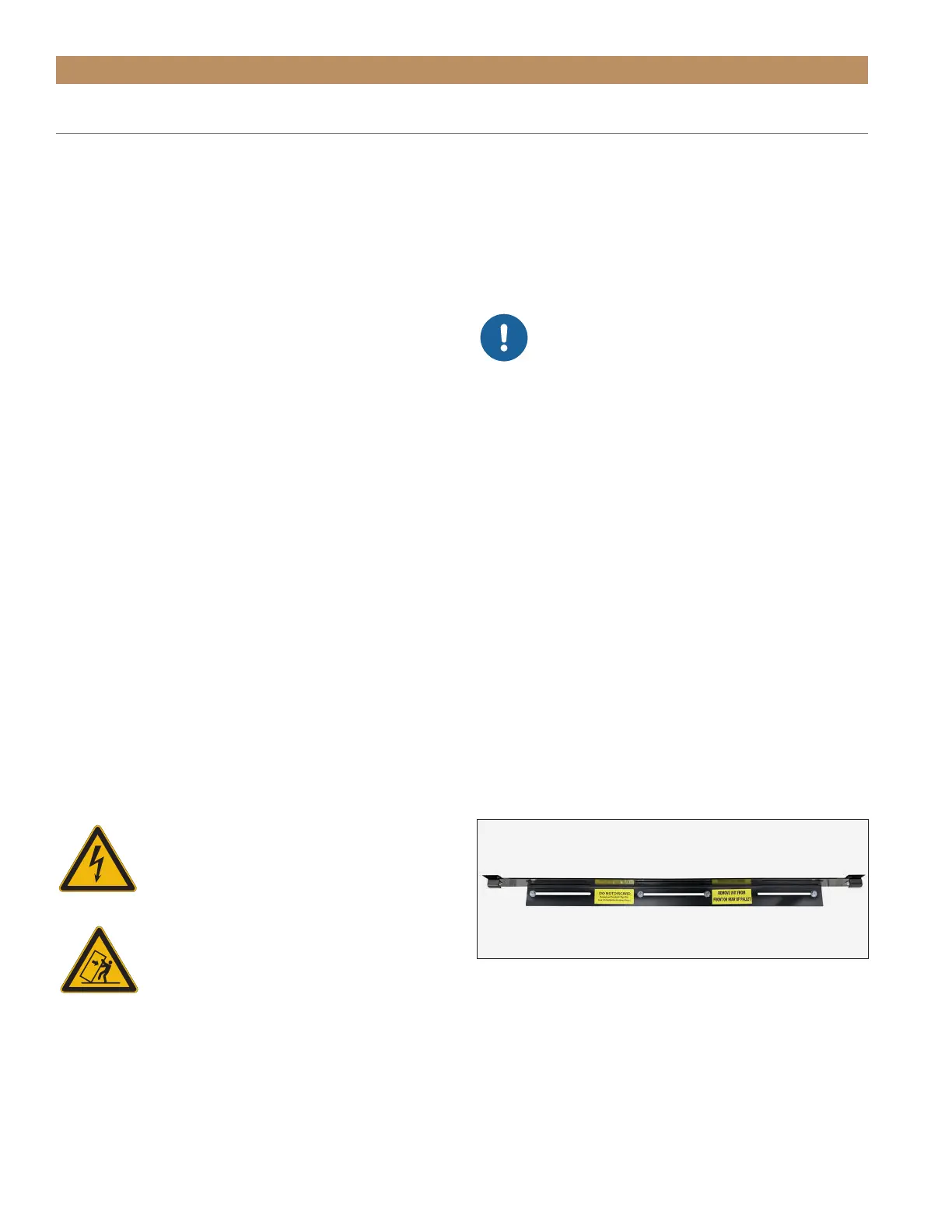

FIG. 1.
Anti-tip bracket. Be sure to install a bracket for each unit.
KIT CONTENTS
• (1) Joining Rainshield Assembly
• (1) Joining Kickplate
• Anti-Sweat Foam End Panels*
• Joining Bracket*
• 1/4-20 x 1" Hex Head Screws*
• 1/4" Split Lock Washers*
*Quantities vary by kit size.
REQUIRED TOOLS
Required tools include (but may not be limited to) the
following:
• Phillips Bit Driver or Screwdriver
• 7/16" Socket Wrench
• 1/4" Socket Wrench
• Tape
• Marking Utensil
• Drill
NOTE: MAKE SURE THE ANTI-TIP BRACKETS
ARE INSTALLED PER INSTALLATION MANUAL
INSTRUCTIONS. EACH UNIT WILL ALSO NEED
TO BE PROPERLY LEVELED PER INSTALLATION
MANUAL INSTRUCTIONS.
DANGER! Electrical shock or burn
hazard. Unplug the unit or turn off the
power supply before proceeding.
WARNING! TIP OVER HAZARD.
To avoid hazards from appliance
instability, be sure to install the anti-tip
brackets (see fig. 1) on each individual
unit per the installation manual
instructions. If the appliance is moved,
verify that the device is properly engaged
before the normal usage of the appliance
commences.
PROCEDURE
1. Remove the reed switch bracket. See figs. 2 and 3.
2. Remove the reed switch cover, and then
disconnect the reed switch. See figs. 4 and 5.
NOTE: IF FOUR (4) WIRES ARE
CONNECTED TO THE REED SWITCH,
BE SURE TO CLEARLY LABEL THE
WIRES’ ORIGINAL LOCATIONS BEFORE
DISCONNECTING THE REED SWITCH.
WIRE LOCATION IS CRITICAL TO THE
APPLIANCE’S OPERATION. SEE FIG. 5.
3. Remove the reed switch wire from the rainshield.
See figs. 6 and 7.
4. Remove the rainshield. See figs. 8-10.
5. Repeat steps 1-4 for each unit of the joined
installation.
6. Remove the inner magnet brackets (see figs. 11
and 12). Then, thread and tighten the magnet
bracket screws. Discard the magnet bracket.
NOTE: BE SURE TO RETURN MAGNET
BRACKET SCREWS TO THEIR ORIGINAL
POSITIONS; THE SCREWS SUPPORT THE
CASTOR ASSEMBLY HOUSING.
