Setting the acquisition trigger delay time

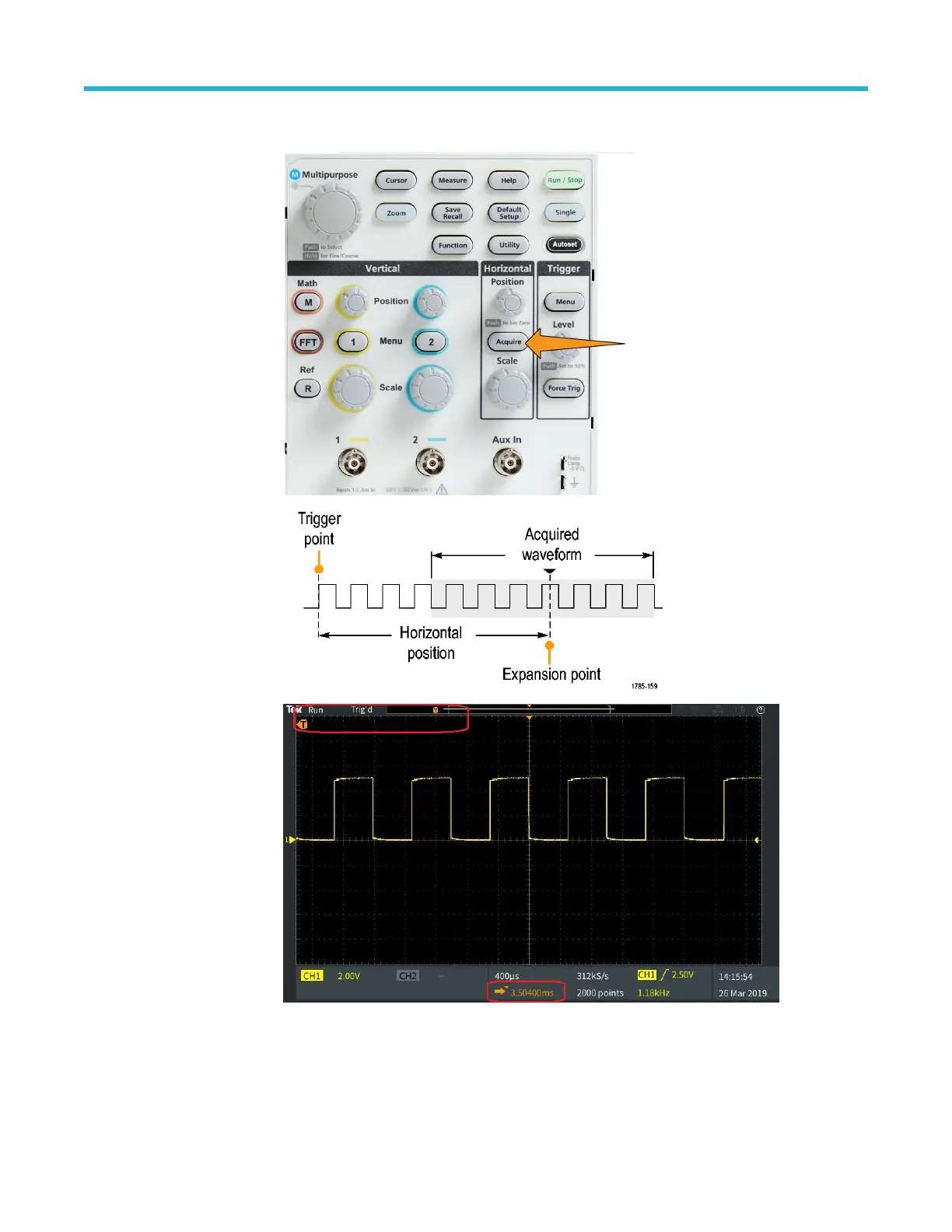

Push Acquire.

Push the Delay side-menu

button to toggle between On

and Off. When set to Off, the

expansion point is tied to the

trigger point so that horizontal

scale changes are centered

around the trigger point.

With Delay set to On, the

trigger point is disconnected

from the expansion point. T

urn

the Horizontal Position knob

to move the trigger point

away from the expansion point

(center graticule). The amount

of delay is shown in the

Horizontal Status area at the

bottom-center of the graticule,

referenced to 0 s (center

graticule).

The trigger point can move

off the screen; when this

happens, the trigger marker

changes to show the direction

of the trigger point.

Trigger point is off-screen

(delay time shown on readout

at bottom of the screen)

Trigger point is off-screen (delay time shown on readout at bottom of the screen

Acquisition setup

TBS1000C Series Oscilloscopes User Manual 72
