Setting the probe attenuation factor
Attenuation is the amount that the probe reduces or amplifies the input signal amplitude before sending it to the oscilloscope input. The
Attenuation submenu sets the probe attenuation factor for probes. The default attenuation is 10x.

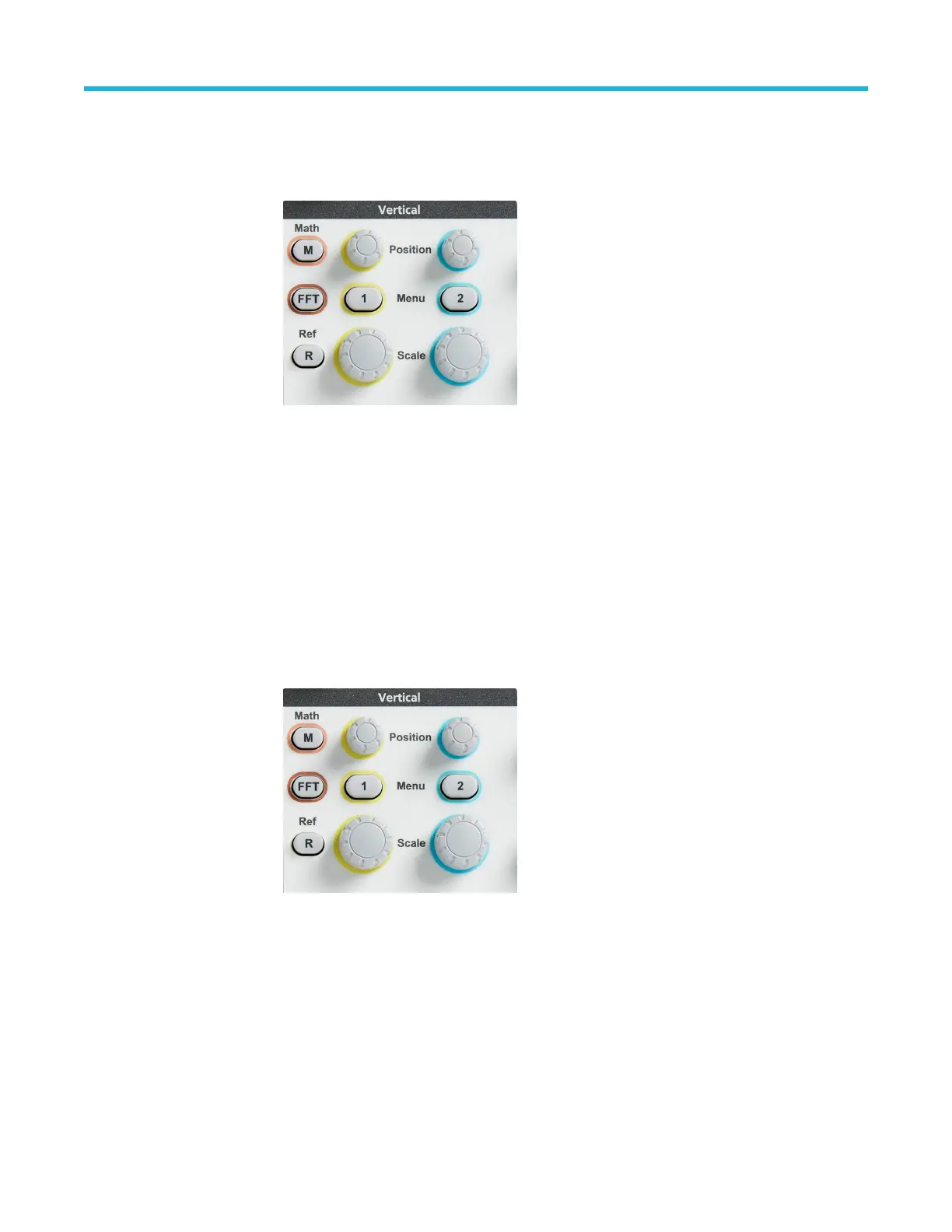

Push the Vertical Menu button
for the channel input that you
want to set.
Push the Probe Setup side
menu to display the Probe
Setup submenu.
Use the Multipurpose knob
to select and click the
Attenuation submenu item.
Use the Multipurpose knob
to select and change the
attenuation factor
.
Quickly setting the probe attenuation to 1X or 10X
The Set T
o 1X and Set To 10X submenu items let you quickly set the probe attenuation to either 1X or 10X.
Push the Vertical Menu button
for the channel input that you
want to set.
Push the Probe Setup side
menu to display the Probe
Setup submenu.
Use the Multipurpose knob to
highlight either Set T
o 1X or
Set To 10X submenu item.
Then click the Multipurpose
knob to set that value.
Setting channel input parameters
TBS1000C Series Oscilloscopes User Manual 58
