Setting the measure current mode for voltage probes
If you are measuring current by using a standard voltage probe to measure the voltage drop across a resistor
, use the Measure Current
field to set the Amps/Volts or Volts/Amps ratio of your measurement setup. For example, if you are measuring the voltage drop across a
2 Ω resistor to determine the current, set the V/A ratio to 2.

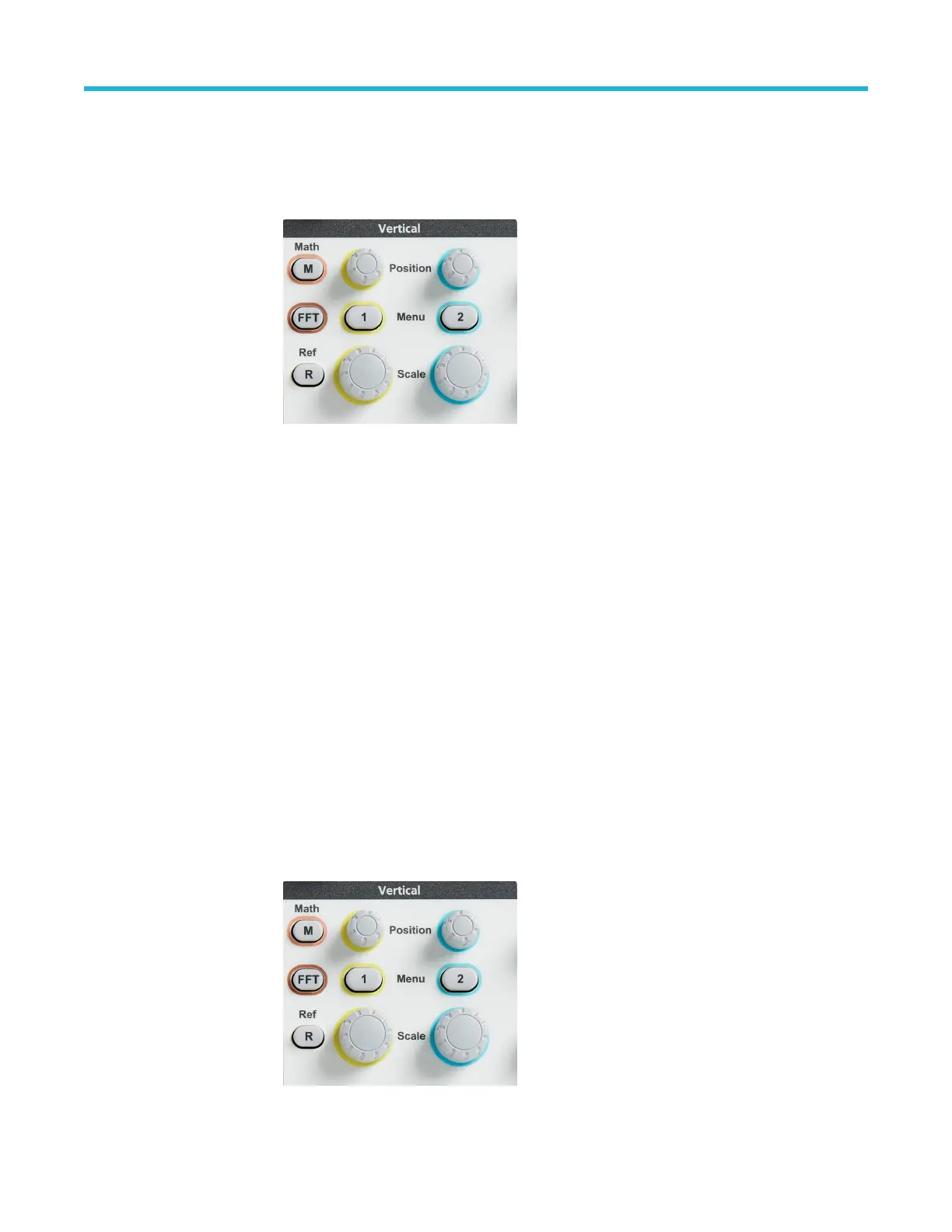

Push the Vertical Menu button
for the channel input that you
want to set.
Push the Probe Setup side
menu to display the Probe
Setup submenu.
Use the Multipurpose knob to
highlight the Measure Current
submenu item.
Push the Multipurpose knob to
toggle between Y
es and No.
If you select Yes, the area
below the Measure Current
submenu displays the Amps/
Volts or Volts/Amps ratio menu
item. Use the Multipurpose
knob to select and change
the current measurement
parameter.
Setting the input signal vertical offset
The Offset menu lets you set the vertical signal of
fset, which changes the waveform position relative to the oscilloscope ground (0 volts)
reference. This menu also lets you quickly set a signal’s vertical offset to 0. See The difference between vertical position and vertical
offset on page 60.
Push the Vertical Menu button
for the channel input that you
want to set.
Setting channel input parameters
TBS1000C Series Oscilloscopes User Manual 59
