Setting the oscilloscope bandwidth
Use this procedure to set the oscilloscope bandwidth. Bandwidth is the maximum frequency that an oscilloscope can accurately display
and measure. The oscilloscope gradually attenuates (reduces) the signal level of frequencies that are higher than the bandwidth. This
means that although you can display signals that are above the bandwidth limit, their amplitude values and other characteristics are not
guaranteed to be accurate.

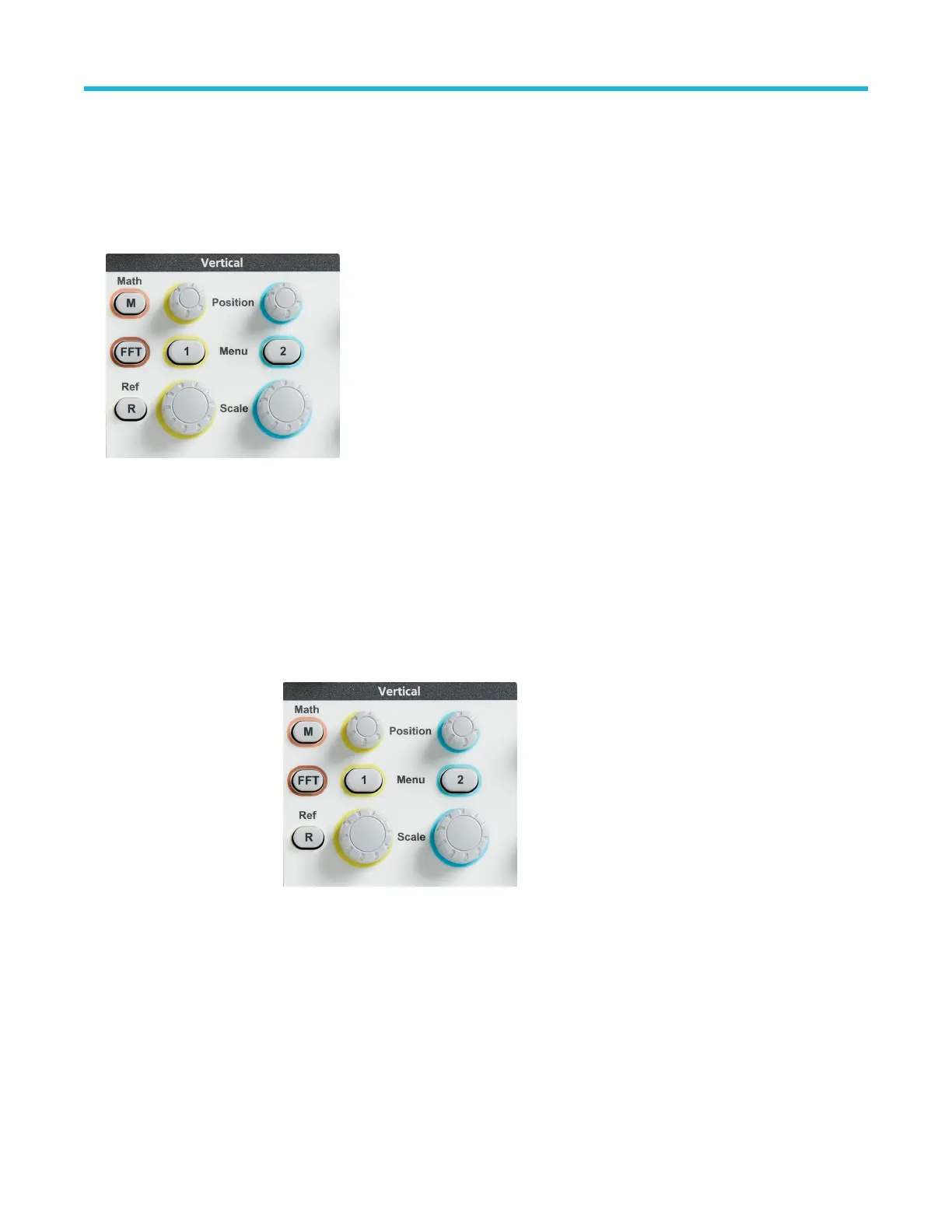

1. Push the Vertical Menu button for the channel input that you want to set.
2. Push -More- Page 1/2 side-menu button.
3. Push the Bandwidth side-menu button.
4. Use the Multipurpose knob to select and click the bandwidth setting.
• Full sets the bandwidth to the maximum bandwidth of which the oscilloscope is capable.
• 20 MHz sets the bandwidth to 20 MHz.
Setting the probe type voltage or current
The Probe T
ype submenu sets the type for probe that is connected to the oscilloscope. The default probe type is Voltage. The other valid
probe type is current.
Push the Vertical Menu button
for the channel input that you
want to set.
Push the Probe Setup side
menu to display the Probe
Setup submenu.
Use the Multipurpose knob to
select and click
Probe Type
submenu item.
Select and click the probe type
(V
oltage or Current).
Setting channel input parameters
TBS1000C Series Oscilloscopes User Manual 57
