Setting channel input parameters

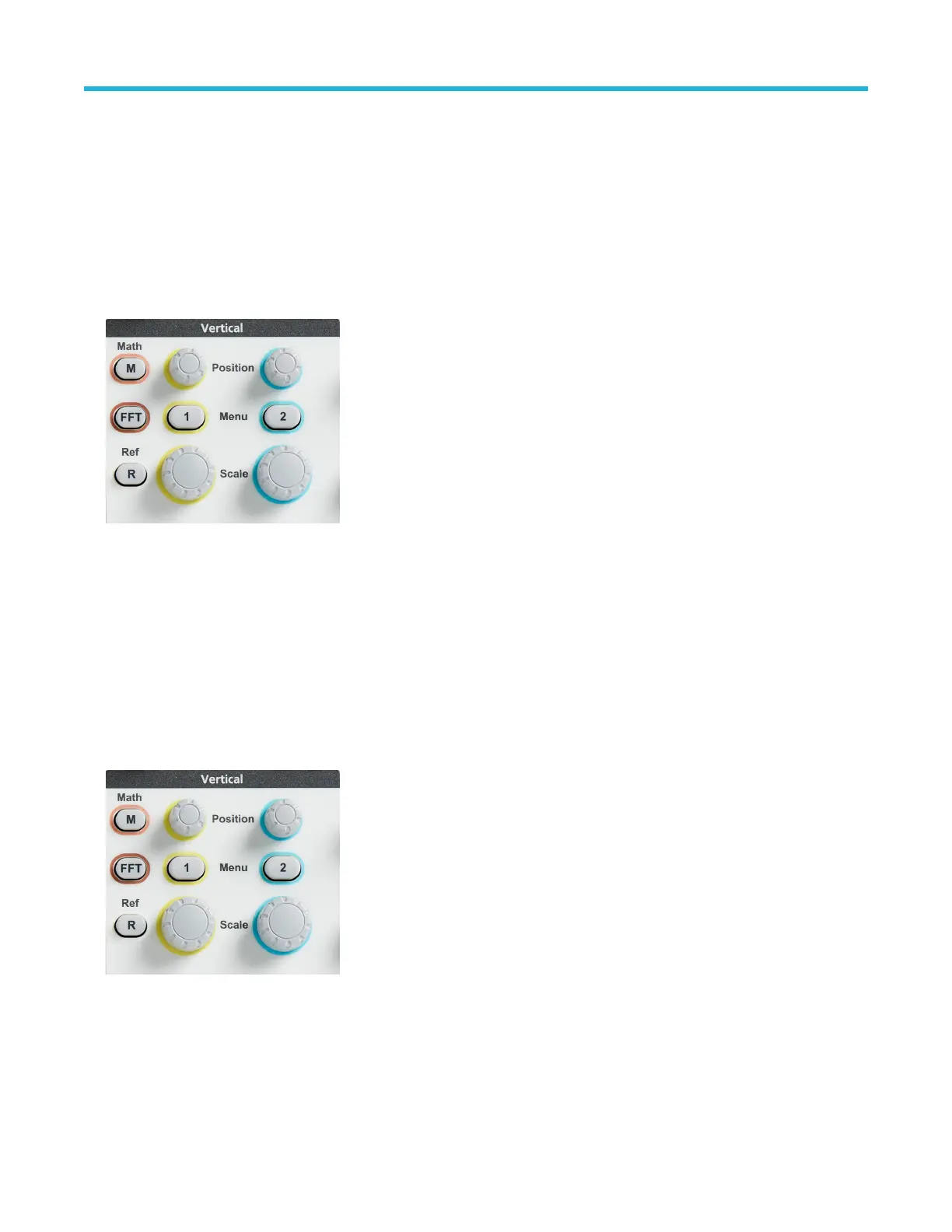

Use the Vertical Menu buttons to select the waveform to be displayed or open the menu options used to set the input parameters for each
channel. Setting for each channel are independent of the other channel.
Setting input signal coupling
Input signal coupling sets how the input signal is passed to the oscilloscope sampling circuit.
1. Push the Vertical Menu button for the channel input that you want to set.
2. Push -More- Page 1/2 side-menu button.
3. Push the Coupling side-menu button.
4. Use the Multipurpose knob to select and click the coupling type:
DC coupling passes both AC and DC signal components.
AC coupling blocks the DC component and passes only the AC signal.
Inverting the input signal
Use this procedure to invert (flip vertically) the signal. A typical reason to invert a signal is to use the inverted signal to create a math
waveform.
1. Push the Vertical Menu button for the channel input that you want to set.
2. Push -More- Page 1/2 side-menu button.
3. Push the Invert side-menu button to toggle between Off for normal operation and On to invert the polarity of the signal in the
preamplifier
.
Setting channel input parameters
TBS1000C Series Oscilloscopes User Manual 56
