Connecting the probe to the circuit
Use the standard accessories included with the probe to connect to your circuit.
Warning: T
o avoid electric shock when using the probe or accessories, keep fingers behind the finger guard of the probe body
and accessories.
To reduce risk of shock, ensure the ground lead and ground spring are fully mated before connecting the probe to the circuit under
test.

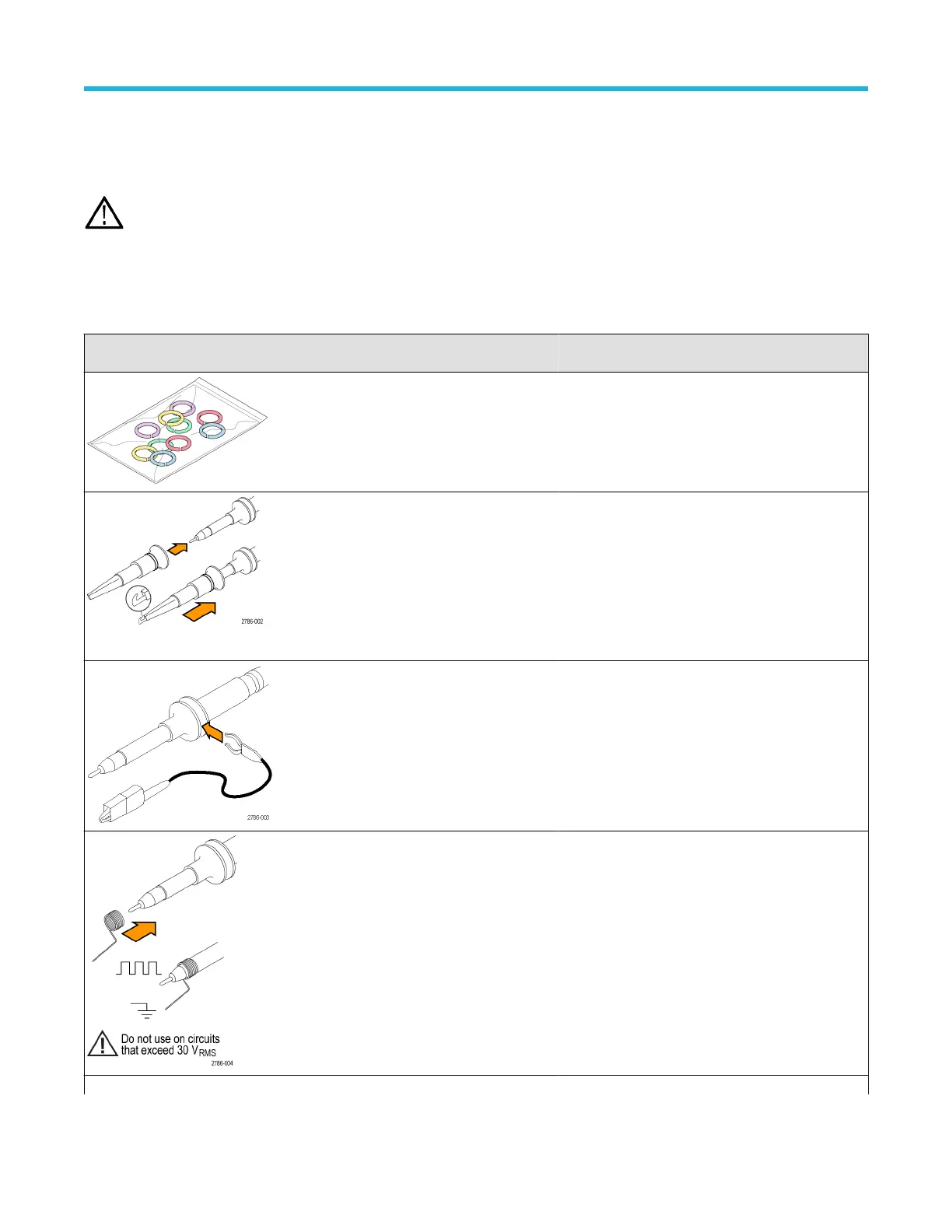

Standard accessories
The accessories included with the probe are shown below
.
Item Description
Color bands
Use these bands to identify the oscilloscope channel
at the probe head.
Reorder T
ektronix part number 016-0633-xx (5 pairs)
Hook tip
Press the hook tip onto probe tip and then clamp the
hook onto the circuit.
Reorder T
ektronix part number 013-0362-xx
Ground lead, with alligator clip
Secure the lead to the probe head ground and then
to your circuit ground.
Reorder T
ektronix part number 196-3521-xx
Ground spring
The ground spring minimizes aberrations on high-
frequency signals caused by the inductance of the
ground path, giving you measurements with good
signal fidelity
.
Attach the spring to the ground band on the probe tip.
You can bend the spring out to ~0.75 in. away from
the signal test point.
Reorder Tektronix part number 016-2028-xx (2 ea.)
Table continued…
Operating requirements
TBS1000C Series Oscilloscopes User Manual 29
