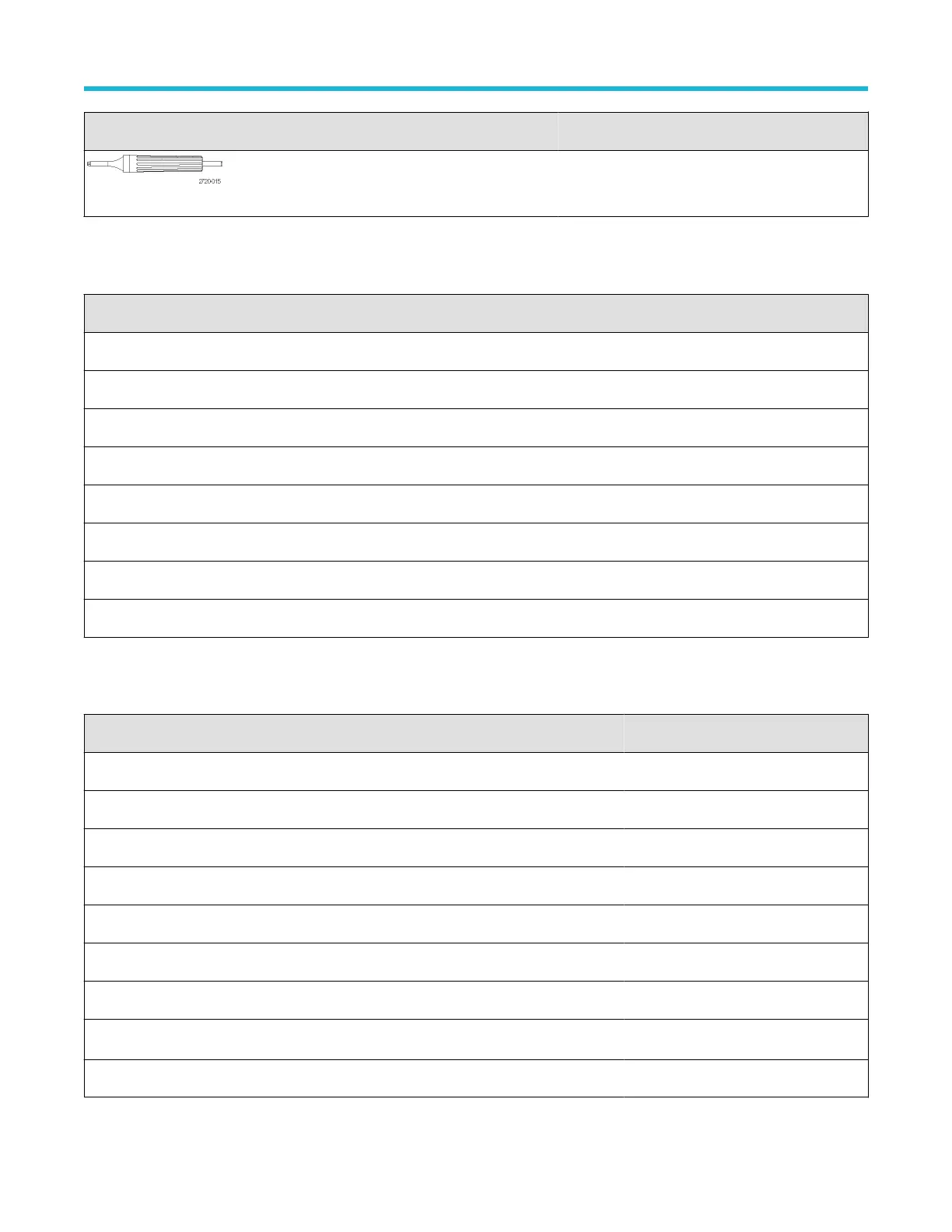

Item Description
Adjustment tool
Reorder T
ektronix part number 003-1433-xx
Optional accessories
Y
ou can order the following accessories for your probe.
Accessory Part number
Alligator Ground Lead, 12 in 196-3512-xx
6” Clip-on Ground Lead 196-3198-xx
Ground Spring, Short, 2 ea. 016-2034-xx
MicroCKT Test Tip 206-0569-xx
Micro Hook Tip 013-0363-xx
Universal IC Cap 013-0366-xx
Circuit Board Test Point/PCB Adapter 016-2016-xx
Wire, spool, 32 AWG 020-3045-xx
Specifications
Table 1: Electrical and mechanical specifications
Characteristic TPP0100 TPP0200
Bandwidth (–3 dB) DC to 100 MHz DC to 200 MHz
System attenuation accuracy 10:1 ±3.2% 10:1 ±3.2%
Compensation range 15 pF – 25 pF 15 pF – 25 pF
System input resistance @ DC 10 MΩ ±1.5% 10 MΩ ±1.5%
System input capacitance <12 pF <12 pF
System rise time (typical) <3.5 ns <2.3 ns
Propagation delay ~6.1 ns ~6.1 ns
Maximum input voltage 300 V
RMS
CA
T II 300 V
RMS
CAT II
Cable length 1.3 m 1.3 m
Operating requirements
TBS1000C Series Oscilloscopes User Manual 30
