7 MD4 HD NATIVE User Manual

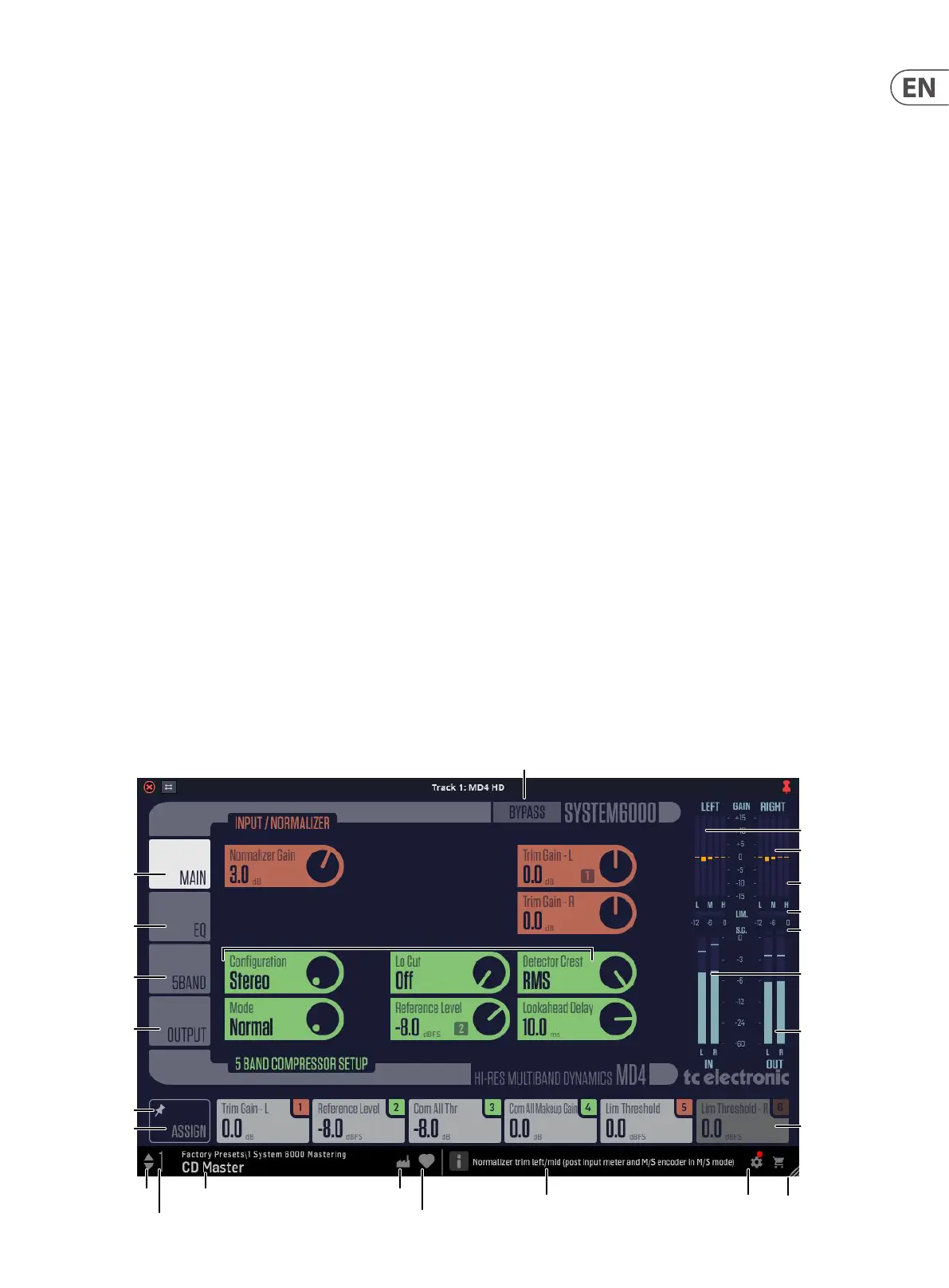

5. User Interface
5.1 Overview
There are four tabs along the left edge of the interface, that bring up various
pages of controls. The controls and features are described in more detail in the
following pages. As a general note, the parameters, controls, and graphs are
color-coded as shown below:
The top part of the display:
• • Bypass: Press this to bypass or engage the MD4 HD NATIVE. This makes it
easy for you to listen and compare the overall eect of your work
• • The EQ and compressor can be individually bypassed using the ON
button (at top right) in each of their control pages
Tabs on the Left
• • Main: This brings up controls for the normalizer gain, trim gain left,
right (orange), and controls (green) for initial setup of the compressor
• • EQ: The parametric equalizer, with controls for adjusting the frequency,
gain, EQ type, low, mid and high, EQ bypass. The bands are color coded
• • Compressor: Controls (green) for compressor threshold, ratio, makeup
gain, attack, release, defeat threshold, defeat ratio, with compressor
bypass
• • Output: Limiter controls (orange) for gain, soft clip L/R, threshold L/R.
Output controls (green) for output gain, compare enable, and compare
gain
Controls
• • Any of the circular controls can be adjusted either by dragging on the
dials or numeric value in the box, or by double-clicking and entering a
numeric value.
Meters
• • Gain reduction meters for compressor: these show the low, low-mid,
mid, high-mid, and high for left/mid and right/side. The meter range
is (+/- 15 dB). Note The horizontal orange line on the gain reduction
meters indicates the oset of each band. In Normal, Parallel and Parallel
UL mode, the GR meters are oset by the Makeup Gain of each band.
This gives an indication of the overall eect of the Compressor gain
reduction and the Makeup Gains. In DXP mode, the osets indicate the
boost that is applied to signals below the threshold. This depends on the
settings of Threshold, Steer and Makeup Gain.
• • Input L/R meters (0 to -60 dB range)
• • Output L/R meter (0 to -60 dB range with limiter soft clip indication)
• • Output Limiter meters (0 to -12 dB range)
• • Use the input and output gain/trim controls in the MAIN and OUTPUT
pages to adjust the levels if required.
Near the Bottom
• • Assign Focus Fields: You can place your own favorite set of parameters in
the 6 focus elds. (See section 5.2.1 for more details)
• • The EQ and compressor (see the following pages), each have a horizontal
row of parameters just below their controls, such as threshold, gain, etc.
If you click on any of these, the parameters are shown in this focus elds
area. Click again to return the focus elds to your assigned elds.
Along the Bottom Left
• • Preset number, preset name, preset type, preset favorite, preset up/
down
Along the Bottom Middle:
• • Tool Tips shows useful information about the current selection
Bottom Right Corner:
• • Setup, shopping cart, user interface size adjustment
Global Bypass
Tool Tips Window
Window Size
Adjustment
Setup and
Cart
Input
Meter
L/R
Output
Meter
L/R
Focus
Fields
1-6
Gain
Reduction
Meters
Left/Mid
Right/Side
5 Bands
Limiter
Soft Clip
Input Trim
Controls
Normalizer
Main Tab
EQ Tab
5 Band
Output
and Limiter
Assign
Pin
Preset Up/Down Preset Name Preset Type
Preset Number Preset Favorite
Compressor Controls
Focus Fields
