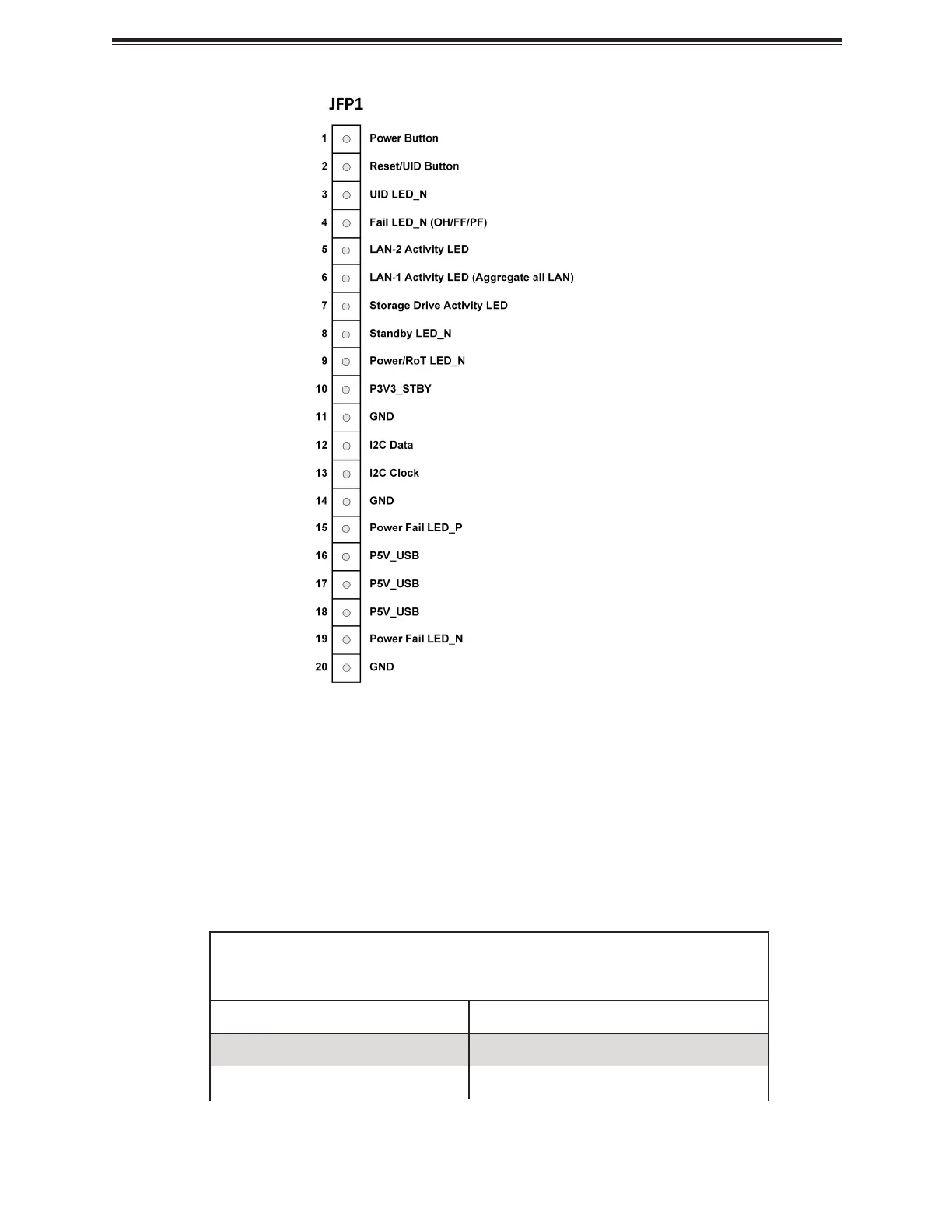

Figure 2-41. Front Control Panel Pin Definitions
Power On and BMC/BIOS Status LED Button
The Power On and BMC/BIOS Status LED button is located on pin 1 of the front control panel
header located at JFP1 on the X14SBH-AP motherboard. Momentarily contacting pin 1 of JFP1
will power on/off the system or display BMC/BIOS status.
For a detailed diagram of the X14SBH- AP motherboard, see the layout under "Quick
Reference" on page 12.
Power Button
BMC/BIOS Status LED Indicator
Status Event
Green: Solid on System power on
BMC/BIOS blinking green at 4 Hz BMC/BIOS checking
56
X14SBH-AP: Component Installation
