Chapter 3: Maintenance and Component Installation

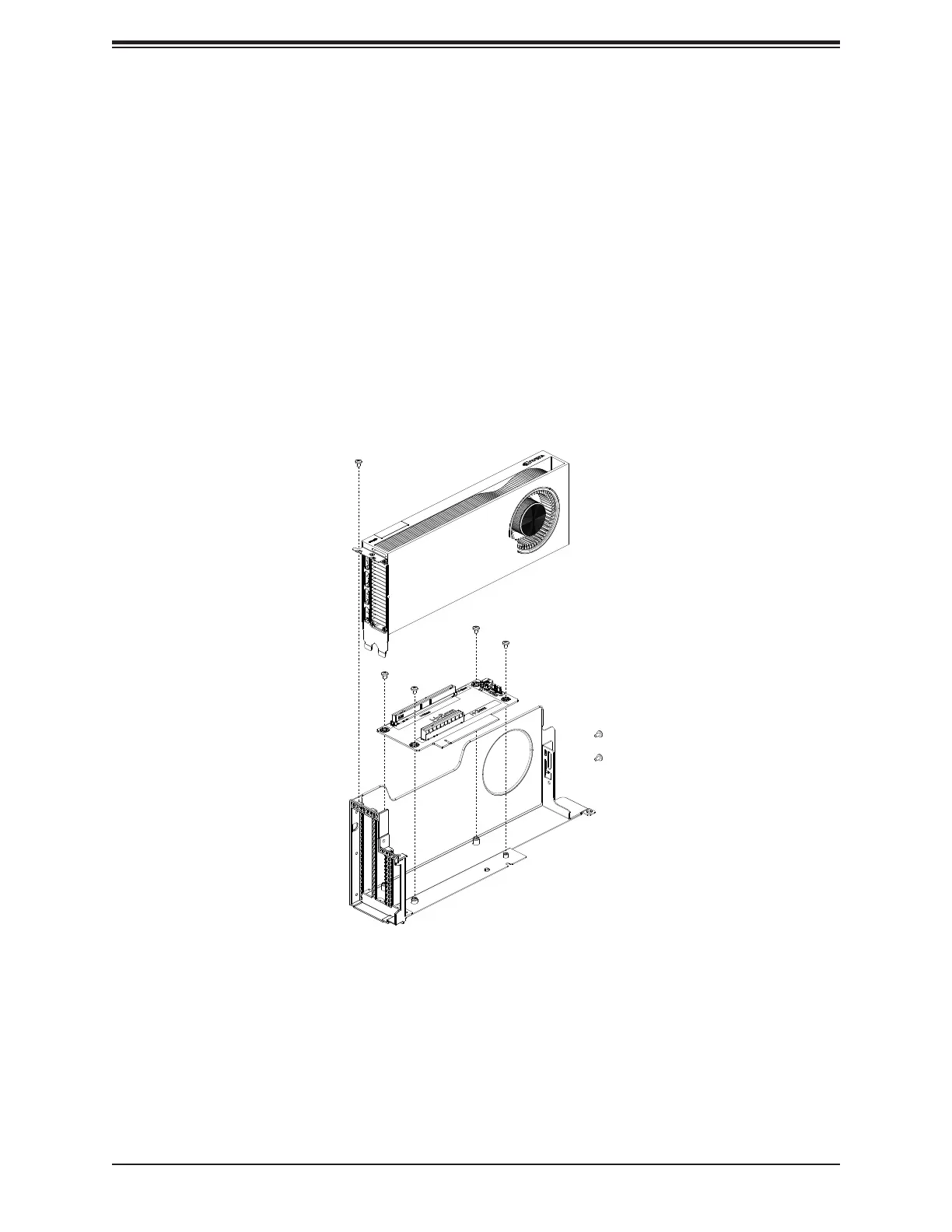

Figure 3-10. Installing a GPU into a Riser

GPUs

Installing GPUs

Each of the ve nodes in the AS -3015MR-H5TNR can support one double-width PCIe GPU

accelerator card. Installation of the GPU into a riser to t in the chassis bay is shown below.

Installing a GPU

1. Power down and remove the node from the chassis as described in the previous

section, then lay it on a at surface. Remove the PCIe bracket from the node.

2. Install the riser into the bracket with four screws, then insert the GPU into slot 1 and

secure it with two screws as shown below.

Support for up to 1 double-width PCIe GPU accelerator card
