Chapter 3: Maintenance and Component Installation
Expansion Cards
Each node in the AS -3015MR-H5TNR includes one PCIe 5.0 p40-x4 slot to support a MicroLP
1 GbE/10 GbE/25 GbE LAN card.
Installing Expansion Cards
1. Power down and remove the node from the chassis as described in the previous
section, then lay it on a at surface.
2. Plug the MicroLP LAN card into the slot on the motherboard and secure it with two
screws as shown in gure below.
3. Replace the node back into the chassis and power it back on.

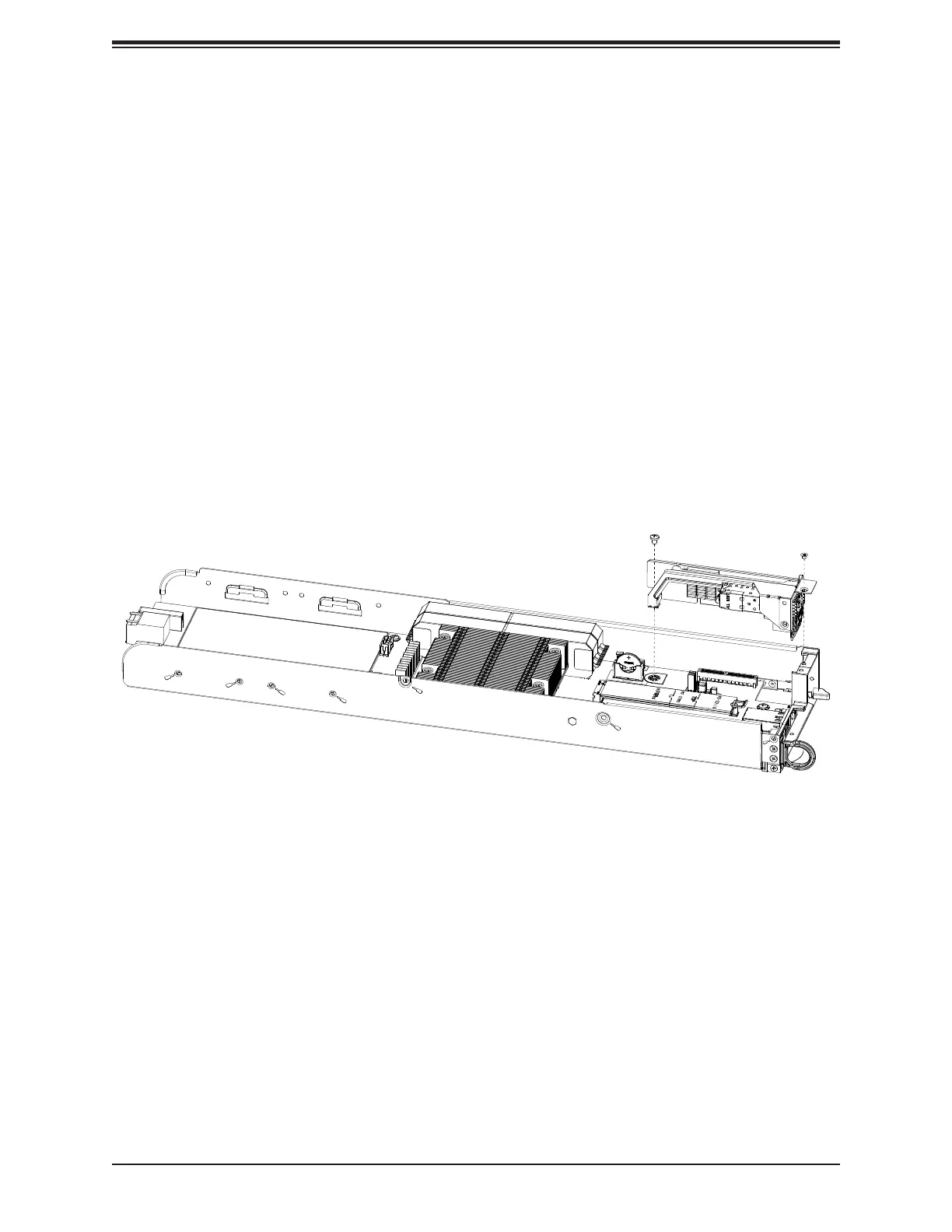

Figure 3-9. Installing a MicroLP LAN Card
