Chapter 3: Maintenance and Component Installation

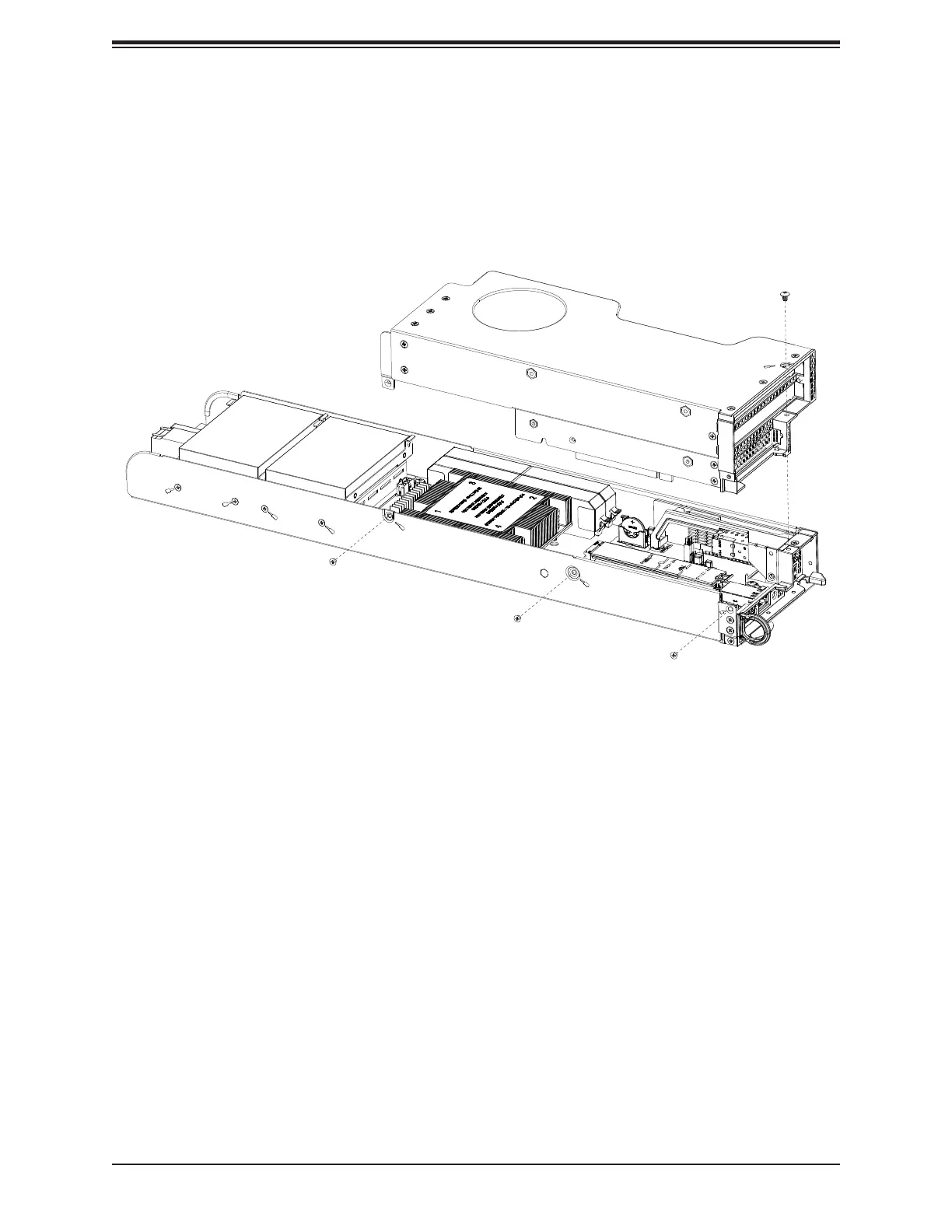

Figure 3-11. Installing a GPU into a Node

3. Install the GPU/bracket assembly into the node and secure with four screws as shown

below.

4. Push the node back into the empty chassis bay.

5. Power up the node.

Optional: Two PCIe 5.0 x8 Slots for GPU and/or Network AOC Installation

Jumper J3 on the AOM-RSC-S2-7G5 riser comes with an auto-detect setting (pins 1-2 by

default). For the option of two PCIe 5.0 x8 slots, jumper J3 needs to be set to pins 2-3.

If both add on cards to be installed have a total power consumption of over 70 W, CBL-

PWEX-1136-40 needs to be connected between the motherboard connector JGWR1 and

the riser connector JPWR1.
