Chapter 3: Maintenance and Component Installation

Storage Drives

Each node can support two internal xed 2.5" PCIe 5.0 NVMe and two internal xed 2.5"

SATA storage drives. A node must be removed from the system when installing or removing

a drive it contains.

To support an optional top layer of drives, a drive case (MCP-240-30104-0N) and a SATA/

power cable (CBL-SAST-1320YU2-85) are required.

Installing a Drive in a Node

1. Power down and remove the node from the chassis as described in the previous section

and lay it on a at surface.

2. Remove two screws from each side of the drive that secure it to the node.

3. Lift the drive from the node.

4. Install a new drive in the same orientation, then secure it to the node with the screws

previosuly removed.

5. Install the node back into the chassis.

Important! Except for short periods of time while swapping nodes, do not operate the server

with the node bays empty. In the unlikely event of a node failure, remove the failed node and

replace it with the dummy node that was included with the system.

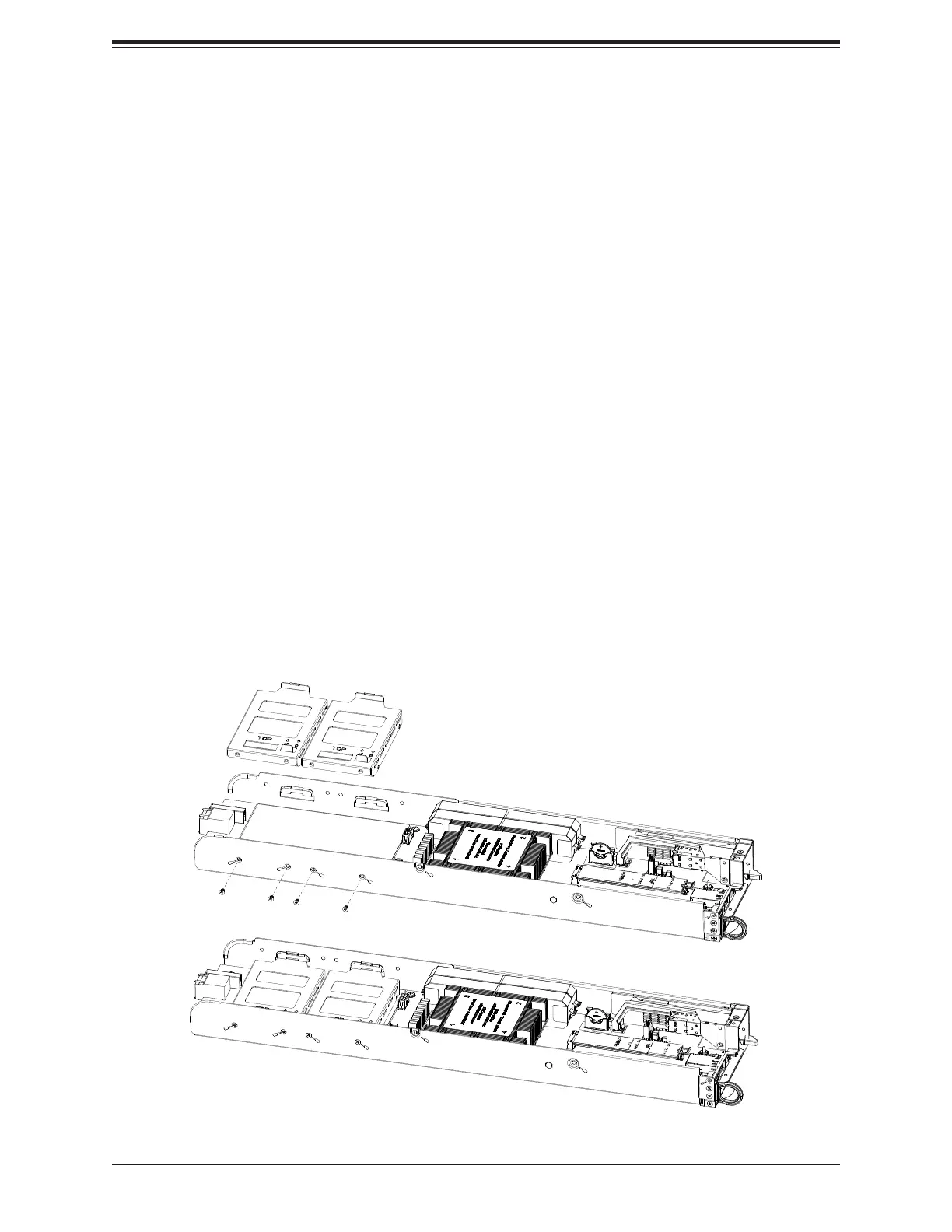

Figure 3-7. Installing Storage Drives
