Je bekijkt pagina 19 van 94
19
Chapter 2 Installation and Setup
1
2
A
B
Latch
Latch
a
CPU Key (on the
processor)
CPU Key (on the
carrier)
CPU Key (on the
processor)
CPU Key (on
the carrier)
b

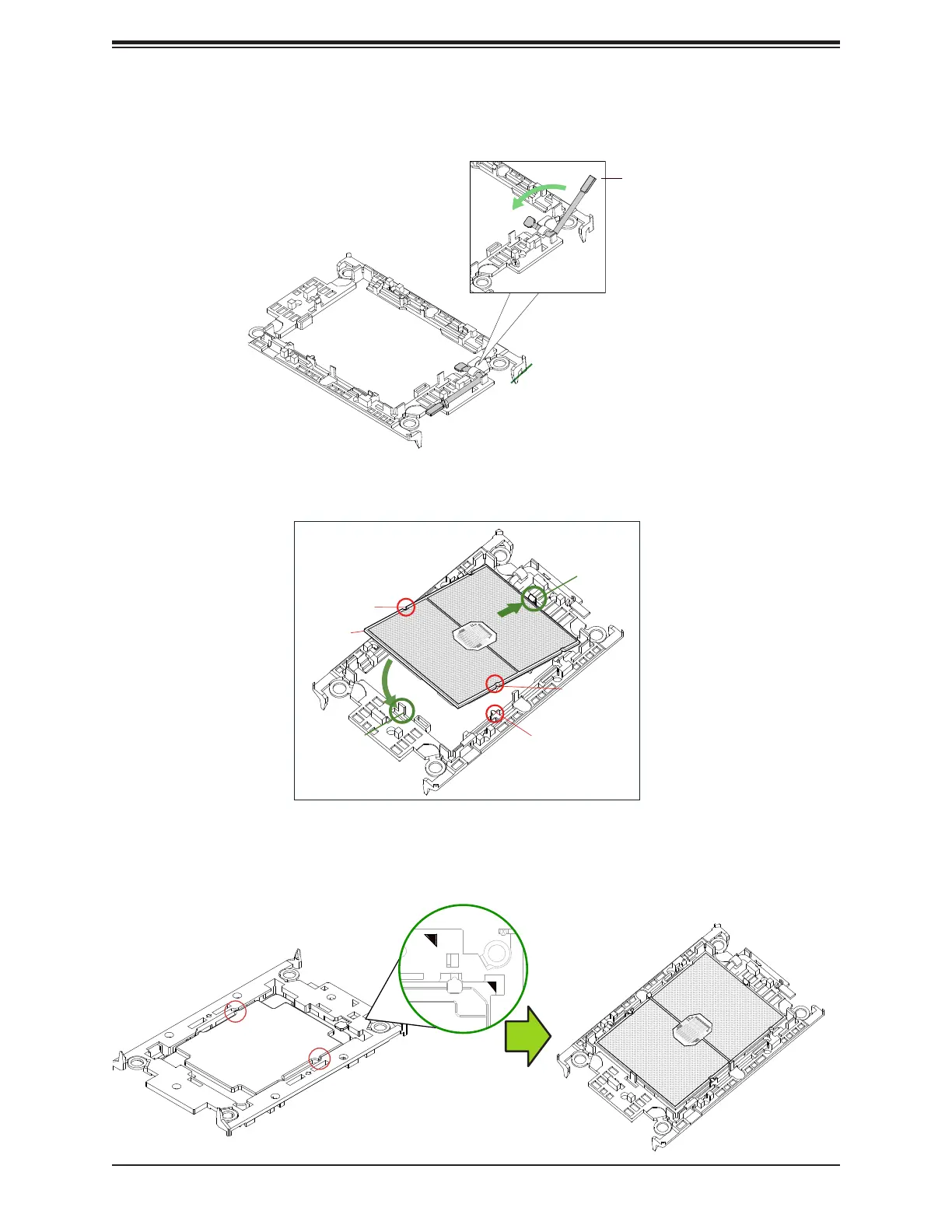

5. Carefully place one end of the processor under latch 1 on the carrier, and then press the
other end down until it snaps into latch 2 and is properly seated on the carrier.
Processor Carrier Assembly
(Top View)
Processor Carrier Assembly
(Underside view)
3. Locate the lever on the carrier and, if necessary, press it down as shown below.
4. Align the CPU keys on the processor (A & B) with those on the carrier (a & b) as shown
below.
Lever
