SuperBlade Server SBI-420P-1(C2/T3)N User's Manual

18

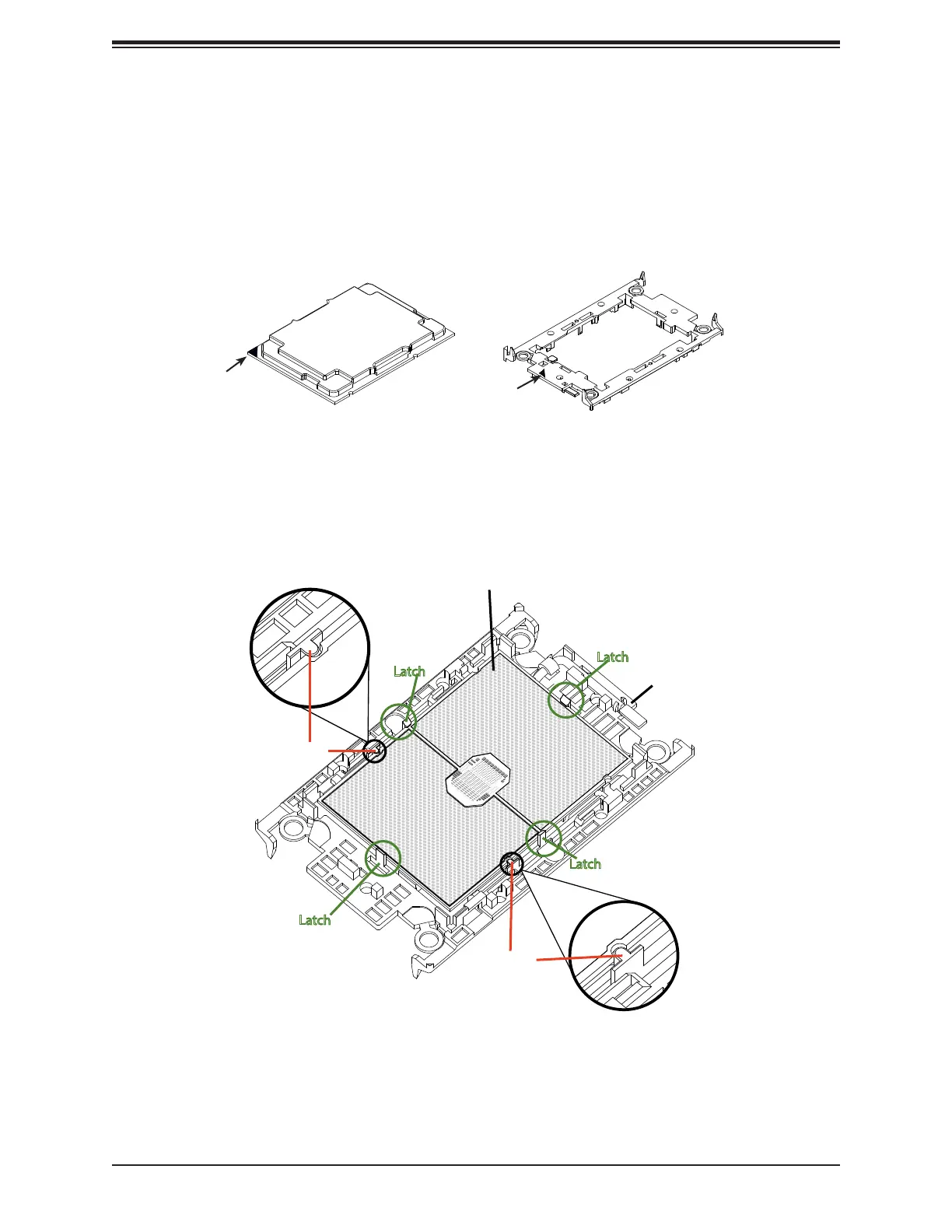

The Processor Carrier Assembly

The processor carrier assembly is comprised of the processor and the processor carrier.

1. Hold the processor with the land grid array (LGA, gold contacts) facing down. Locate the

gold triangle at the corner of the processor and the corresponding hollowed triangle on

the processor carrier as shown below. These triangles indicate the location of pin 1.

Latch

Processor (Reverse Side Up)

Carrier (Top Side Up)

CPU Key

Latch

Pin 1

Processor

Pin 1

Carrier

2. Turn the processor over (with the gold LGA up). Locate the CPU keys on the processor

and the four latches on the carrier as shown below.
