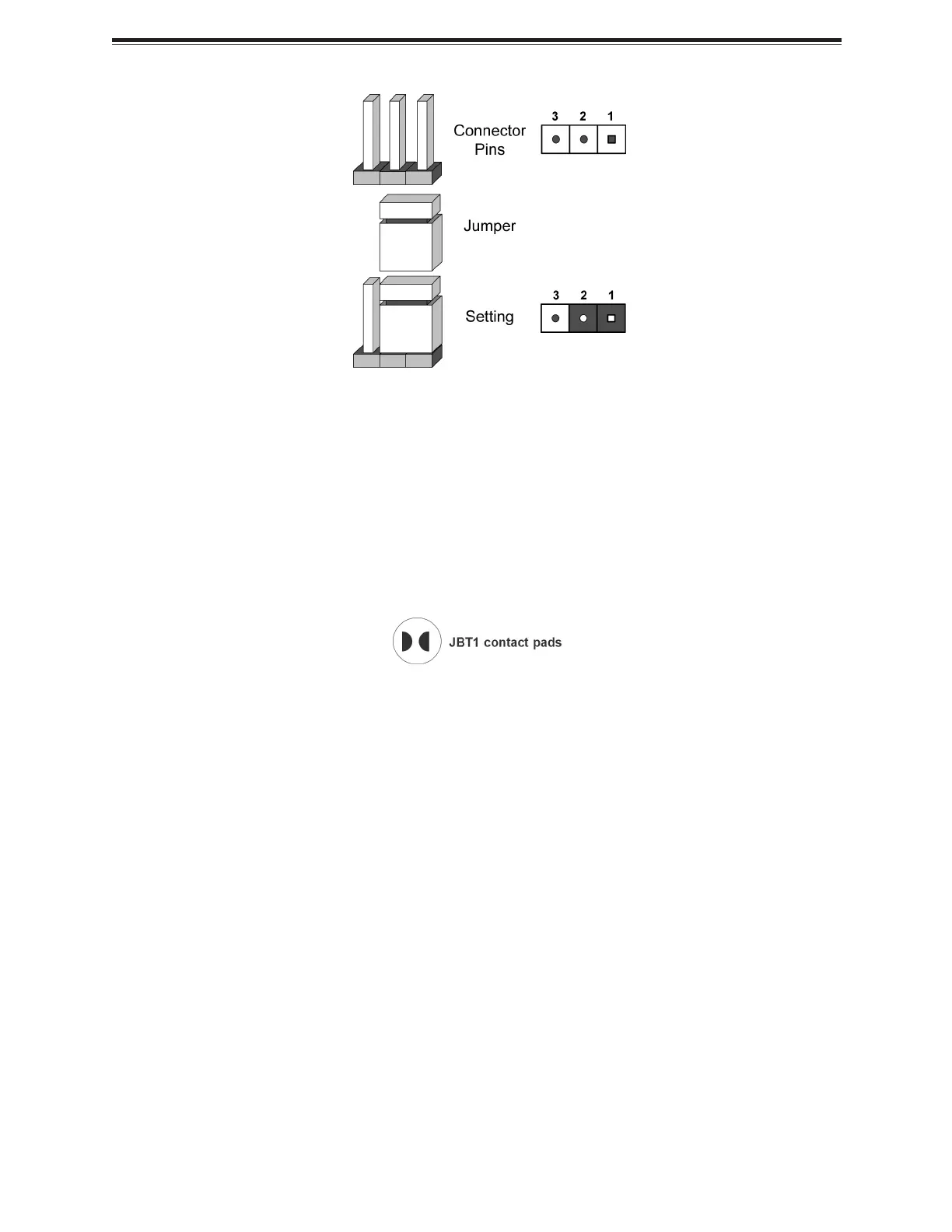

Figure 2-25. Jumping Connector Pins
CMOS Clear
JBT1 on the CARAM5-M motherboard is used to clear CMOS, which will also clear any
passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally
clearing the contents of CMOS.
For a detailed diagram of the CARAM5- M motherboard, see the layout under "Quick
Reference" on page 11.
1. First power down the system and unplug the power cord(s).
2. Remove the cover of the chassis to access the motherboard.
3. Remove the onboard battery from the motherboard.
4. Short the CMOS pads, JBT1, with a metal object such as a small screwdriver for at least
four seconds.
Note: Clearing CMOS will also clear all passwords.
5. Remove the screwdriver (or shorting device).
6. Replace the cover, reconnect the power cord(s), and power on the system.
Watchdog Timer
Watchdog (JWD1) is a system monitor that can reboot the system when a software application
hangs. Close pins 1–2 to reset the system if an application hangs. Close pins 2–3 to generate a
non-maskable interrupt (NMI) signal for the application that hangs. The Watchdog must also be
enabled in the BIOS.
50
CARAM5-M: Component Installation
