Rear Panel USB11 (3.2)
Pin Definitions
Pin# Definition Pin# Definition
7 +5 V 14 GND
8 CC1 13 USB32_TN1
9 X 12 USB32_TP1
10 X 11 +5 V
I/O Ports

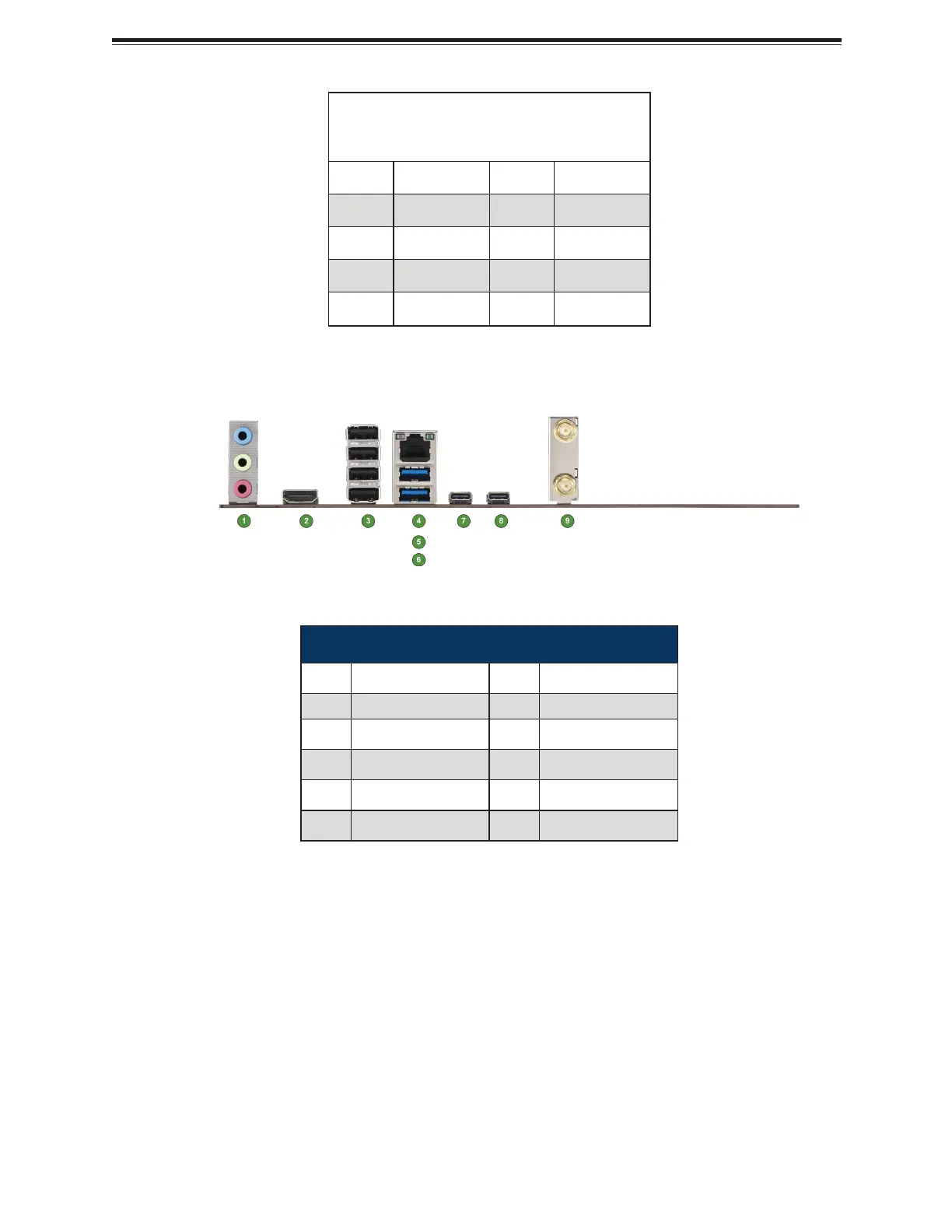

Figure 2-24. CARAM5-M Ports
I/O Ports
# Description # Description
1 Audio Jacks 6 USB 3.2 Gen2 (10 G)
2 HDMI 7 USB 4.0
3 USB 2.0 8 USB 4.0
4 LAN 9 Combo Audio header
5 USB 3.2 Gen2 (10 G)
Jumper Settings
To modify the operation of the motherboard, jumpers can be used to choose between optional
settings. Jumpers create shorts between two pins to change the function of the connector. Pin
1 is identified with a square solder pad on the printed circuit board. See the diagram below for
an example of jumping pins 1 and 2. Refer to the motherboard layout page for jumper locations.
Note: On two-pin jumpers, "Closed" means the jumper is on and "Open" means the jumper
is off the pins.
49
