5 Electrical Connection User Manual
step 5 Seal any unused PV terminal with a terminal cap.
NOTICE
Turn the corresponding DC switch to "ON" after the PV string is connected to the PV
terminal on the inverter.
- - End
5.8 RS485 Connection(COM1)
5.8.1 Interface Description

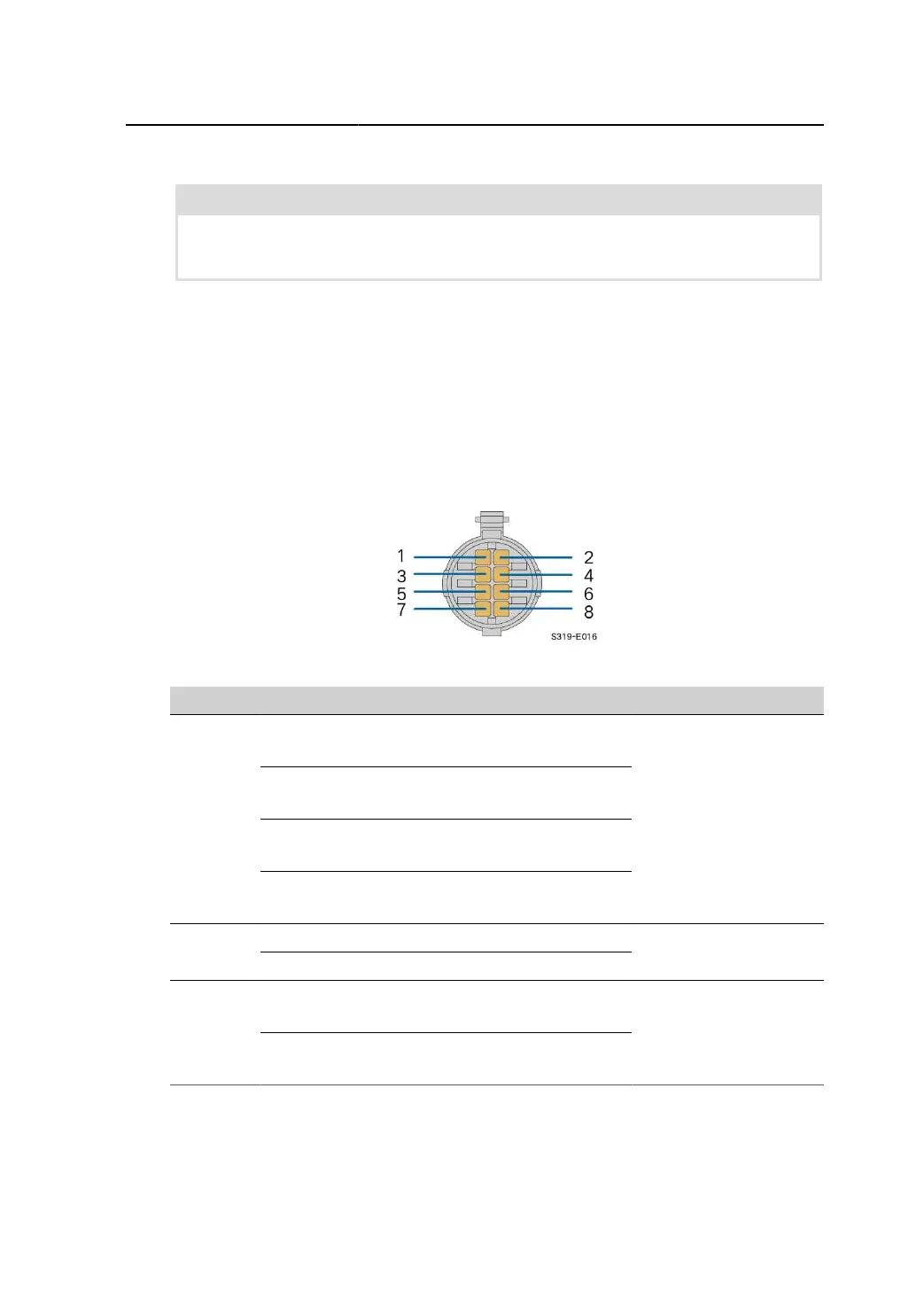

The inverter communication terminal COM1 is located at the bottom of the inverter, as shown
in the figure below.
table 5-2 COM1 Terminal Definition
Port PIN Definition Description
1
RS485A1 , RS485 differential sig
nal+
2
RS485A1 , RS485 differential sig
nal+
3
RS485B1 , RS485 differential sig
nal-
RS485_1
4
RS485B1 , RS485 differential sig
nal-
Used for cascading in
verters or connecting to
devices such as the Data
Logger.
5 PE, shielding ground
PE
6 PE, shielding ground
—
7
RS485A2, RS485 differential sig
nal+
RS485_2
8
RS485B2, RS485 differential sig
nal-
Used for connecting to
communication devices
of the tracking system.
62
