User Manual 5 Electrical Connection
5.8.2 RS485 Communication System

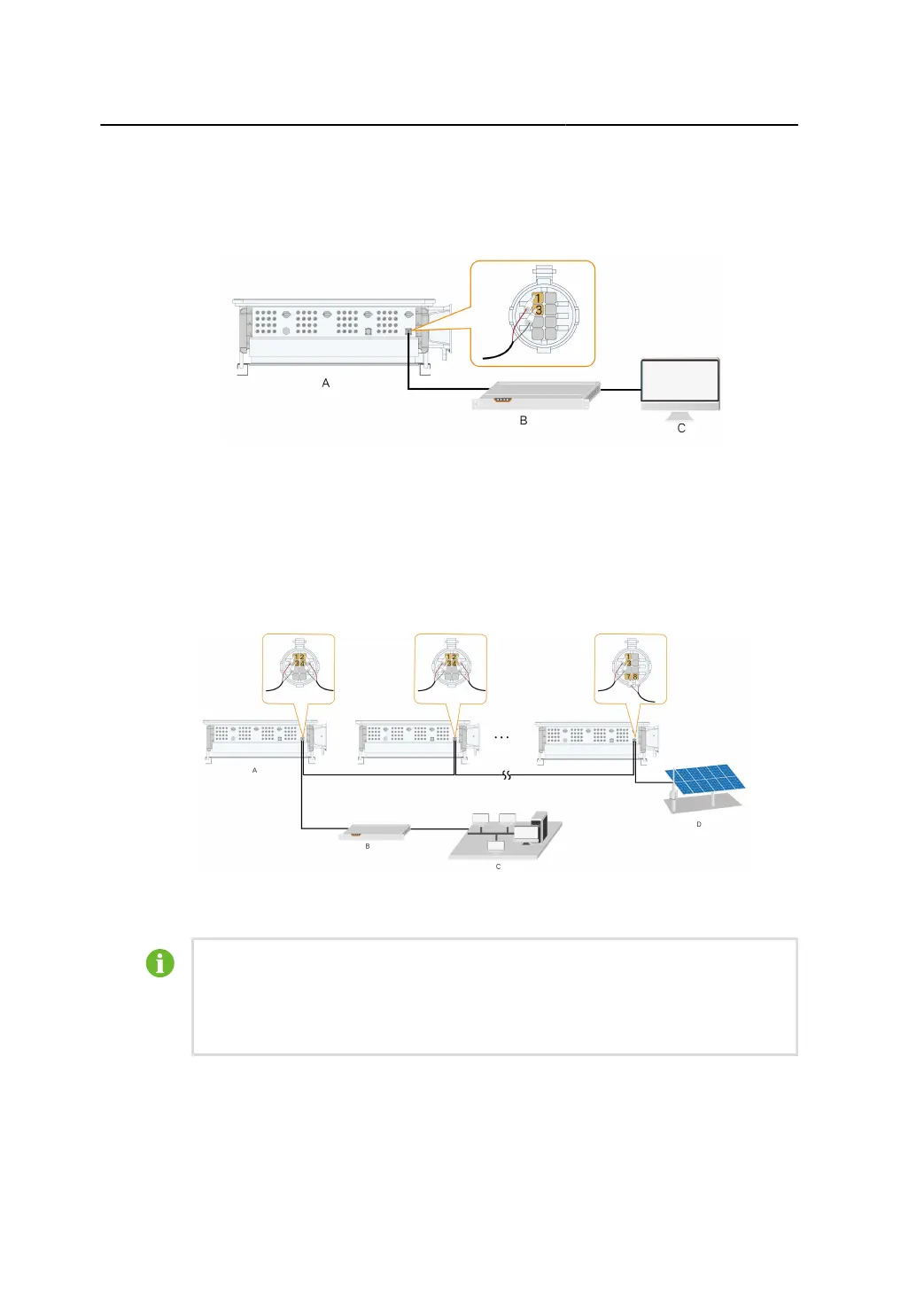

Single-inverter Communication System
In case of a single inverter, communication cable connection requires only one RS485 cable.
(A) Inverter (B) Data Logger (C) PC
Multi-inverter Communication System
In case of multiple inverters, all the inverters can be connected via RS485 cables in the daisy
chain manner. The communication cable of the tracking system can be connected to the port
RS485_2 of any inverter in the daisy chain.
(A) Inverter (B) Data Logger (C) PC (D) Tracking system
The length of the RS485 cable should be no longer than 1,000 m.
If multiple inverters are connected to the data logger, the number of permissible
daisy chains and the number of devices allowed to be connected should meet the
requirements (refer to the user manual of the data logger).
5.8.3 Connection Procedure
63
