User Manual 5 Electrical Connection
• If the number of actual PV strings is less than the number of PV strings that can be con
nected to the inverter, ensure that each MPPT is connected with at least one string.
• Please make sure that the connected PV strings are relatively evenly shared by the MPPTs.
• While performing connection, please give priority to the odd-numbered terminals (PV1,
PV3, PV5, PV7, PV9, PV11, PV13, PV15, PV17, PV19, PV21, PV23, PV25, PV27, PV29,
PV31), which are circled in red in the figure below.

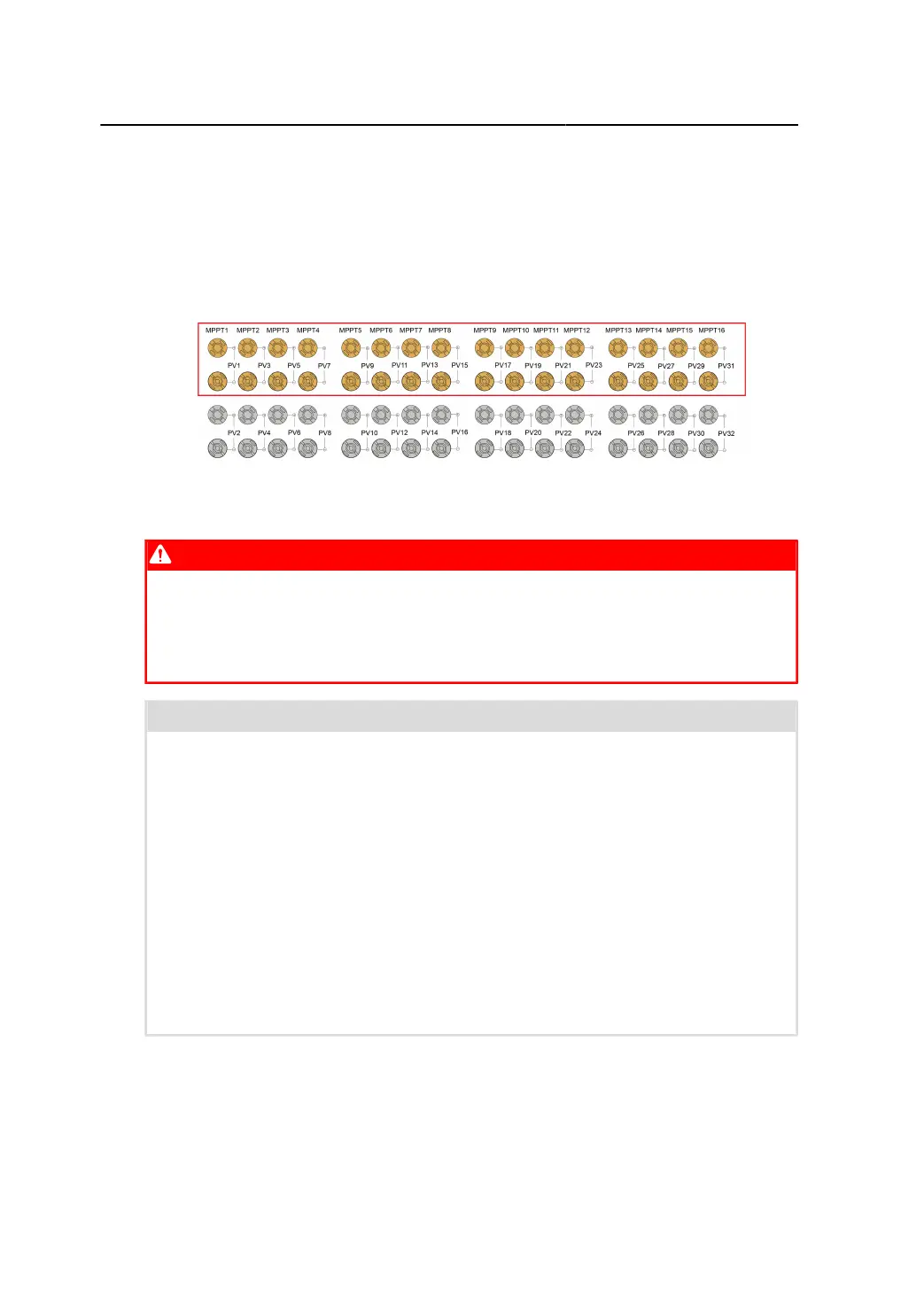

figure 5-4 Terminal connection Description
5.7.2 Assembling PV Connectors
DANGER
High voltage may be present in the inverter!
• Ensure all cables are voltage-free before performing electrical operations.
• Do not connect the AC circuit breaker before finishing electrical connection.
NOTICE
Please use the DC terminal within the scope of delivery or purchase the PV connector
according to the recommended model below. Equipment damage caused by the use
of unmatched terminals is not covered by the warranty.
• If the cross-sectional area of the DC cable is 10 AWG, use the PV connector within
the scope of delivery. The recommended model of the female cable connector is
PV-ADSP4-S2/6-UR (STAUBLI), and the recommended male cable connector is PV-
ADBP4-S2/6-UR (STAUBLI).
• If the cross-sectional area of the DC cable is 8 AWG, please use the PV connector
purchased from STAUBLI. The recommended model of the female cable connector
is PV-ADSP4-S2/6-
UR（STAUBLI）,
and the recommended male cable connector
is PV-ADBP4-S2/6-UR (STAUBLI).
