5 Electrical Connection User Manual
5.7.1 PV Input Configuration
• As shown in the figure below, the inverter is provided with multiple PV inputs, each PV
input is designed with an MPP tracker.
• Each PV input operates independently and has its own MPPT. In this way, string structures
of each PV input may differ from each other, including number of PV modules in each
string, angle of tilt, and installation orientation.
• Each PV input includes two PV strings. In order to fully utilize the input power of PV panels,
the PV strings of each PV input should have the same structure, including the same type,
the same number, the same tilt, and the same orientation.

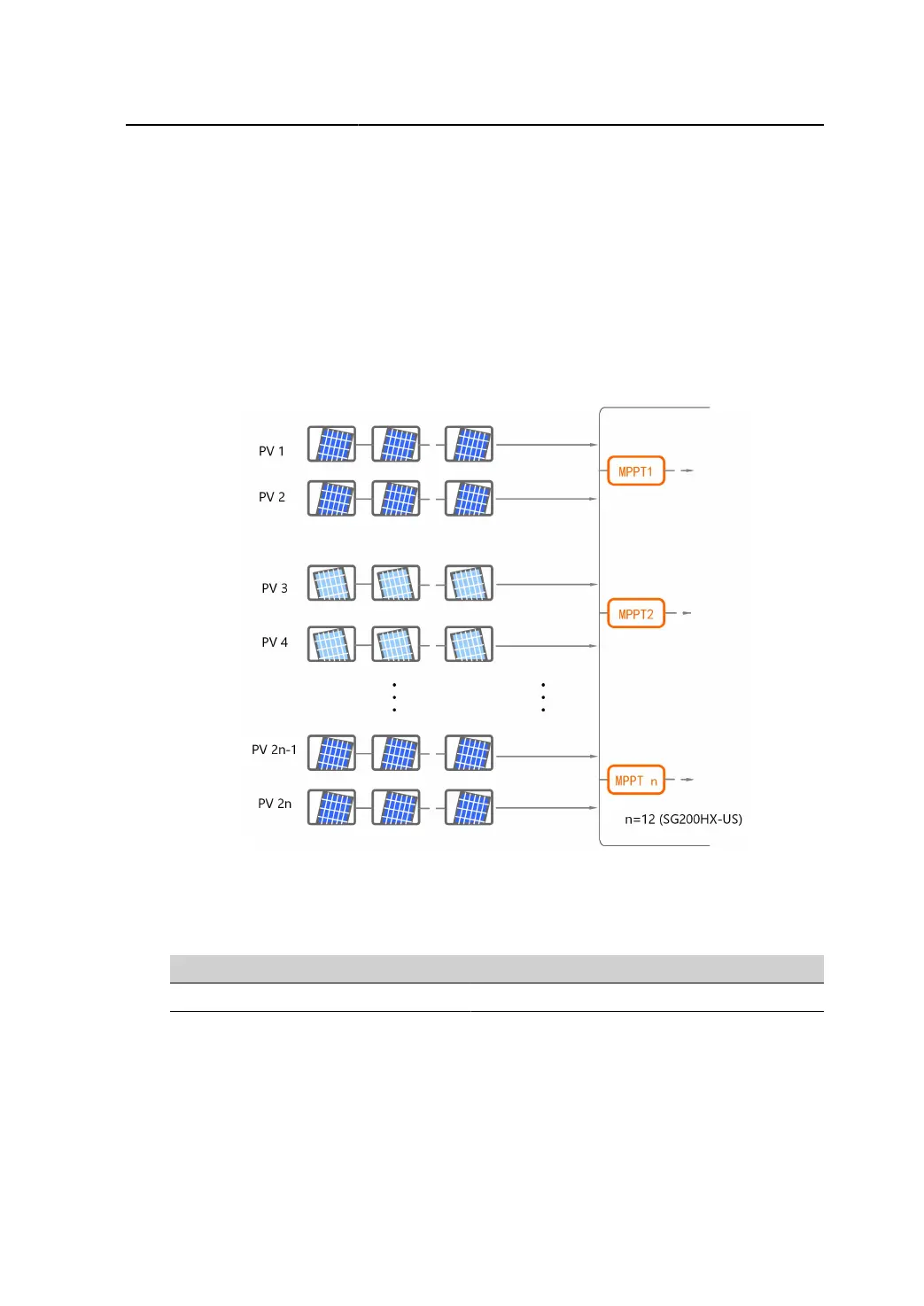

figure 5-3 PV Input Configuratinon
Prior to connecting the inverter to PV inputs, the specifications in the following table should
be met:
Open-circuit Voltage Limit Max. Current for Input Connector
1500 V 30 A
Terminal Configuration Description
Please refer to the following requirements for DC terminal connection:
58
